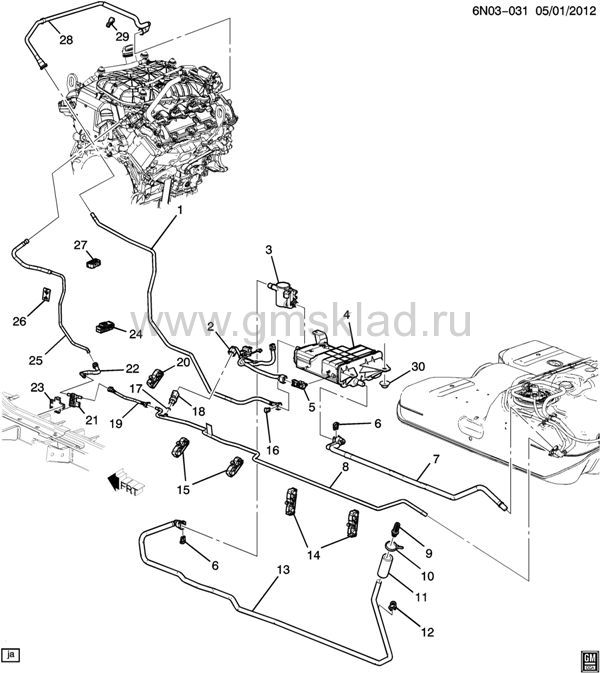

(6N03-031) 2013 N СИСТЕМА ПОДАЧИ ТОПЛИВА (LFX/3.6-3, E85 GASOLINE FHS)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 22764938 | PIPE, EVAP EMIS FRT (INCLS 16) | N (LFX) | 2013-2013 | 01 | | узнать цену | | 001 | 20865552 | PIPE, EVAP EMIS FRT (INCLS 16) | N (LFX, FHO) | 2013-2013 | 01 | | узнать цену | | 002 | 22793001 | HARNESS, FUEL SDR WRG | N (FHS) | 2013-2013 | 01 | | узнать цену | | 002 | 22793001 | HARNESS, FUEL SDR WRG (3.115) | N (FHS) | 2013-2013 | 01 | | узнать цену | | 003 | 13575702 | SOLENOID, EVAP EMIS CNSTR (MUST USE T/W HARN 20922087) (ACDelco #214-2312) | N (FHS, NT7, NU5) | 2013-2013 | 01 | | узнать цену | | 003 | 13575702 | SOLENOID, EVAP EMIS CNSTR (MUST USE T/W HARN 20922087) (ACDelco #214-2312) | N (FHS, NF9) (EXPORT) | 2013-2013 | 01 | | узнать цену | | 004 | 25949888 | CANISTER, EVAP EMIS (W/O VENT VLV SOL) (INCL 5) (ACDelco #215-709) | N (FHS) | 2013-2013 | 01 | | узнать цену | | 005 | 13502903 | SENSOR, F/TNK PRESS (PART OF 4) (ACDelco #13502903) | N | 2013-2013 | 01 | | узнать цену | | 006 | 21992746 | RETAINER, FUEL FEED HOSE CONN (PART OF 7, 13) (5/8 INCH QUICK CONNECT RETAINER CLIP) | N | 2013-2013 | 01 | | узнать цену | | 007 | 25945057 | PIPE, EVAP EMIS RR (INCLS 6) | N | 2013-2013 | 01 | | узнать цену | | 008 | 22764939 | PIPE, FUEL FEED RR | N (LFX) | 2013-2013 | 01 | | узнать цену | | 009 | | SCREEN, F/TNK FIL PIPE (PART OF 13) | | 2013-2013 | | | | | 010 | | STRAP, EVAP EMIS HOSE (PART OF 13) | | 2013-2013 | | | | | 011 | | SLEEVE, EVAP EMIS PIPE (PART OF 13) | | 2013-2013 | | | | | 012 | 25938684 | CLIP, EVAP EMIS CNSTR VENT PIPE | N | 2013-2013 | 01 | | узнать цену | | 013 | 20852704 | HOSE, EVAP EMIS CNSTR AIR INL (INCLS 6, 9-11) (ACDelco #215-697) | N | 2013-2013 | 01 | | узнать цену | | 014 | 25938682 | CLIP, BRK & FUEL FEED & EVAP EMIS PIPE (5 WAY) | N (LFW, LFX) | 2013-2013 | 02 | | узнать цену | | 015 | 25938681 | CLIP, BRK & FUEL FEED & EVAP EMIS PIPE (HOLDS (4) LINES) (W/TREE) | N (LFW, LFX) | 2013-2013 | 02 | | узнать цену | | 016 | | RETAINER, FUEL FEED HOSE CONN (PART OF 1) | | 2013-2013 | | | | | 017 | 15778699 | SEAL, FUEL PRESS SEN (O RING) (ACDelco #15778699) | N (LFW, LFX) | 2013-2013 | 01 | | узнать цену | | 018 | 13579380 | SENSOR, FUEL PRESS (ACDelco #13579380) | N (LFX, LFW) | 2013-2013 | 01 | | узнать цену | | 018 | 13579380 | SENSOR, FUEL PRESS (3.682) (ACDelco #13579380) | N (LFX, LFW) | 2013-2013 | 01 | | узнать цену | | 019 | 22764941 | HOSE, FUEL FEED (RR) | N (LFX) | 2013-2013 | 01 | | узнать цену | | 020 | 25938683 | CLIP, BRK & FUEL FEED & EVAP EMIS PIPE (4 WAY) | N (LFW, LFX) | 2013-2013 | 01 | | узнать цену | | 021 | 13577429 | SENSOR, FLEX FUEL | N (LFX, FHS) | 2013-2013 | 01 | | узнать цену | | 022 | 22764940 | HOSE, FUEL FEED (FRT) | N (LFX) | 2013-2013 | 01 | | узнать цену | | 023 | 11611910 | CLIP, FUEL FEED HOSE | N (LFX, FHS) | 2013-2013 | 01 | | узнать цену | | 024 | 22734194 | CLIP, BRK & FUEL FEED & EVAP EMIS PIPE (HOLDS (2)3/8 & (2)3/16 PIPES TO WELD STUD) (3.162) | N (LFW, LFX) | 2013-2013 | 01 | | узнать цену | | 025 | 22764942 | PIPE, FUEL FEED FRT | N (LFX) | 2013-2013 | 01 | | узнать цену | | 026 | | LABEL, FUEL FEED PIPE WRNG | | 2013-2013 | | | | | 027 | 25938657 | CLIP, FUEL FEED & EVAP EMIS FRT PIPE | N | 2013-2013 | 01 | | узнать цену | | 027 | 25938657 | CLIP, FUEL FEED & EVAP EMIS FRT PIPE (3.162) | N | 2013-2013 | 01 | | узнать цену | | 028 | 12634498 | TUBE, EVAP EMIS CNSTR PURGE (INCLS 29) | N | 2013-2013 | 01 | | узнать цену | | 029 | | CLIP, EVAP EMIS CNSTR PURGE TUBE (PART OF 28) | | 2013-2013 | | | | | 030 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EVAP EMIS CNSTR FLTR BRKT) | | 2013-2013 | 02 | | узнать цену |
|
|
