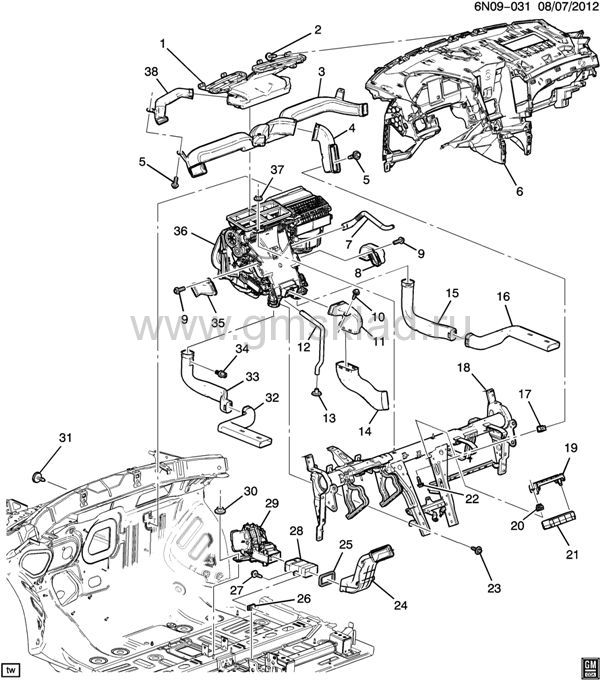

(6N09-031) 2013 N ВОЗДУХОРАСПРЕДЕЛИТЕЛЬНАЯ СИСТЕМА
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 22808950 | DUCT, W/S DEFR NOZ | N | 2013-2013 | 01 | | узнать цену | | 002 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (W/S DEFR NOZ GRL) | | 2013-2013 | 06 | | узнать цену | | 003 | 25879396 | DUCT, AIR DISTR | N | 2013-2013 | 01 | | узнать цену | | 004 | 25876674 | DUCT, AIR DISTR CTR | N | 2013-2013 | 01 | R | узнать цену | | 004 | 25876675 | DUCT, AIR DISTR CTR | N | 2013-2013 | 01 | L | узнать цену | | 005 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (AIR DISTR DUCT) | | 2013-2013 | 04 | | узнать цену | | 006 | 20969313 | CARRIER, I/P (SEE GROUP 10.000 "INSTRUMENT PANEL PART 1 TRIM" FOR DETAILED ILLUSTRATED VIEW) | NG | 2013-2013 | 01 | | узнать цену | | 007 | 20827661 | DUCT, I/P COMPT AIR | N | 2013-2013 | 01 | | узнать цену | | 008 | 15899491 | DUCT, FLR FRT AIR OTLT | N | 2013-2013 | 01 | R | узнать цену | | 009 | 11609829 | BOLT, FLR FRT AIR OTLT DUCT (M4.2X2.25X16) (9.786) | N | 2013-2013 | 03 | | узнать цену | | 010 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (AUX A/C AIR OTLT DUCT) | | 2013-2013 | 01 | | узнать цену | | 011 | 20917604 | DUCT, AUX A/C AIR OTLT (USE T/W 1605396) | N | 2013-2013 | 01 | | узнать цену | | 012 | 22815376 | HOSE, A/C EVPR & BLO MDL DRN | N | 2013-2013 | 01 | | узнать цену | | 013 | 25874761 | DRAIN, A/C EVPR & BLO CASE (ACDelco #15-81091) | N | 2013-2013 | 01 | | узнать цену | | 014 | 20917605 | DUCT, BODY SI AIR OTLT | N (CJ2) | 2013-2013 | 01 | | узнать цену | | 014 | 20917994 | DUCT, BODY SI AIR OTLT | N (CJ4) | 2013-2013 | 01 | | узнать цену | | 015 | 25879392 | DUCT, FLR RR AIR OTLT (FRONT DUCT) | N | 2013-2013 | 01 | R | узнать цену | | 016 | 22818006 | DUCT, FLR RR AIR OTLT (REAR DUCT) | N | 2013-2013 | 01 | R | узнать цену | | 017 | 11518531 | NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (I/P CTR AIR OTLT DUCT) (10.512) | | 2013-2013 | 02 | | узнать цену | | 018 | 22865997 | BAR, I/P TIE (SEE GROUP 10.000 "INSTRUMENT PANEL PART 4 STRUCTURE" FOR DETAILED ILLUSTRATED VIEW) | N (AL0) | 2013-2013 | 01 | | узнать цену | | 018 | 22865998 | BAR, I/P TIE (SEE GROUP 10.000 "INSTRUMENT PANEL PART 4 STRUCTURE" FOR DETAILED ILLUSTRATED VIEW) | N (EXC AL0) | 2013-2013 | 01 | | узнать цену | | 019 | 20777301 | BRACKET, HTR & A/C REM CONT (INCLS 21) | N | 2013-2013 | 01 | | узнать цену | | 020 | 11610157 | NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 20) (10.701) | | 2013-2013 | 02 | | узнать цену | | 021 | 13584350 | CONTROL, HTR & A/C REM (ACDelco #15-24247) (LABELED 13584350) | N (CJ2) | 2013-2013 | 01 | | узнать цену | | 021 | 13585644 | CONTROL, HTR & A/C REM (LABELED 13585644) | N (CJ2) | 2013-2013 | 01 | | узнать цену | | 021 | 13587632 | CONTROL, HTR & A/C REM (ACDelco #15-74297) (LABELED 13587632) | N (CJ4) | 2013-2013 | 01 | | узнать цену | | 021 | 13587633 | CONTROL, HTR & A/C REM (ACDelco #15-74298) (LABELED 13586360 OR 13587633) | N (CJ2) | 2013-2013 | 01 | | узнать цену | | 021 | 13588953 | CONTROL, HTR & A/C REM (LABELED 13588953) | N (CJ4) | 2013-2013 | 01 | | узнать цену | | 021 | 13588954 | CONTROL, HTR & A/C REM (LABELED 13588954) | N (CJ2) | 2013-2013 | 01 | | узнать цену | | 021 | 13589913 | CONTROL, HTR & A/C REM (LABELED 13589913) | N (CJ2) | 2013-2013 | 01 | | узнать цену | | 022 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (HTR & A/C CONT) | | 2013-2013 | 02 | | узнать цену | | 023 | 11588602 | BOLT, HTR & A/C EVPR & BLO MDL (8.845) | N | 2013-2013 | 02 | | узнать цену | | 024 | 20893408 | DUCT, F/FLR CNSL RR AIR (SEE GROUP 10.000 "FLOOR CONSOLE PART 1-LOWER" FOR DETAILED ILLUSTRATED VIEW) | N | 2013-2013 | 01 | | узнать цену | | 025 | | SEAL, F/FLR CNSL FRT AIR DUCT (PART OF 29) | | 2013-2013 | | | | | 026 | 11513599 | NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (AIR DISTR) (ACDelco #11513599) | | 2013-2013 | 02 | | узнать цену | | 027 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (BODY SI AIR OTLT DUCT) | | 2013-2013 | 02 | | узнать цену | | 028 | 15899499 | DUCT, F/FLR CNSL FRT AIR (INCLS 26) | N | 2013-2013 | 01 | | узнать цену | | 029 | | BLOWER, AUX (SEE GROUP 09.000 "AUXILIARY REAR BLOWER ASM (CJ4)" FOR DETAILED ILLUSTRATED VIEW) | | 2013-2013 | | | | | 030 | 11514517 | NUT, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (AUX BLO) | | 2013-2013 | 02 | | узнать цену | | 031 | 15733206 | BOLT, HTR & BLO MDL (M6X2.70X27) | N | 2013-2013 | 01 | | узнать цену | | 032 | 22818005 | DUCT, FLR RR AIR OTLT (REAR DUCT) | N | 2013-2013 | 01 | L | узнать цену | | 033 | 25903971 | DUCT, FLR RR AIR OTLT (DUCT ONLY) | N (CJ4) | 2013-2013 | 01 | L | узнать цену | | 034 | 25917885 | SENSOR, DUCT AIR TEMP (ACDelco #15-51261) | N (CJ4) | 2013-2013 | 01 | | узнать цену | | 035 | 20829885 | DUCT, FLR FRT AIR OTLT | N | 2013-2013 | 01 | L | узнать цену | | 036 | | MODULE, HTR & A/C EVPR & BLO (SEE GROUP 09.000 "A/C & HEATER MODULE ASM" FOR DETAILED ILLUSTRATED VIEW) | | 2013-2013 | | | | | 037 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HTR & A/C EVPR & BLO MDL) | | 2013-2013 | 04 | | узнать цену | | 038 | 15899468 | DUCT, SI WDO DEFG OTLT | N | 2013-2013 | 01 | L | узнать цену | | 038 | 15899469 | DUCT, SI WDO DEFG OTLT | N | 2013-2013 | 01 | R | узнать цену |
|
|
