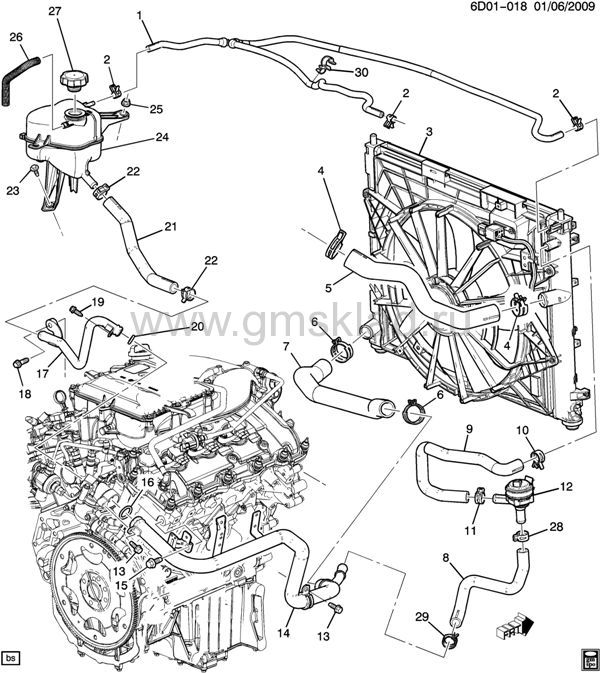

(6D01-018) 2011 DW29 ШЛАНГИ И ТРУБКИ РАДИАТОРА (LLT/3.6D)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25800336 | HOSE, RAD SURGE TK INL | DW29 (LLT) | 2009-2011 | 01 | | узнать цену | | 002 | 11571098 | CLAMP, SPRINGBAND, 14MM NOMINAL DIA, 15MM WIDTH, STL PER GM6298M, GMW140 (RAD SURGE TK INL HOSE) | | 2009-2011 | 03 | | узнать цену | | 003 | 19130356 | RADIATOR, (SEE GROUP 01.000 "RADIATOR" FOR DETAILED ILLUSTRATED VIEW) (ACDelco #21700) | DW29 (LLT, V03) | 2009-2011 | 01 | | узнать цену | | 003 | 19130357 | RADIATOR, (SEE GROUP 01.000 "RADIATOR" FOR DETAILED ILLUSTRATED VIEW) (ACDelco #21701) | DW29 (LLT) (EXC V03) | 2010-2011 | 01 | | узнать цену | | 004 | 11570613 | CLAMP, SPRINGBAND, 48 NOMINAL DIA, 15 THK, STL, ROBO W/T-CLIP. (RAD INL HOSE) | | 2009-2011 | 02 | | узнать цену | | 005 | 25800333 | HOSE, RAD INL | DW (LLT, JJB) | 2009-2011 | 01 | | узнать цену | | 006 | 11570618 | CLAMP, SPRINGBAND, 42 NOMINAL DIA, 20 THK, STL, ROBO (RAD OTLT HOSE) | | 2009-2011 | 02 | | узнать цену | | 007 | 25800334 | HOSE, RAD OTLT | DW (LLT, JJB) | 2010-2011 | 01 | | узнать цену | | 008 | 25881831 | HOSE, AUX W/PMP INL | DW (LLT, JJB) | 2009-2011 | 01 | | узнать цену | | 009 | 25881832 | HOSE, AUX W/PMP OTLT | DW (LLT, JJB) | 2009-2011 | 01 | | узнать цену | | 010 | 11570616 | CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (AUX W/PMP OTLT HOSE) | | 2009-2011 | 01 | | узнать цену | | 011 | 11570615 | CLAMP, HOSE SPRINGBAND, 26 NOMINAL DIA, 15 THK, STL, ROBO (AUX W/PMP INL HOSE) | | 2009-2011 | 01 | | узнать цену | | 012 | 25808860 | PUMP, AUX WAT (W/O HOSE) (ACDelco #251-721) | DW (LLT) | 2011-2011 | 01 | | узнать цену | | 013 | 11519977 | BOLT, HFH, M8X1.25X25, 16 THD, 18 OD, 8.8, GMW3359, MAT-PT. (RAD OTLT PIPE) | | 2009-2011 | 02 | | узнать цену | | 014 | 12612858 | PIPE, RAD OTLT (INCLS 16) | DW (LLT, JJB) | 2010-2011 | 01 | | узнать цену | | 015 | 11518624 | BOLT, HFH, M10X1.5X30.4, 22.5 THD, 22.3 O.D., 10.9, GMW3359 (RAD OTLT PIPE) | | 2009-2011 | 01 | | узнать цену | | 016 | 12623519 | SEAL, RAD OTLT PIPE (O RING) (PART OF 14) (ACDelco #12623519) | DW (LLT) | 2010-2011 | 01 | | узнать цену | | 017 | 12633398 | PIPE, RAD SURGE TK OTLT (INCLS 20) | DW (LLT) | 2011-2011 | 01 | | узнать цену | | 018 | 11588740 | BOLT, HFH, M10X1.5X40, 30 THD, 22.3 OD, 10.9, GMW3359, M-PT (RAD SURGE TK OTLT PIPE) (ACDelco #11588740) | | 2009-2011 | 01 | | узнать цену | | 019 | 11588712 | BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (RAD SURGE TK OTLT PIPE) | | 2009-2011 | 01 | | узнать цену | | 020 | 12623461 | SEAL, RAD SURGE TK OTLT PIPE (O RING) (PART OF 17) (8.846) (ACDelco #12623461) | D | 2009-2011 | 01 | | узнать цену | | 021 | 25942705 | HOSE, RAD SURGE TK ENG (407MM LONG) | DW29 (LLT) | 2010-2011 | 01 | | узнать цену | | 022 | 11570615 | CLAMP, HOSE SPRINGBAND, 26 NOMINAL DIA, 15 THK, STL, ROBO (RAD SURGE TK ENG HOSE) | | 2009-2011 | 02 | | узнать цену | | 023 | 11610055 | BOLT, HWASH, M6X1X23 (RAD SURGE TK) | | 2009-2011 | 01 | | узнать цену | | 024 | 15882261 | TANK, RAD SURGE (INCLS 26) (ACDelco #15882261) | DW29 | 2009-2011 | 01 | | узнать цену | | 025 | 11514517 | NUT, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (RAD SURGE TK) | | 2009-2011 | 01 | | узнать цену | | 026 | 25757865 | HOSE, RAD SURGE TK OVFL (PART OF 24) | D29 | 2009-2011 | 01 | | узнать цену | | 027 | 20898801 | CAP, RAD SURGE TK (GRAPHIC LABEL) | DW29 | 2010-2011 | 01 | | узнать цену | | 028 | 11570615 | CLAMP, HOSE SPRINGBAND, 26 NOMINAL DIA, 15 THK, STL, ROBO (AUX W/PMP OTLT HOSE) | | 2009-2011 | 01 | | узнать цену | | 029 | 11570616 | CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (AUX W/PMP INL HOSE) | | 2009-2011 | 01 | | узнать цену | | 030 | 15034183 | CLIP, RAD SURGE TK INL HOSE (2.251) | D | 2009-2011 | 01 | | узнать цену |
|
|
