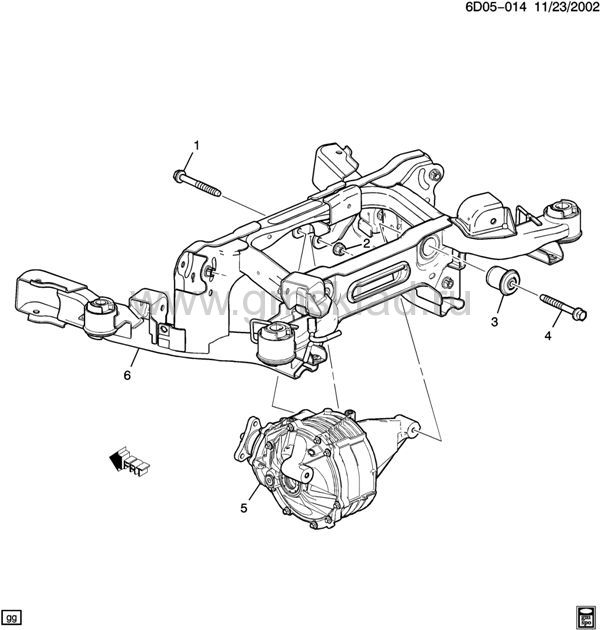

(6D05-014) 2005-2011 D29 КРЕПЛЕНИЕ КОРПУСА ДИФФЕРЕНЦИАЛА
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | 11519150 | BOLT, DIFF CARR FRT (M14X2X100, 34THD) (30.5OD) (5.383) | D29 | 2005-2011 | 01 | узнать цену | |
| 002 | 11516382 | NUT, DIFF CARR FRT (M14X2X15, 28OD) (W/O J CLIP RETAINER) (8.917) | D29 | 2005-2011 | 01 | узнать цену | |
| 003 | BUSHING, RR SUSP SUPT (PART OF 6) | 2005-2011 | |||||
| 004 | 11519079 | BOLT, DIFF CARR RR (M14X2X130, 71THD) (8.900) | D29 | 2005-2011 | 02 | узнать цену | |
| 005 | DIFFERENTIAL, (SEE GROUP 05.000 "DIFFERENTIAL CARRIER" FOR DETAILED ILLUSTRATED VIEW) | 2005-2011 | |||||
| 006 | SUPPORT, RR SUSP (INCLS 3) (SEE GROUP 07.000 "SUSPENSION/REAR" FOR DETAILED ILLUSTRATED VIEW) | 2005-2011 |
