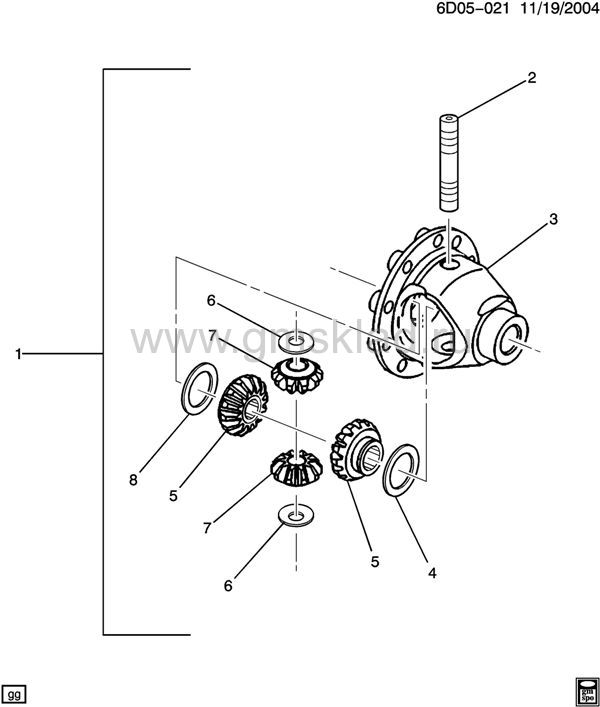

(6D05-021) 2010-2011 DW29 КОРПУС ДИФФЕРЕНЦИАЛА PART 2 (EXC (G80))
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | DIFFERENTIAL, (SEE GROUP 05.000 "DIFFERENTIAL CARRIER" FOR DETAILED ILLUSTRATED VIEW) | 2010-2011 | |||||
| 002 | SHAFT, DIFF P/GR | 2010-2011 | |||||
| 003 | CASE, DIFF | 2010-2011 | |||||
| 004 | WASHER, DIFF SI GR THR | 2010-2011 | |||||
| 005 | GEAR, DIFF SI | 2010-2011 | |||||
| 006 | WASHER, DIFF P/GR THR | 2010-2011 | |||||
| 007 | GEAR, DIFF PINION | 2010-2011 | |||||
| 008 | WASHER, DIFF SI GR THR | 2010-2011 |
