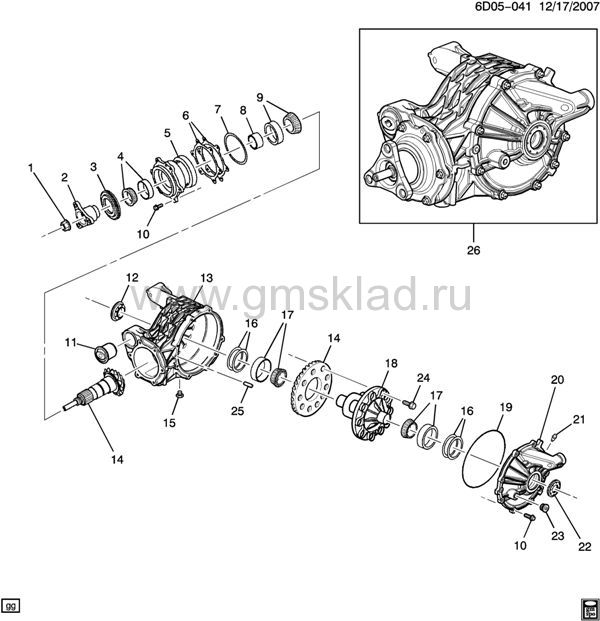

(6D05-041) 2010-2011 DW29 КОРПУС ДИФФЕРЕНЦИАЛА PART 1
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 89058614 | NUT, DIFF DRV P/GR | DW | 2011-2011 | 01 | | узнать цену | | 002 | 25861285 | FLANGE, RR WHL DRV SHF | DW | 2008-2011 | 01 | | узнать цену | | 003 | 25861283 | SEAL, DIFF DRV P/GR | D | 2008-2011 | 01 | | узнать цену | | 004 | | BEARING, FRT DIFF DRV P/GR INR (PART OF 5) | | 2010-2011 | | | | | 005 | | HOUSING, DIFF DRV P/GR BRG (INCLS 4, 8, 9)) | | 2011-2011 | | | | | 007 | 88984427 | SEAL, DIFF DRV P/GR (O RING) | DW (GU5, JJM, G80, MX0) | 2009-2011 | 01 | | узнать цену | | 007 | 88984427 | SEAL, DIFF DRV P/GR (O RING) | DW (LH2, GU5, JJM, G80, MX0) | 2009-2011 | 01 | | узнать цену | | 007 | 88984427 | SEAL, DIFF DRV P/GR (O RING) | DW (LLT, GU5, JJM, G80, MX0) | 2009-2011 | 01 | | узнать цену | | 007 | 88984427 | SEAL, DIFF DRV P/GR (O RING) | DW (MYB, GU5) (EXC G80) | 2009-2011 | 01 | | узнать цену | | 007 | 88984427 | SEAL, DIFF DRV P/GR (O RING) | DW (GU2, MX0) (EXC G80) | 2009-2011 | 01 | | узнать цену | | 008 | | SPACER, DIFF DRV P/GR BRG (PART OF 5) | | 2010-2011 | | | | | 009 | | BEARING, DIFF DRV P/GR INR (PART OF 5) | | 2010-2011 | | | | | 010 | 89058602 | BOLT, DIFF CARR CVR (M8X1.25X30, 24THD) (FLANGE HEAD) (17OD) (5.476) | D | 2008-2011 | 14 | | узнать цену | | 011 | 89058605 | BUSHING, DIFF CARR SUPT (BUSHING W/METAL SLEEVE) | D29 (MYB, MX0) | 2008-2011 | 01 | | узнать цену | | 012 | 25968537 | SEAL, R/AXL SHF (ACDelco #291-331) | DW (MYB, GU5) (EXC G80) | 2009-2011 | 02 | | узнать цену | | 012 | 25968537 | SEAL, R/AXL SHF (ACDelco #291-331) | DW (MYB, MX7) (EXC G80) | 2009-2011 | 02 | | узнать цену | | 012 | 25968537 | SEAL, R/AXL SHF (ACDelco #291-331) | DW (LLT, GU5, G80, MX0) | 2009-2011 | 02 | | узнать цену | | 013 | | CARRIER, DIFF | | 2010-2011 | | | | | 014 | | GEAR SET, DIFF RING & DRV PINION | | 2010-2011 | | | | | 015 | | PLUG, R/AXL HSG MAG DRN | | 2010-2011 | | | | | 018 | | DIFFERENTIAL, (SEE GROUP 05.000 "DIFFERENTIAL CARRIER PART 2" FOR DETAILED ILLUSTRATED VIEW) (5.505) | | 2008-2011 | | | | | 019 | 89058617 | SEAL, DIFF CARR CVR | D29 | 2008-2011 | 01 | | узнать цену | | 020 | | COVER, DIFF CARR | | 2009-2011 | | | | | 021 | | VENT, R/AXL HSG | | 2010-2011 | | | | | 022 | 25968537 | SEAL, R/AXL SHF (ACDelco #291-331) | DW (MYB, GU5) (EXC G80) | 2009-2011 | 02 | | узнать цену | | 022 | 25968537 | SEAL, R/AXL SHF (ACDelco #291-331) | DW (MYB, MX7) (EXC G80) | 2009-2011 | 02 | | узнать цену | | 022 | 25968537 | SEAL, R/AXL SHF (ACDelco #291-331) | DW (LLT, GU5, G80, MX0) | 2009-2011 | 02 | | узнать цену | | 023 | 19256068 | PLUG, DIFF CARR FILL (M20X1.5X16) | D | 2010-2011 | 01 | | узнать цену | | 024 | 89048225 | BOLT, RR DIFF R/GR (M12 X 25 MM) | DW | 2008-2011 | 10 | | узнать цену | | 025 | | PIN, DIFF CARR LOC | | 2009-2011 | | | | | 026 | 25978161 | CARRIER, DIFF (3.23 RATIO) (INCLS 1-25) (ALSO NEED TO ORDER R/AXLE HSG VENT 19132947 WHEN ORDERING DIFF CARRIER) | DW (MYB, GU5) (EXC G80) | 2008-2011 | 01 | | узнать цену | | 026 | 25978162 | CARRIER, DIFF (3.23 RATIO) (INCLS 1-25) | DW (LLT, GU5, G80, MX0) | 2009-2011 | 01 | | узнать цену |
|
|
