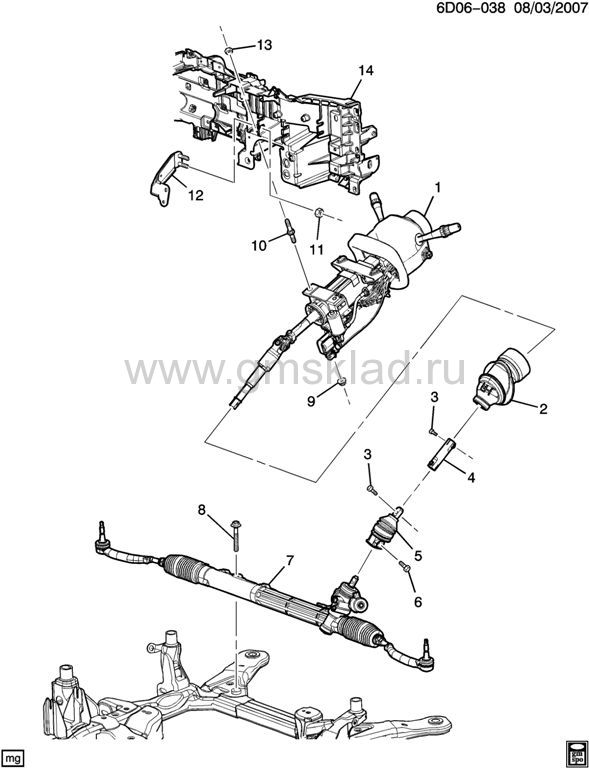

(6D06-038) 2011 DW29 СИСТЕМА РУЛЕВОГО УПРАВЛЕНИЯ И СВЯЗАННЫЕ ДЕТАЛИ
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | | COLUMN, STRG (SEE GROUP 06.000 "STEERING COLUMN" FOR DETAILED ILLUSTRATED VIEW) (EBONY) | | 2005-2011 | | | | | 002 | 25722858 | SEAL, INTER STRG SHF UPR | DW | 2010-2011 | 01 | | узнать цену | | 003 | 11610011 | BOLT, INTER STRG SHF (M8X1.25X31, 17THD) | D | 2008-2011 | 02 | | узнать цену | | 004 | 25741931 | COUPLING, INTER STRG SHF (6.524) | DW29 | 2005-2011 | 01 | | узнать цену | | 005 | 25767302 | SHAFT, LWR INTER STRG | DW | 2011-2011 | 01 | | узнать цену | | 006 | 11518143 | BOLT, INTER STRG SHF LWR (M10X1.5X38, 14.5THD) (8.900) | D | 2005-2011 | 01 | | узнать цену | | 007 | | GEAR, STRG (SEE GROUP 06.000 "STEERING GEAR" FOR DETAILED ILLUSTRATED VIEW) | | 2005-2011 | | | | | 008 | 11589135 | BOLT, HFH, W/ADH, M12X1.75X85, 60 THD, 31 O.D., 10.9, 7114M (S/GR) | | 2005-2011 | 02 | | узнать цену | | 009 | | NUT, STRG COL UPR SUPT | | 2008-2011 | | | | | 009 | 11514602 | NUT, HEX, M8X1.25, 6.8THK, 13 O.D., 10, ZF (STRG COL UPR SUPT) | | 2008-2011 | 02 | | узнать цену | | 009 | 14038397 | WASHER, M8.9X20.4X2.5 ST CAD/ZP (7347) (STRG COL UPR SUPT) | | 2005-2011 | 02 | | узнать цену | | 010 | | STUD, STRG COL (PART OF 14) | | 2011-2011 | | | | | 011 | 11514519 | NUT, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (STRG COL SUPT BRKT) | | 2005-2011 | 02 | | узнать цену | | 012 | 25737925 | BRACKET, STRG COL SUPT (COMPLETE ASM) | DW29 | 2010-2011 | 01 | | узнать цену | | 013 | 25606907 | NUT, STRG COL (PART OF 14) (M8X1.25, 7.1THK) (SQUARE) (SUPT BRKT NUT) (6.760) | DW | 2010-2011 | 04 | | узнать цену | | 014 | | CARRIER, I/P (SEE GROUP 10.000 "INSTRUMENT PANEL" FOR DETAILED ILLUSTRATED VIEW) (INCLS 10, 13) | | 2005-2011 | | | |
|
|
