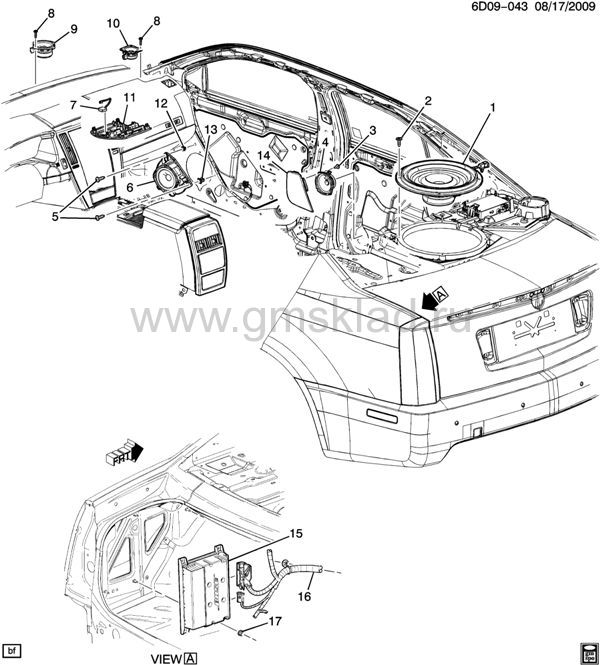

(6D09-043) 2005-2011 D29 АУДИОСИСТЕМА/ДИНАМИКИ И УСИЛИТЕЛЬ (UX8)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25725734 | SPEAKER, RDO RR (ACDelco #25725734) | DW (UX8, YQ1, YQ2) | 2010-2011 | 01 | | узнать цену | | 002 | 11508765 | SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RDO RR SPKR) | | 2005-2011 | 04 | | узнать цену | | 003 | 11509231 | SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (RDO RR S/D SPKR) | | 2005-2011 | 04 | | узнать цену | | 004 | 25725733 | SPEAKER, RDO RR S/D (ACDelco #25725733) | D29 | 2005-2011 | 02 | | узнать цену | | 005 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO FRT SPKR) | | 2005-2011 | 06 | | узнать цену | | 006 | 25725739 | SPEAKER, RDO FRT S/D (ACDelco #25725739) | DW (UX8) | 2010-2011 | 01 | L | узнать цену | | 006 | 25752204 | SPEAKER, RDO FRT S/D (ACDelco #25752204) | DW (UX8) | 2010-2011 | 01 | R | узнать цену | | 007 | 15246939 | MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 11) (RDO VOL COMP) | DW29 (TQ5) | 2010-2011 | 01 | | узнать цену | | 007 | 15240415 | MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 11) | DW29 (CF5) (EXC W21, TQ5) | 2011-2011 | 01 | | узнать цену | | 008 | 11515196 | SCREW, RND WA HD, M4.2X1.41X16, HILO SELF- TAP, 8.2 O.D., 6010M, NO (RDO FRT SPKR) | | 2005-2011 | 04 | | узнать цену | | 009 | 25798963 | SPEAKER, RDO FRT CTR (3.5") (ACDelco #25798963) | DW29 (UX8, UY5) | 2010-2011 | 01 | | узнать цену | | 010 | 25725728 | SPEAKER, RDO FRT (ACDelco #25725728) | DW (UX8) | 2009-2011 | 02 | | узнать цену | | 011 | | CONSOLE, RF (INCLS 7) (SEE GROUP 10.000 "ROOF TRIM/INTERIOR" FOR DETAILED ILLUSTRATED VIEW) | | 2005-2011 | | | | | 012 | 25645757 | NUT, RDO FRT S/D SPKR (EBONY) (20MM SQUARE, 16MM THK) (FITS 9.8MM HOLE) | DW (UX8, UY5) | 2010-2011 | 04 | | узнать цену | | 013 | 25665738 | NUT, RDO FRT S/D SPKR (12MM SQ X 16.7MMDP) (NYLON) | DW29 (UX8, UY5) | 2011-2011 | 02 | | узнать цену | | 014 | | TRIM, RR S/D (SEE GROUP 14.000 "TRIM/RR DOOR" FOR DETAILED ILLUSTRATED VIEW) | | 2005-2011 | | | | | 015 | 25954813 | AMPLIFIER, RDO SPKR (ACDelco #25954813) (LABELED 25954813) | D29 (UX8) | 2005-2011 | 01 | | узнать цену | | 016 | | HARNESS, BODY WRG (SEE GROUP 02.000 "WIRING HARNESS/BODY" FOR DETAILED ILLUSTRATED VIEW) | | 2005-2011 | | | | | 017 | 03530297 | NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (RDO SPKR AMPF) | | 2005-2011 | 03 | | узнать цену |
|
|
