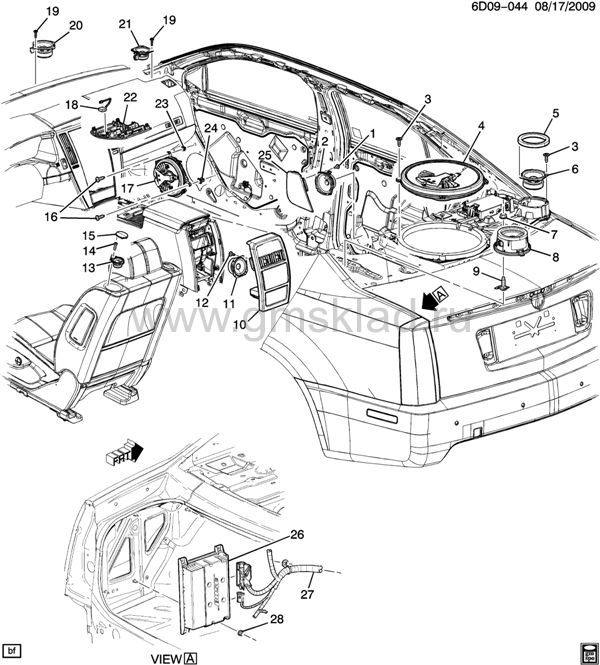

(6D09-044) 2005-2011 D29 АУДИОСИСТЕМА/ДИНАМИКИ И УСИЛИТЕЛЬ (UY5)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 11509231 | SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (RDO RR S/D SPKR) | | 2005-2011 | 04 | | узнать цену | | 002 | 25725733 | SPEAKER, RDO RR S/D (ACDelco #25725733) | D29 | 2005-2011 | 02 | | узнать цену | | 003 | 11508765 | SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RDO RR SPKR) | | 2005-2011 | 07 | | узнать цену | | 004 | 25725735 | SPEAKER, RDO RR (ACDelco #25725735) | DW (UY5, U2K, YQ4, YQ6) | 2010-2011 | 01 | | узнать цену | | 005 | | INSULATOR, RDO RR SPKR | | 2005-2011 | | | | | 006 | 25798963 | SPEAKER, RDO RR (3.5") (ACDelco #25798963) | DW29 (UY5, YQ4, YQ6) | 2011-2011 | 01 | | узнать цену | | 007 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RDO RR SPKR) | | 2005-2011 | 01 | | узнать цену | | 008 | 25798962 | SPEAKER, RDO RR (ACDelco #25798962) | DW (UY5) | 2010-2011 | 01 | | узнать цену | | 009 | 11517641 | STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (COMMUNICATION INTERFACE MDL) | | 2005-2011 | 01 | | узнать цену | | 010 | | COVER, F/FLR CNSL RR (SEE GROUP 10.000 "CONSOLE/FLOOR" FOR DETAILED ILLUSTRATED VIEW) | | 2005-2011 | | | | | 011 | 25798963 | SPEAKER, RDO F/FLR CNSL (3.5") (ACDelco #25798963) | DW29 (UY5, YQ6, YQ4) | 2011-2011 | 01 | | узнать цену | | 012 | 11516644 | SCREW, RD HD, 4.2X1.41X16, 11.3O.D., DRILL PT, HILO C/R, 6138M (RDO F/FLR CNSL SPKR) | | 2005-2011 | 04 | | узнать цену | | 013 | 25773787 | SPEAKER, P/SEAT H/RST | DW29 | 2008-2011 | 02 | | узнать цену | | 013 | 25773787 | SPEAKER, D/SEAT H/RST | DW29 | 2005-2011 | 02 | | узнать цену | | 014 | 11519849 | SCREW, PAN HD W/FLAT WA, M4.2X1.41X20, 8.15 O.D., ABHL PT, STL, 6138M (D/SEAT H/RST SPKR HSG) | | 2005-2011 | 04 | | узнать цену | | 014 | 11519849 | SCREW, PAN HD W/FLAT WA, M4.2X1.41X20, 8.15 O.D., ABHL PT, STL, 6138M (P/SEAT H/RST SPKR HSG) | | 2005-2011 | 04 | | узнать цену | | 015 | | GRILLE, D/SEAT H/RST SPKR (SEE GROUP 14.000 "SEAT ASM/DRIVER" FOR DETAILED ILLUSTRATED VIEW) | | 2005-2011 | | | | | 015 | | GRILLE, P/SEAT H/RST SPKR (SEE GROUP 14.000 "SEAT ASM/PASSENGER" FOR DETAILED ILLUSTRATED VIEW) | | 2005-2011 | | | | | 016 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO) | | 2005-2011 | 06 | | узнать цену | | 017 | 25725730 | SPEAKER, RDO FRT S/D (ACDelco #25725730) | DW (UY5) | 2010-2011 | 01 | R | узнать цену | | 017 | 25725731 | SPEAKER, RDO FRT S/D (ACDelco #25725731) | DW (UY5) | 2010-2011 | 01 | L | узнать цену | | 018 | 15246939 | MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 22) (RDO VOL COMP) | DW29 (TQ5) | 2010-2011 | 01 | | узнать цену | | 018 | 15240415 | MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 22) | DW29 (CF5) (EXC W21, TQ5) | 2011-2011 | 01 | | узнать цену | | 019 | 11515196 | SCREW, RND WA HD, M4.2X1.41X16, HILO SELF- TAP, 8.2 O.D., 6010M, NO (RDO FRT SPKR) | | 2005-2011 | 04 | | узнать цену | | 020 | 25798963 | SPEAKER, RDO FRT CTR (3.5") (ACDelco #25798963) | DW29 (UX8, UY5) | 2010-2011 | 01 | | узнать цену | | 021 | 25725729 | SPEAKER, RDO FRT (ACDelco #25725729) | DW (UY5) | 2010-2011 | 02 | | узнать цену | | 022 | | CONSOLE, RF (INCLS 18) (SEE GROUP 10.000 "ROOF TRIM/INTERIOR" FOR DETAILED ILLUSTRATED VIEW) | | 2005-2011 | | | | | 023 | 25645757 | NUT, RDO FRT S/D SPKR (EBONY) (20MM SQUARE, 16MM THK) (FITS 9.8MM HOLE) | DW (UX8, UY5) | 2010-2011 | 04 | | узнать цену | | 024 | 25665738 | NUT, RDO FRT S/D SPKR (12MM SQ X 16.7MMDP) (NYLON) | DW29 (UX8, UY5) | 2011-2011 | 02 | | узнать цену | | 025 | | TRIM, RR S/D (SEE GROUP 14.000 "TRIM/REAR DOOR" FOR DETAILED ILLUSTRATED VIEW) | | 2005-2011 | | | | | 026 | 25954814 | AMPLIFIER, RDO SPKR (ACDelco #25954814) (LABELED 25810311, 15856207.) | D29 (UY5) | 2005-2011 | 01 | | узнать цену | | 027 | | HARNESS, BODY WRG (SEE GROUP 02.000 "WIRING HARNESS/BODY" FOR DETAILED ILLUSTRATED VIEW) | | 2005-2011 | | | | | 028 | 03530297 | NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (RDO SPKR AMPF) | | 2005-2011 | 03 | | узнать цену |
|
|
