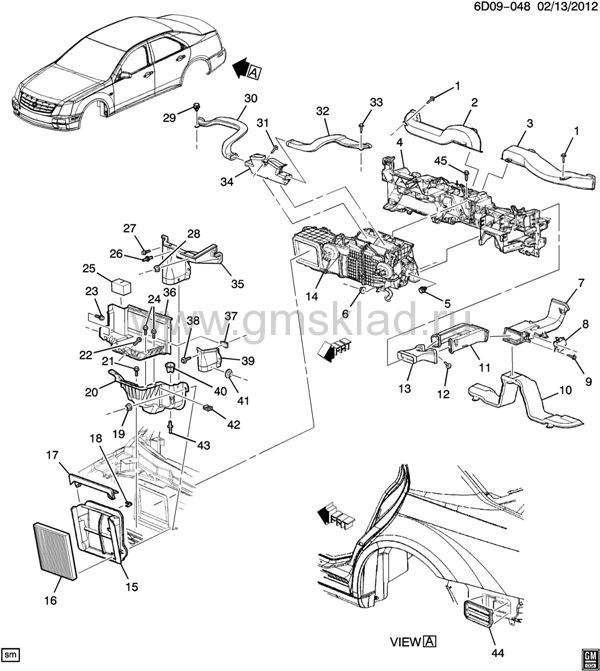

(6D09-048) 2010-2011 DW29 ВОЗДУХОРАСПРЕДЕЛИТЕЛЬНАЯ СИСТЕМА
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (AIR DISTR DUCT) | | 2005-2011 | 06 | | узнать цену | | 002 | 25726432 | DUCT, AIR DISTR | DW29 | 2008-2011 | 01 | R | узнать цену | | 003 | 25726431 | DUCT, AIR DISTR | DW29 | 2008-2011 | 01 | L | узнать цену | | 004 | | CARRIER, INST PNL (SEE GROUP 10.000 "INSTRUMENT PANEL ASM" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2011 | | | | | 005 | 11589289 | RETAINER, PUSH-IN, FITS 6.5 HOLE, 2-4.5 THK PNL, NYLON 6/6 PER GMP.PA66.0 (AIR DISTR DUCT) | | 2005-2011 | 02 | | узнать цену | | 006 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HTR & A/C EVPR & BLO MDL) | | 2005-2011 | 02 | | узнать цену | | 007 | 89023396 | DUCT, AIR DISTR | D29 | 2005-2011 | 01 | | узнать цену | | 008 | 89023397 | ACTUATOR, MODE VLV (IN FLOOR CONSOLE) (LOCATED AT REAR AIR DISTRIBUTOR DUCT) (INCLS 9) (ACDelco #15-73027) | D29 | 2005-2011 | 01 | | узнать цену | | 009 | | BOLT, MODE VLV ACTR (PART OF 8) | | 2010-2011 | | | | | 010 | 25726435 | DUCT, FLR RR AIR OTLT | DW29 | 2008-2011 | 01 | | узнать цену | | 011 | 25726442 | DUCT, F/FLR CNSL RR AIR | D29 | 2005-2011 | 01 | | узнать цену | | 012 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (F/FLR CNSL RR AIR DUCT) | | 2005-2011 | 01 | | узнать цену | | 013 | 25741413 | DUCT, F/FLR CNSL FRT AIR | D29 | 2008-2011 | 01 | | узнать цену | | 014 | | MODULE, BLO & AIR INL (SEE GROUP 09.000 "A/C & HEATER MODULE ASM/FRONT UNIT" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2011 | | | | | 015 | 19130561 | HOUSING, PASS COMPT AIR FLTR (INCLS 18) | D | 2010-2011 | 01 | | узнать цену | | 016 | 19130403 | FILTER KIT, PASS COMPT AIR (PARTICLE FILTER) (ACDelco #CF133) | DW29 | 2008-2011 | 01 | | узнать цену | | 017 | 19130428 | COVER, PASS COMPT AIR FLTR ACC HOLE (WILL ALSO REQUIRE USE OF 19130429 ON CARS BUILT PRIOR TO 5/1/07) | D | 2005-2011 | 01 | | узнать цену | | 018 | | RETAINER, PASS COMPT AIR FLTR (PART OF 15) | | 2010-2011 | | | | | 019 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AIR INL HSG) | | 2005-2011 | 01 | | узнать цену | | 020 | 25760173 | PANEL, AIR INL HSG LWR (INCLS 42, 43) | DW29 | 2010-2011 | 01 | | узнать цену | | 021 | 11609989 | BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (AIR INL) | | 2005-2011 | 01 | | узнать цену | | 022 | 11516727 | BOLT, HEX HD W/CONICAL WASHER, M6X1X40, 30 THD, 17 OD, 9.8 MAT, 7114M FIN, (BAT TRAY) | | 2005-2011 | 01 | | узнать цену | | 023 | 11609989 | BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BAT TRAY) | | 2005-2011 | 02 | | узнать цену | | 024 | 11516589 | SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (BAT TRAY) | | 2005-2011 | 04 | | узнать цену | | 025 | 15231231 | SEAL, AIR INL GRL PNL | DW29 | 2010-2011 | 01 | | узнать цену | | 026 | 11517528 | STUD, FLANGE M6X1X20, M6.3X1.69X16, 15 OD, 6010M, 4345M, TAP (PART OF 35) | | 2005-2011 | 01 | | узнать цену | | 027 | 11609989 | BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (AIR INL HSG) | | 2005-2011 | 03 | | узнать цену | | 028 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AIR INL HSG) | | 2005-2011 | 03 | | узнать цену | | 029 | 11589289 | RETAINER, PUSH-IN, FITS 6.5 HOLE, 2-4.5 THK PNL, NYLON 6/6 PER GMP.PA66.0 (SI WDO DEFG OTLT DUCT) | | 2005-2011 | 01 | | узнать цену | | 030 | 25726439 | DUCT, SI WDO DEFG OTLT | DW29 | 2008-2011 | 01 | R | узнать цену | | 031 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (W/S DEFR NOZ) | | 2005-2011 | 03 | | узнать цену | | 032 | 25726438 | DUCT, SI WDO DEFG OTLT | DW29 | 2008-2011 | 01 | L | узнать цену | | 033 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (SI WDO DEFG OTLT DUCT) | | 2005-2011 | 01 | | узнать цену | | 034 | 25726430 | NOZZLE, W/S DEFR | D29 | 2008-2011 | 01 | | узнать цену | | 035 | 15909116 | PANEL, AIR INL HSG FRT UPR (DRAIN CHANNEL) (INCLS 26) | DW29 | 2008-2011 | 01 | | узнать цену | | 036 | | TRAY, BAT (INCLS 37) (SEE GROUP 02.000 "BATTERY CABLES AND MOUNTING" FOR DETAILED ILLUSTRATED VIEW) | | 2005-2011 | | | | | 037 | 11518121 | NUT, U, M6X1, MULTI THD, .5'-4.0' THK PNL (PART OF 36) | | 2005-2011 | 02 | | узнать цену | | 038 | 11516589 | SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (AIR INL) | | 2005-2011 | 03 | | узнать цену | | 039 | 15823861 | PANEL, AIR INL HSG FRT LWR (LOWER SIDE ATTACH) | DW29 | 2008-2011 | 01 | | узнать цену | | 040 | 25746570 | VALVE, PLNM DRN | D29 | 2005-2011 | 01 | | узнать цену | | 041 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AIR INL HSG) | | 2005-2011 | 03 | | узнать цену | | 042 | 11518121 | NUT, U, M6X1, MULTI THD, .5'-4.0' THK PNL (PART OF 20) | | 2005-2011 | 04 | | узнать цену | | 043 | 11517528 | STUD, FLANGE M6X1X20, M6.3X1.69X16, 15 OD, 6010M, 4345M, TAP (PART OF 20) | | 2005-2011 | 01 | | узнать цену | | 044 | 22702778 | VALVE, QTR OTR PNL PRESS RLF | DW29 | 2008-2011 | 02 | | узнать цену | | 045 | 11609989 | BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (HTR & A/C EVPR & BLO MDL) | | 2005-2011 | 04 | | узнать цену |
|
|
