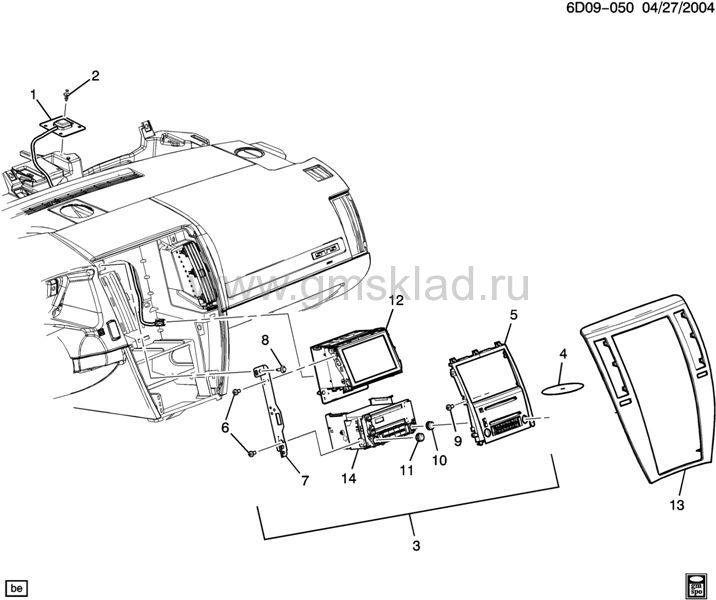

(6D09-050) 2011 D29 КРЕПЛЕНИЕ РАДИОСИСТЕМЫ (YQ4,YQ6)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15828833 | ANTENNA, ELEK NAVIGATION (PART OF 3) (INCLS 2) (ACDelco #15828833) | DW (JJD, YQ4, YQ6) | 2011-2011 | 01 | | узнать цену | | 002 | | STUD, NAVN ANT MT PLT (PART OF 1, 3) | | 2011-2011 | | | | | 003 | 20844560 | RADIO, AM/FM STEREO & NAVN (INCLS 1, 2, 5-7, 9-12, 14) (ACDelco #20844560) | DW29 (JJD, YQ6) | 2010-2011 | 01 | | узнать цену | | 003 | 20844561 | RADIO, AM/FM STEREO & NAVN (INCLS 1, 2, 5-7, 9-12, 14) (ACDelco #20844561) | DW29 (JJD, YQ4) | 2010-2011 | 01 | | узнать цену | | 003 | 20844560 | RADIO, AM/FM STEREO & NAVN (INCLS 1, 2, 5-7, 9-12, 14) (9.650) (ACDelco #20844560) | DW29 (JJD, YQ6) | 2010-2011 | 01 | | узнать цену | | 003 | 20844561 | RADIO, AM/FM STEREO & NAVN (INCLS 1, 2, 5-7, 9-12, 14) (9.650) (ACDelco #20844561) | DW29 (JJD, YQ4) | 2010-2011 | 01 | | узнать цену | | 004 | | DISC, NAVN DATA (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR LATEST SERVICE INFORMATION) | | 2008-2011 | | | | | 005 | | COVER, NAVN INFO DISPLAY OPG (PART OF 3) | | 2011-2011 | | | | | 006 | | BOLT, AUDIO PLYR BRKT (PART OF 3) | | 2011-2011 | | | | | 007 | | BRACKET, RDO (PART OF 3) | | 2011-2011 | | | | | 008 | 11609989 | BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (RDO R/Q TR PNL SPKR) | | 2005-2011 | 04 | | узнать цену | | 009 | | BOLT, RDO (PART OF 3) | | 2011-2011 | | | | | 010 | | KNOB, RDO TUNING CONT (PART OF 3) | (YQ4, YQ6) | 2011-2011 | | | | | 011 | | KNOB, RDO VOL CONT (PART OF 3) | (YQ4, YQ6) | 2011-2011 | | | | | 012 | | MODULE, COMN INTERFACE (PART OF 3) | | 2011-2011 | | | | | 013 | | PLATE, I/P ACSRY CTR TR (SEE GROUP 10.000 "INSTRUMENT PANEL" FOR DETAILED ILLUSTRATED VIEW) | | 2005-2011 | | | | | 014 | | RADIO, AM/FM STEREO & CD PLYR (PART OF 3) | | 2011-2011 | | | |
|
|
