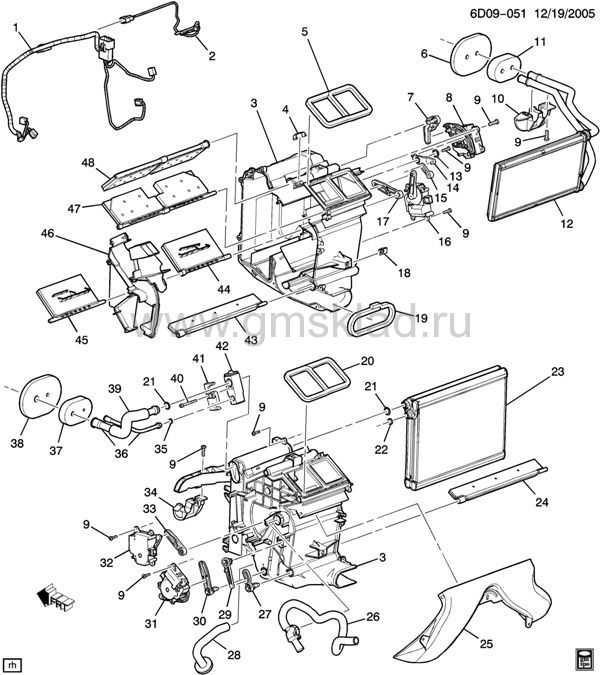

| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | 89023393 | HARNESS, HTR & A/C CONT WRG (INCLS 2) | D29 | 2005-2011 | 01 | | узнать цену |
| 002 | 89022547 | THERMISTOR, DRV MOT AIR INL TEMP (PART OF 1) | DW (JJD) | 2010-2011 | 01 | | узнать цену |
| 003 | 19130498 | CASE, HTR & A/C EVPR (INCLS 5, 7, 9, 10, 13-15, 19, 20, 24, 25, 27, 29, 30, 33, 34, 43-48) | DW29 | 2008-2011 | 01 | | узнать цену |
| 004 | 15266665 | CLIP, A/C EVPR CASE (9.215) | DW29 | 2008-2011 | 01 | | узнать цену |
| 005 | | SEAL, HTR & A/C EVPR MDL (PART OF 3) | | 2005-2011 | | | |
| 006 | | SEAL, HTR CORE CASE (THIN) (*KIT1) | | 2005-2011 | | | |
| 007 | | LEVER, MIX VLV (PART OF 3) | | 2005-2011 | | | |
| 008 | 15939657 | ACTUATOR, MODE VLV (ACDelco #15-73816) | DW29 | 2008-2011 | 01 | | узнать цену |
| 009 | | BOLT, HTR & BLO MDL (PART OF 3) | | 2005-2011 | | | |
| 010 | | CLAMP, HTR CORE TUBE (PART OF 3) | | 2005-2011 | | | |
| 011 | | SEAL, HTR CORE CASE (THICK) (*KIT1) | | 2005-2011 | | | |
| 012 | 89022548 | CORE, HTR (ACDelco #15-63063) | DW29 | 2008-2011 | 01 | | узнать цену |
| 013 | | WASHER, TEMP VLV LINK (PART OF 3) | | 2005-2011 | | | |
| 014 | | LEVER, TEMP VLV ACTR (PART OF 3) | | 2005-2011 | | | |
| 015 | | LEVER, TEMP VLV (PART OF 3) | | 2005-2011 | | | |
| 016 | 89023390 | ACTUATOR, TEMP VLV (PASSENGER SIDE) (ACDelco #15-73024) | DW29 | 2008-2011 | 01 | | узнать цену |
| 017 | | LEVER, MODE VLV | | 2005-2011 | | | |
| 018 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HTR & A/C EVPR & BLO MDL) | | 2005-2011 | 04 | | узнать цену |
| 019 | | SEAL, HTR & A/C EVPR MDL (PART OF 3) | | 2005-2011 | | | |
| 020 | | SEAL, HTR & A/C EVPR MDL (PART OF 3) | | 2005-2011 | | | |
| 021 | | SEAL, A/C EVPR TUBE (PART OF 42) | | 2005-2011 | | | |
| 022 | | SEAL, A/C EVPR TUBE (PART OF 42) | | 2005-2011 | | | |
| 023 | 89022546 | EVAPORATOR KIT, A/C (ACDelco #15-63064) | D29 | 2008-2011 | 01 | | узнать цену |
| 024 | | VALVE, MIXER (PART OF 3) | | 2005-2011 | | | |
| 025 | | DUCT, FLR AIR OTLT (PART OF 3) | | 2005-2011 | | | |
| 026 | 89023392 | ASPIRATOR, I/S AIR TEMP SEN (ACDelco #89023392) | DW29 | 2008-2011 | 01 | | узнать цену |
| 027 | | LEVER, TEMP VLV (PART OF 3) | | 2005-2011 | | | |
| 028 | 25740400 | HOSE, A/C EVPR & BLO MDL DRN | D | 2008-2011 | 01 | | узнать цену |
| 029 | | LEVER, TEMP VLV (PART OF 3) | | 2005-2011 | | | |
| 030 | | LEVER, TEMP VLV ACTR (PART OF 3) | | 2005-2011 | | | |
| 031 | 89023391 | ACTUATOR, TEMP VLV (REAR) (ACDelco #15-73025) | D29 | 2008-2011 | 01 | | узнать цену |
| 032 | 89023389 | ACTUATOR, TEMP VLV (DRIVER SIDE) (ACDelco #15-73023) | D29 | 2008-2011 | 01 | | узнать цену |
| 033 | | LEVER, TEMP VLV (PART OF 3) | | 2005-2011 | | | |
| 034 | | CLAMP, A/C EVPR TUBE (PART OF 3) | | 2005-2011 | | | |
| 035 | | SEAL, A/C EVPR TUBE (PART OF 42) | | 2005-2011 | | | |
| 036 | 19130000 | TUBE KIT, A/C EVPR TXV (ACDelco #15-33518) | D | 2008-2011 | 01 | | узнать цену |
| 037 | | SEAL, A/C EVPR CASE (THICK) (*KIT1) | | 2005-2011 | | | |
| 038 | | SEAL, A/C EVPR CASE (THIN) (*KIT1) | | 2005-2011 | | | |
| 039 | 89023394 | INSULATOR, A/C EVPR TXV (ACDelco #15-63304) | D29 | 2008-2011 | 01 | | узнать цену |
| 040 | | BOLT, A/C EVPR TXV (PART OF 42) | | 2005-2011 | | | |
| 041 | | CLIP, A/C EVPR TXV TUBE (PART OF 42) | | 2005-2011 | | | |
| 042 | 19129999 | VALVE KIT, A/C EVPR THERMAL EXPN (INCLS 21, 22, 35, 40, 41) (ACDelco #15-50697) | D | 2008-2011 | 01 | | узнать цену |
| 043 | | VALVE, VENT (PART OF 3) | | 2005-2011 | | | |
| 044 | | VALVE, TEMP (PART OF 3) | | 2005-2011 | | | |
| 045 | | VALVE, TEMP (PART OF 3) | | 2005-2011 | | | |
| 046 | | CASE, AIR DISTR (PART OF 3) | | 2005-2011 | | | |
| 047 | | VALVE, VENT (PART OF 3) | | 2005-2011 | | | |
| 048 | | VALVE, MODE (PART OF 3) | | 2005-2011 | | | |
| K01 | 25740401 | SEAL, HTR CORE CASE (INCLS 6, 11, 37, 38) (ACDelco #25740401) | DW29 | 2008-2011 | 01 | | узнать цену |
