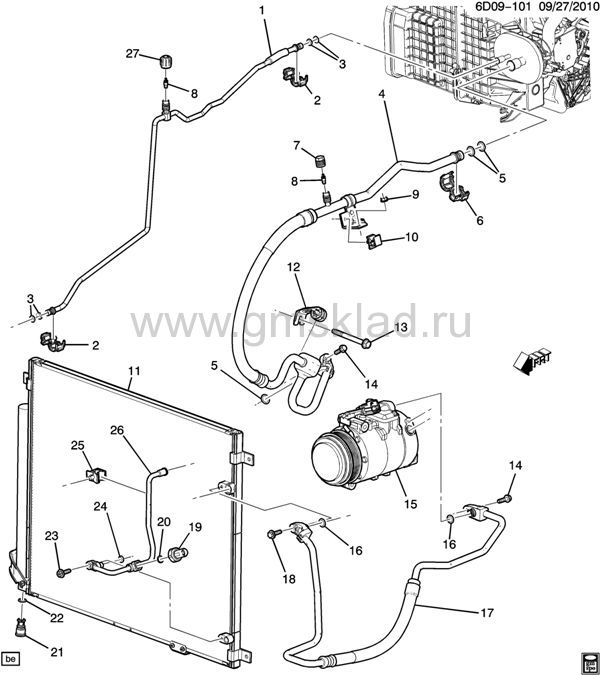

(6D09-101) 2011 D29 СИСТЕМА ОХЛАЖДЕНИЯ КОНДИЦИОНЕРА (LLT/3.6D)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25815299 | TUBE, A/C CNDSR (INCLS 3, 8, 27) (ACDelco #15-33801) | DW29 | 2006-2011 | 01 | | узнать цену | | 002 | 25728831 | CLAMP, A/C CNDSR & EVPR TUBE (L=35M W=31M H=32M) | D | 2005-2011 | 02 | | узнать цену | | 003 | 25740418 | SEAL, A/C EVPR TUBE (PART OF 1) (8MM) (ACDelco #15-31874) | DW29 | 2008-2011 | 01 | | узнать цену | | 004 | 25815298 | HOSE, A/C CMPR (INCLS 5, 7, 8, 10, 12) (ACDelco #15-33803) | DW29 (LLT) | 2008-2011 | 01 | | узнать цену | | 005 | 25740419 | SEAL, A/C CMPR HOSE (5/8IN) (PART OF 4) (ACDelco #15-31873) | D | 2008-2011 | 03 | | узнать цену | | 006 | 25728832 | CLAMP, A/C CMPR & CNDSR HOSE (L=38M W=32M H=39M) | D | 2005-2011 | 01 | | узнать цену | | 007 | 88957401 | CAP, A/C REFRIG SERV VLV (PART OF 4) (NON-TETHERED) (ACDelco #15-32562) | D29 | 2005-2011 | 01 | | узнать цену | | 008 | 88958095 | VALVE, A/C REFRIG SERV (PART OF 1, 4) (ACDelco #15-50154) | D | 2005-2011 | 01 | | узнать цену | | 009 | 11561645 | NUT, HFH, M6X1X6.45, 13.5 OD, 10 STL, GMW3200 (A/C TUBE BRKT) | | 2005-2011 | 01 | | узнать цену | | 010 | 88958096 | CLIP, A/C CMPR & CNDSR HOSE (PART OF 4) (BRACKET IS NOT INCLUDED) | D29 | 2008-2011 | 01 | | узнать цену | | 011 | 88957420 | CONDENSER, A/C (ACDelco #15-63038) | DW29 (LLT) (EXC V03) | 2010-2011 | 01 | | узнать цену | | 011 | 89022521 | CONDENSER, A/C (ACDelco #15-63058) | DW29 (LLT, V03) | 2008-2011 | 01 | | узнать цену | | 012 | | CLIP, A/C CMPR & CNDSR HOSE (PART OF 4) | | 2011-2011 | | | | | 013 | 11588734 | BOLT, HFH, M8X1.25X90, 21.6 THD, 18 O.D., 8.8, GMW3359 (A/C CMPR) | | 2005-2011 | 02 | | узнать цену | | 014 | 11516424 | BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (A/C CMPR HOSE) | | 2005-2011 | 02 | | узнать цену | | 015 | 89023452 | COMPRESSOR, A/C (SEE GROUP 09.000 "A/C COMPRESSOR ASM" FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15-21200) | DW29 (LLT) | 2008-2011 | 01 | | узнать цену | | 016 | 25740416 | SEAL, A/C CMPR & CNDSR HOSE (1/2IN) (PART OF 17) (ACDelco #15-31872) | D29 | 2009-2011 | 02 | | узнать цену | | 017 | 25837289 | HOSE, A/C CMPR & CNDSR (INCLS 16) (ACDelco #15-33842) | DW29 (LLT) | 2008-2011 | 01 | | узнать цену | | 018 | 11516424 | BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (A/C CMPR & CNDSR HOSE) | | 2005-2011 | 01 | | узнать цену | | 019 | 88958089 | SWITCH, A/C CMPR REFRIG PRESS (PART OF 26) (INCLS 20) (MATING CONN W/LEADS USE 88988301) (ACDelco #15-50153) | D29 | 2005-2011 | 01 | | узнать цену | | 020 | 88958090 | SEAL, A/C CMPR HIGH PRESS CUTOFF SW (O RING) (PART OF 19, 26) (ACDelco #15-32579) | D29 | 2009-2011 | 01 | | узнать цену | | 021 | 89023442 | PLUG, A/C RCVR & DEHYDR (INCLS PLUG, O-RING & DESSICANT BAG) (ACDelco #15-10636) | DW29 | 2009-2011 | 01 | | узнать цену | | 022 | 89022474 | SEAL, A/C RCVR & DEHYDR CVR (O RING) (ACDelco #15-32578) | DW29 | 2009-2011 | 01 | | узнать цену | | 023 | 19130331 | BOLT, A/C CNDSR TUBE | D | 2005-2011 | 01 | | узнать цену | | 024 | 25740418 | SEAL, A/C EVPR TUBE (PART OF 26) (8MM) (ACDelco #15-31874) | DW29 | 2008-2011 | 01 | | узнать цену | | 025 | | CLIP, A/C CNDSR TUBE | | 2011-2011 | | | | | 026 | 15932848 | TUBE, A/C CNDSR OTLT (INCLS 19, 20, 24) (ACDelco #15-33827) | DW29 | 2008-2011 | 01 | | узнать цену | | 027 | 88957402 | CAP, A/C REFRIG SERV VLV (LIQUID) (PART OF 1) (NON-TETHERED) (ACDelco #15-32563) | D29 | 2005-2011 | 01 | | узнать цену |
|
|
