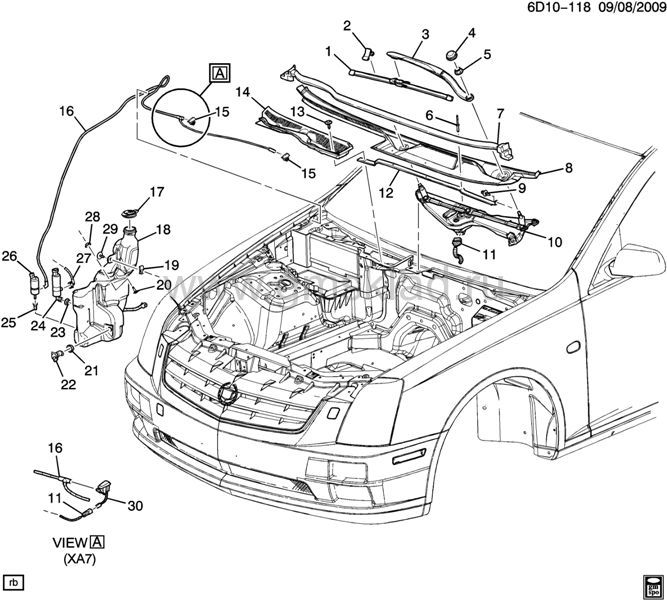

(6D10-118) 2010-2011 DW29 СИСТЕМА СТЕКЛООЧИСТИТЕЛЯ ВЕТРОВОГО СТЕКЛА
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 22840632 | BLADE, WSW | DW | 2010-2011 | 01 | L | узнать цену | | 001 | 22840631 | BLADE, WSW | DW | 2010-2011 | 01 | R | узнать цену | | 002 | 15778884 | CLIP, WSW BLADE HOLDN | DW | 2010-2011 | 01 | | узнать цену | | 003 | 88958363 | ARM, WSW | DW | 2010-2011 | 01 | R | узнать цену | | 003 | 88958364 | ARM, WSW | DW | 2010-2011 | 01 | L | узнать цену | | 004 | 25797175 | CAP, WSW ARM NUT (FOR FINE THREAD PIVOT SHAFTS) | D29 | 2010-2011 | 02 | | узнать цену | | 005 | 11609634 | NUT, HEX WASH, M10X1.25, 7MM THK, 20 WA OD, 9 STL, 7111M, CON SPR WA. (WSW ARM) | | 2010-2011 | 02 | | узнать цену | | 006 | 10125439 | RIVET, FLAT HD, 3 LEG EXPANSION, M4.8 SHAFT, 23.5 LG, 9.8 O.D., AL (PART OF 8) | | 2010-2011 | 03 | | узнать цену | | 007 | 10359431 | SEAL, HOOD RR (PART OF 8) | D29 | 2010-2011 | 01 | | узнать цену | | 008 | 20757649 | PANEL, AIR INL GRL (INCLS 6, 7, 12) | DW29 | 2010-2011 | 01 | L | узнать цену | | 009 | 10134407 | RETAINER, AIR INL HSG (PUSH IN) (EBONY) (17.8 X 6.3 X 20.4MM) (NYLON) (ROUND PUSH-IN INCLS PUSH BUTTON LOCK) (1.272) | DW | 2010-2011 | 01 | | узнать цену | | 010 | | MODULE, WSW SYS (SEE GROUP 10.000 "WIPER MOTOR/WINDSHIELD" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2011 | | | | | 011 | | HARNESS, I/P WRG (SEE GROUP 02.000 "WIRING HARNESS/INSTRUMENT PANEL" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2011 | | | | | 013 | 11570498 | BOLT, HWH W/FL WA, M4.2X1.41X20, 11.4 THD, 17 OD, ISO 2702 STL , GMW4205, T (AIR INL GRL) | | 2010-2011 | 03 | | узнать цену | | 014 | 25799854 | PANEL, AIR INL GRL | DW29 | 2010-2011 | 01 | R | узнать цену | | 015 | 15778749 | NOZZLE, WSWA | DW (EXC XA7) | 2010-2011 | 02 | | узнать цену | | 016 | 15896074 | HOSE, WSWA SOLV CNTNR | D29 | 2010-2011 | 01 | | узнать цену | | 017 | 25731418 | CAP, WSWA SOLV CNTNR | DW | 2010-2011 | 01 | | узнать цену | | 018 | 19207318 | CONTAINER, WSWA SOLV (INCLS 19, 21, 23, 25) | D29 (EXC CE4) | 2010-2011 | 01 | | узнать цену | | 018 | 19257295 | CONTAINER, WSWA & HDLP SOLV (INCLS 19, 21, 23, 25) | D29 (CE4) | 2010-2011 | 01 | | узнать цену | | 019 | 11570097 | NUT, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (PART OF 18) | | 2010-2011 | 02 | | узнать цену | | 020 | 11517641 | STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (WSWA SOLV CNTNR) | | 2010-2011 | 01 | | узнать цену | | 021 | 22806497 | SEAL, WSWA SOLV LVL SW (PART OF 18, 22) | DW (CE4) | 2010-2011 | 01 | | узнать цену | | 022 | 12487599 | SWITCH, WSWA SOLV LVL (INCLS 21) (IF USING ORIG CONTAINER, MAY ALSO NEED TO USE 12487589 IND) | D29 | 2010-2011 | 01 | | узнать цену | | 022 | 22806492 | SWITCH, WSWA SOLV LVL (INCLS 21) | DW (CE4) | 2010-2011 | 01 | | узнать цену | | 023 | 22806496 | SEAL, HDLP WA PUMP (PART OF 18, 24) | DW29 (CE4) | 2010-2011 | 01 | | узнать цену | | 024 | 88958121 | PUMP, HDLP WA (INCLS 23) (LOCATED IN WSW TANK) (ACDelco #88958121) | DW29 (CE4) | 2010-2011 | 01 | | узнать цену | | 025 | | GROMMET, WSWA PUMP (PART OF 18, 26) | | 2010-2011 | | | | | 026 | 88958258 | PUMP KIT, WSWA (INCLS 25) (ACDelco #88958258) | DW | 2010-2011 | 01 | | узнать цену | | 027 | | HOSE, HDLP WA (SEE GROUP 02.000 "HEADLAMP WASHER" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2011 | | | | | 028 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (WSWA SOLV CNTNR) | | 2010-2011 | 01 | | узнать цену | | 029 | 11518094 | BOLT, HES W/FL WA, M6X1X21, 11.75 THD, 24 OD, 9.8, 7114M, MACH, DOG-PT (WSWA SOLV CNTNR) | | 2010-2011 | 03 | | узнать цену | | 030 | 10366565 | NOZZLE, WSWA (HTD) | DW (XA7) | 2010-2011 | 02 | | узнать цену |
|
|
