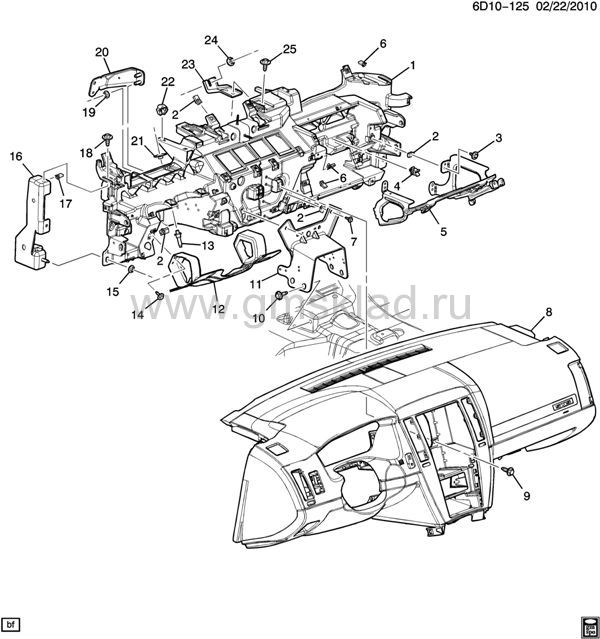

(6D10-125) 2010-2011 DW29 ПРИБОРНАЯ ПАНЕЛЬ PART 3
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 10369681 | CARRIER, I/P (INCLS 13) | D29 | 2010-2011 | 01 | | узнать цену | | 002 | 11516372 | NUT, U-TYPE, M5X1, MULTI THD, 2.0-5.0 PNL THK, PZ (I/P) | | 2010-2011 | 18 | | узнать цену | | 003 | 11515755 | BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (I/P CARR BRKT) (T/W 12345493 REPLCS 25534835) | | 2010-2011 | 03 | | узнать цену | | 004 | 25670387 | CLIP, I/P AIRBAG LEAD (NYLON) | D29 | 2010-2011 | 03 | | узнать цену | | 005 | 25792250 | BRACKET, I/P PASS KNEE BOLS BRKT | D29 | 2010-2011 | 01 | | узнать цену | | 006 | 11515638 | NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (I/P) | | 2010-2011 | 10 | | узнать цену | | 007 | 11609989 | BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P CARR BRKT) | | 2010-2011 | 04 | | узнать цену | | 008 | | PANEL, INST (SEE GROUP 10.000 "INSTRUMENT PANEL, PARTS 1 & 2" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2011 | | | | | 009 | 11609989 | BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P UPR TR PAD RET) | | 2010-2011 | 08 | | узнать цену | | 010 | 11570082 | BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (I/P CARR BRKT) (ACDelco #11570082) | | 2010-2011 | 04 | | узнать цену | | 011 | 25795382 | BRACKET, I/P CARR (TO FLR, RWD) | D29 | 2010-2011 | 01 | | узнать цену | | 011 | 25795383 | BRACKET, I/P CARR (TO FLR) (AWD) | D29 | 2010-2011 | 01 | | узнать цену | | 012 | 25855640 | BRACKET, I/P DRVR KNEE BOLS BRKT | D29 | 2010-2011 | 01 | | узнать цену | | 013 | | STUD, STRG COL (PART OF 1) | | 2010-2011 | | | | | 014 | 11609989 | BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P DRVR KNEE BOLS) | | 2010-2011 | 04 | | узнать цену | | 015 | 20453625 | NUT, HEX, W/TOOTHED CON WA, M8X1.25, 7.32THK, 24 O.D., 9, ZP, BLACK (I/P CARR) | | 2010-2011 | 04 | | узнать цену | | 016 | | SUPPORT, I/P OTR (SEE GROUP 12.000 "SHEET METEL" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2011 | | | | | 017 | 11516149 | NUT, U, 8X1.25, MULTI THD, .08'-4.0' THK PNL, PZ (I/P CARR) | | 2010-2011 | 02 | | узнать цену | | 018 | 11570082 | BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (INST CARR) (ACDelco #11570082) | | 2010-2011 | 02 | | узнать цену | | 019 | 11514519 | NUT, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (STRG COL SUPT BRKT) | | 2010-2011 | 02 | | узнать цену | | 020 | 25737925 | BRACKET, STRG COL SUPT (COMPLETE ASM) | DW29 | 2010-2011 | 01 | | узнать цену | | 021 | 25606907 | NUT, STRG COL (M8X1.25, 7.1THK) (SQUARE) (SUPT BRKT NUT) (6.760) | DW | 2010-2011 | 04 | | узнать цену | | 022 | 11610157 | NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (I/P INSL) (10.701) | | 2011-2011 | 03 | | узнать цену | | 023 | 25795381 | BRACKET, I/P CARR (FOD, CTR) | D29 | 2010-2011 | 02 | | узнать цену | | 024 | 20453625 | NUT, HEX, W/TOOTHED CON WA, M8X1.25, 7.32THK, 24 O.D., 9, ZP, BLACK (I/P CARR BRKT) | | 2010-2011 | 03 | | узнать цену | | 025 | 11515755 | BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (I/P CARR BRKT) (T/W 12345493 REPLCS 25534835) | | 2010-2011 | 03 | | узнать цену |
|
|
