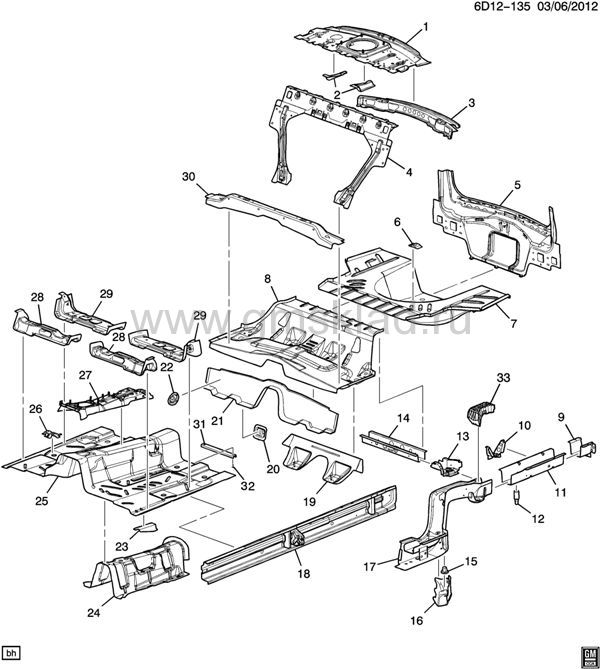

(6D12-135) 2007-2011 D29 ЛИСТОВОЙ МЕТАЛЛ КУЗОВА PART 5-UNDERBODY & REAR END
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25719291 | PANEL, R/WDO (INCLS 2) | D29 | 2007-2011 | 01 | | узнать цену | | 002 | | BRACE, R/WDO PNL (PART OF 1) | | 2007-2011 | | | | | 003 | 25719307 | PANEL, R/WDO DRN | D29 | 2007-2011 | 01 | | узнать цену | | 004 | | SUPPORT, R/SEAT H/RST | | 2007-2011 | | | | | 005 | 15872663 | PANEL, R/END | D29 | 2007-2011 | 01 | | узнать цену | | 006 | 25650571 | BRACKET, SPA WHL STOW (55.1X84.5X126) (3 RECTANGULAR ATTACH BOLT HOLES) | D | 2007-2011 | 01 | | узнать цену | | 007 | 88891833 | PANEL KIT, R/CMPT FLR (12.980) | D29 | 2007-2011 | 01 | | узнать цену | | 008 | | PANEL, R/CMPT | | 2007-2011 | | | | | 009 | 25939952 | EXTENSION, R/CMPT FLR PNL RL (PART OF 11) (FOR RH OR LH) | D29 | 2007-2011 | 02 | | узнать цену | | 010 | 15217298 | EXTENSION, R/FLR PNL RR | D29 | 2007-2011 | 02 | | узнать цену | | 011 | 22745742 | RAIL, R/CMPT FLR PNL (W/RR SUSP SUPT) (INCLS 9, 12) | D29 | 2007-2011 | 01 | R | узнать цену | | 011 | 22745743 | RAIL, R/CMPT FLR PNL (W/RR SUSP SUPT) (INCLS 9, 12) | D29 | 2007-2011 | 01 | L | узнать цену | | 012 | 11519001 | NUT, RR SUSP FRM (PART OF 11) (HEX, M16X2.0X37.9, OD 50, SAE1010, PLAIN.TEFLON) (8.899) | D | 2007-2011 | 02 | | узнать цену | | 013 | 10369747 | EXTENSION, FLR PNL #5 C/BAR | D29 | 2007-2011 | 02 | | узнать цену | | 014 | 20884792 | BAR, FLR PNL #5 | D29 | 2007-2011 | 01 | | узнать цену | | 015 | 11519001 | NUT, HEX M16X2.0X37.9, OD 50, SAE1010, PLAIN.TEFLON PER GM6076M (PART OF 17) (8.899) | | 2007-2011 | 02 | | узнать цену | | 016 | 25911674 | REINFORCEMENT, RR SUSP SUPT (PART OF 17) | D | 2008-2011 | 01 | R | узнать цену | | 016 | 25911675 | REINFORCEMENT, RR SUSP SUPT (PART OF 17) | D | 2008-2011 | 01 | L | узнать цену | | 017 | 19206662 | RAIL, R/CMPT FLR PNL RR (INCLS 15, 16) | D29 | 2007-2011 | 01 | R | узнать цену | | 017 | 19206663 | RAIL, R/CMPT FLR PNL RR (INCLS 15, 16) | DW29 | 2011-2011 | 01 | L | узнать цену | | 018 | 25774227 | PANEL, RKR INR | D29 | 2007-2011 | 01 | R | узнать цену | | 018 | 25774228 | PANEL, RKR INR | D29 | 2007-2011 | 01 | L | узнать цену | | 019 | | PLATE, R/SEAT BELT ANC (BKL SI) | | 2007-2011 | | | | | 020 | 25675853 | BRACKET, F/TNK | D | 2007-2011 | 02 | | узнать цену | | 021 | | BAR, FLR PNL #4 CR | | 2007-2011 | | | | | 022 | | PLATE, CHILD ST RST SYS BELT BRKT ANC | | 2007-2011 | | | | | 023 | 25689604 | BRACKET, PARK BRK CBL (218 X 83 X 59) (ATTACHES TO F/FLR PANEL) | D | 2007-2011 | 01 | | узнать цену | | 024 | | REINFORCEMENT, FLR PNL CTR | | 2007-2011 | | | | | 025 | | PANEL, F/FLR | | 2007-2011 | | | | | 026 | | BRACKET, VEH YAW SEN & LATL ACCLRM | | 2007-2011 | | | | | 027 | | REINFORCEMENT, FLR PNL CTR UPR | | 2007-2011 | | | | | 028 | | BAR, FLR PNL #2 CR | | 2007-2011 | | | | | 029 | | BAR, FLR PNL #3 CR | | 2007-2011 | | | | | 030 | | BAR, FLR PNL #4 CR | | 2007-2011 | | | | | 031 | 15952419 | REINFORCEMENT, FLR PNL #4 C/BAR | D29 | 2007-2011 | 01 | | узнать цену | | 032 | 11519387 | BOLT, HWASH, M8X1.25X20, 14 THD, 24 OD, GMW25 (8.8)STEEL, GMW3359, M-POINT. (FLR PNL #4 C/BAR REINF) | | 2007-2011 | 02 | | узнать цену | | 033 | 25859827 | REINFORCEMENT KIT, R/CMPT FLR PNL RL INTER (INSTRUCTION #19120709) | D29 | 2011-2011 | 01 | R | узнать цену | | 033 | 25859828 | REINFORCEMENT KIT, R/CMPT FLR PNL RL INTER | D29 | 2011-2011 | 01 | L | узнать цену |
|
|
