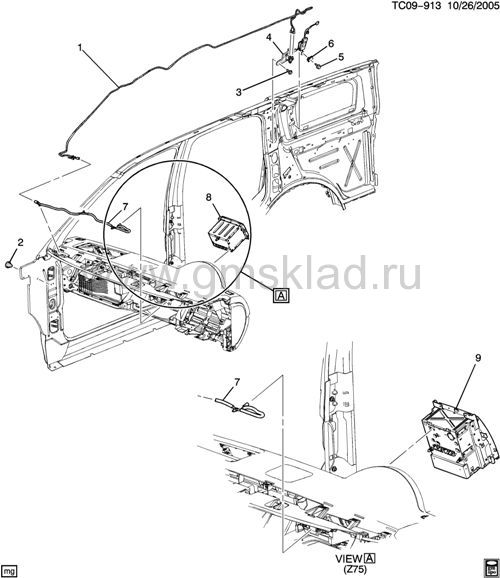

(TC09-913) - 2007-2009 CK1,2(06) АНТЕННА
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15289725 | CABLE, RDO ANT (ACDelco #15289725) | CK107 (06) | 2007-2008 | 01 | | узнать цену | | 002 | 15045800 | COVER, RDO ANT OPG | CK1, 2 (06) (MSL, U84) | 2007-2009 | 01 | | узнать цену | | 003 | 11588337 | БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (ELEK BRK CONT WRG HARN GND)
[Болт М8] | | 2007-2009 | 01 | | узнать цену | | 004 | 15877496 | MODULE, RDO ANT (ACDelco #15877496) | CK107 (06) (U84) | 2007-2008 | 01 | | узнать цену | | 005 | 11588337 | БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (RDO ANT MDL GRD)
[Болт М8] | | 2007-2009 | AR | | узнать цену | | 006 | 11570097 | ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (HDLP HSG PNL)
[Шайба] | | 2007-2009 | 01 | | узнать цену | | 007 | 15220450 | CABLE, RDO ANT CBL EXTN RDO END (1250 MM) (ACDelco #15220450) | CK1, 2 (U84, X88, Z88) | 2007-2009 | 01 | | узнать цену | | 008 | | RADIO, AM/FM STEREO & CLK & CD PLYR (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR THE LATEST SERVICE INFORMATION) | | 2007-2009 | | | | | 009 | | RADIO, AM/FM STEREO & NAVN (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR THE LATEST SERVICE INFORMATION) | | 2007-2009 | | | |
|
|
