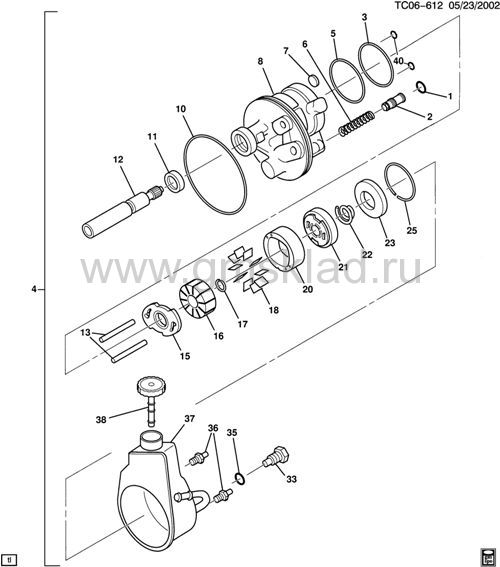

(TC06-612) - 2004-2007 CK РУЛЕВОЙ НАСОС В СБОРЕ (EXC HYBRID HP2)
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | SEAL, P/S PUMP FLOW C/VLV (O RING) | 2004-2007 | |||||
| 002 | 26065843 | VALVE, P/S PUMP FLOW CONT (VALVE ONLY) | K1 (06-36) (JH2) | 2004-2006 | 01 | узнать цену | |
| 002 | 26065843 | VALVE, P/S PUMP FLOW CONT (VALVE ONLY) | CK1, 2, 3 (LQ4, L31, C6P, C6W) | 2005-2005 | 01 | узнать цену | |
| 003 | SEAL, P/S PUMP END PLT (O RING) | 2004-2007 | |||||
| 004 | 15909826 | PUMP, P/S (INCLS RESERVOIR) [Насос ГУРа] | CK1, 2 (LQ4, L31, C6P, C6W) | 2005-2005 | 01 | узнать цену | |
| 004 | 15909831 | PUMP, P/S (INCLS 1-3, 5-8, 10-13, 15-18, 20-23, 25, 33, 35-38, 40) (SERVICE PUMP) (INCLS RESVR) | K1 (06) (N93, N94, Y91) (EXC BPH) | 2005-2005 | 01 | узнать цену | |
| 004 | 15909831 | PUMP, P/S (INCLS 1-3, 5-8, 10-13, 15-18, 20-23, 25, 33, 35-38, 40) (SERVICE PUMP) (INCLS RESVR) | K1 (06) (P25, P27) (EXC BPH, Y91) | 2005-2005 | 01 | узнать цену | |
| 004 | 15909831 | PUMP, P/S (SERVICE PUMP) (INCLS RESVR) | K1 (06) (JH2, N93, N94, PD0, Y91) (EXC BPH) | 2004-2005 | 01 | узнать цену | |
| 004 | 15909831 | PUMP, P/S (SERVICE PUMP) (INCLS RESVR) | K1 (06) (JH2, P25, P27) (EXC BPH, Y91) | 2004-2005 | 01 | узнать цену | |
| 004 | 15909831 | PUMP, P/S (SERVICE PUMP) (INCLS RESVR) | K1 (06) (BPH) | 2004-2006 | 01 | узнать цену | |
| 004 | 15909832 | PUMP, P/S [Насос] | K1 (06) (JH2) (EXC N88, N93, N94, PD0, PF4, PF9, P25, P27) | 2004-2005 | 01 | узнать цену | |
| 004 | 15909832 | PUMP, P/S [Насос] | K1 (06) (JH2, PF4, PF9) (EXC BPH, Y91) | 2004-2005 | 01 | узнать цену | |
| 005 | SEAL, P/S PUMP PRESS PLT (O RING) | 2004-2007 | |||||
| 006 | 05688037 | ПРУЖИНА, P/S PUMP FLOW C/VLV (6.612) | K1, 2, 3 | 2001-2007 | 01 | узнать цену | |
| 007 | MAGNET, P/S FLUID RSVR (*KIT2) | 2004-2007 | |||||
| 008 | HOUSING, P/S PUMP | 2004-2007 | |||||
| 010 | 26094421 | SEAL, P/S PUMP RSVR (O RING) (PART OF 37) (14.5MM I.D.) (*KIT2) | K1, 2, 3 | 2001-2006 | 01 | узнать цену | |
| 011 | 15277770 | SEAL, P/S PUMP SHF (I.D.22.78MM) (USED W/19MM SHAFT) [Прокладка насоса ГУРа] | K1, 2, 3 | 2001-2007 | 01 | узнать цену | |
| 012 | SHAFT, P/S PUMP | 2004-2007 | |||||
| 013 | PIN, P/S PUMP RING | 2005-2005 | |||||
| 015 | PLATE, P/S PUMP THR | 2005-2005 | |||||
| 016 | ROTOR, P/S PUMP | 2004-2007 | |||||
| 017 | RING KIT, P/S PUMP SHF RET (*KIT1) | 2004-2007 | |||||
| 018 | VANE, P/S PUMP | 2004-2007 | |||||
| 020 | RING, P/S PUMP | 2004-2007 | |||||
| 021 | PLATE, P/S PUMP PRESS | 2005-2005 | |||||
| 022 | ПРУЖИНА, P/S PUMP PRESS PLT | 2005-2005 | |||||
| 023 | PLATE, P/S PUMP END | 2005-2005 | |||||
| 025 | RING, P/S PUMP END PLT RET | 2005-2005 | |||||
| 033 | 26009894 | FITTING, P/S PUMP (6.673) | CK1 (06) (JC4) (EXC BPH) | 2003-2005 | 01 | узнать цену | |
| 033 | 26009894 | FITTING, P/S PUMP (6.673) | CK1 (06) (JH2) (EXC Y91) | 2004-2005 | 01 | узнать цену | |
| 033 | 26025709 | FITTING, P/S PUMP | K1 (06) (BPH) | 2004-2006 | 01 | узнать цену | |
| 033 | 26025709 | FITTING, P/S PUMP | K1 (06) (JH2) (EXC BPH) | 2004-2006 | 01 | узнать цену | |
| 033 | 26025709 | FITTING, P/S PUMP | CK1, 2, 3 (LQ4, L31, C6P, C6W) | 2005-2005 | 01 | узнать цену | |
| 033 | 26095244 | FITTING, P/S PUMP (6.635) | CK1, 2, 3 (LQ4, L31) | 2005-2005 | 01 | узнать цену | |
| 035 | SEAL, P/S PUMP FTG (O RING) (*KIT2) | 2004-2007 | |||||
| 036 | 07833293 | STUD, P/S PUMP (M10X1.5X35MM) | K1, 2, 3 | 2001-2007 | 01 | узнать цену | |
| 036 | 26009574 | STUD, P/S PUMP (M10X1.5X16) (SHORT) | K1, 2, 3 | 2001-2007 | 01 | узнать цену | |
| 037 | 26045591 | RESERVOIR KIT, P/S FLUID (INCLS 10) | CK1, 2, 3 (LQ4, L31, C6P, C6W) | 2005-2005 | 01 | узнать цену | |
| 037 | 26101115 | RESERVOIR KIT, P/S FLUID (INCLS 10) | CK1 (06-36) | 2003-2005 | 01 | узнать цену | |
| 038 | 26095194 | CAP, P/S PUMP RSVR | CK1, 2 (LQ4, L31, C5F, C6P, C6W) | 2005-2006 | 01 | узнать цену | |
| 038 | 26098862 | CAP, P/S PUMP RSVR | K1 (06) (BPH) | 2004-2005 | 01 | узнать цену | |
| 038 | 26098862 | CAP, P/S PUMP RSVR | K1 (06) (JH2, PF4, PF9) (EXC Y91) | 2004-2005 | 01 | узнать цену | |
| 038 | 26098862 | CAP, P/S PUMP RSVR | K1 (06) (JH2) (EXC N88, N93, N94, PD0, PF4, PF9, P25, P27) | 2004-2006 | 01 | узнать цену | |
| 038 | 26098862 | CAP, P/S PUMP RSVR | K1 (06) (JH2, N93, Y91) | 2004-2006 | 01 | узнать цену | |
| 038 | 26098862 | CAP, P/S PUMP RSVR | K1 (06) (JH2, P25, P27) (EXC Y91) | 2004-2006 | 01 | узнать цену | |
| 038 | 26098862 | CAP, P/S PUMP RSVR | K1 (06) (JH2, N93, N94, PD0, QS7, QS8, Y91) (EXC BPH) | 2005-2005 | 01 | узнать цену | |
| 040 | SEAL, P/S PUMP STUD (O RING) (*KIT2) | 2004-2007 | |||||
| K01 | RING KIT, P/S PUMP SHF RET | 2005-2005 | |||||
| K02 | 15825938 | SEAL KIT, P/S PUMP (INCLS 7, 10, 35, 40) (FRT SEAL NOT INCL) [Комплект прокладок насоса ГУРа (7шт)] | K1, 2, 3 | 2001-2007 | 01 | узнать цену |
