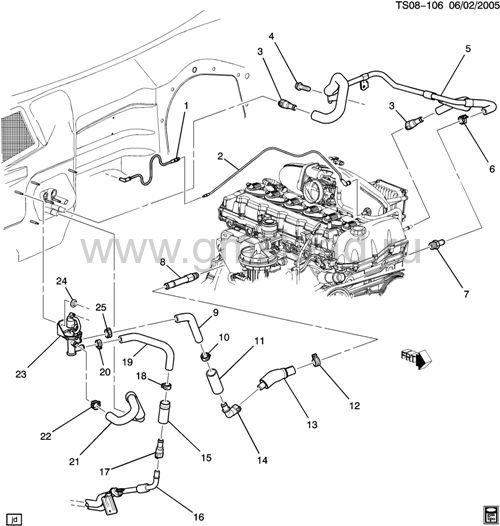

(TS08-106) - 2005 ST158(06) ШЛАНГИ И ТРУБКИ/ПОДОГРЕВАТЕЛЬ ЧАСТЬ 1 ПЕРЕДНИЙ (LL8/4.2S)(1ST DES-W/O AUX PUMP)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15191084 | HOSE, HTR WAT SHUTOFF VLV ACTR INL (VALVE SIDE) (*KIT1) | ST158 (06) (CJ2, CJ3) | 2003-2005 | 01 | | узнать цену | | 002 | 15183895 | HOSE, HTR WAT SHUTOFF VLV ACTR INL | ST158 (06) (LL8, CJ2, CJ3) | 2003-2005 | 01 | | узнать цену | | 003 | 15119175 | CONNECTOR, AUX HTR INL FRT HOSE (PART OF 5) (STRAIGHT) | ST1 (LL8, CJ2, CJ3) | 2005-2005 | 01 | | узнать цену | | 003 | 15139564 | CONNECTOR, AUX HTR INL FRT HOSE (PART OF 5) (90 DEGREE ELBOW) (8.866) (ACDelco #15-34069) | ST1 (CJ2, CJ3) | 2005-2005 | 01 | | узнать цену | | 004 | 11519894 | BOLT-HEX W/CON WA, M10X1.5X55, 42.3 THD, 20 OD, 10.9, 7114M, MACH, MAT-PT (TRANS) | | 2002-2005 | 11 | | узнать цену | | 005 | 15138451 | HOSE, HTR OTLT (INCLS 3, 6) (CODE 8451, 9171, 5658) | ST158 (06) (LL8, CJ2, CJ3) | 2003-2005 | 01 | | узнать цену | | 006 | 11517133 | CLAMP, SPRING, 22-26MM, 24 NOM., BLK (PART OF 5) | | 2002-2005 | 01 | | узнать цену | | 007 | 12567908 | FITTING, HTR OTLT HOSE | ST1 (LL8) | 2005-2005 | 01 | | узнать цену | | 008 | 12598077 | FITTING, HTR INL HOSE (ACDelco #15-31230)
[Крепление шланга отопителя] | ST1 (LL8) | 2005-2005 | 01 | | узнать цену | | 009 | | HOSE, HTR WA SHUTOFF VLV INL (*KIT1) | | 2005-2005 | | | | | 010 | 01470030 | CLAMP, WORM TYPE (11/16" TO 1 5/16") (HTR WA SHUTOFF VLV INL HOSE) (*KIT1) (ACDelco #1470030) | | 2002-2005 | 01 | | узнать цену | | 011 | | SLEEVE, HTR HOSE (*KIT1) | | 2005-2005 | | | | | 012 | 11517136 | CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (PART OF 13) | | 2002-2005 | 01 | | узнать цену | | 013 | 15180574 | HOSE, HTR INL (INCLS 12) (CODE 0574, 9924) | ST158 (06) (LL8, CJ2, CJ3) | 2003-2005 | 01 | | узнать цену | | 013 | 19130076 | HOSE, HTR INL (INCLS 12)
[HOSE ASM,HTR INL] | ST1 (LL8, CJ2, CJ3) | 2003-2005 | 01 | | узнать цену | | 014 | | CONNECTOR, HTR INL HOSE (*KIT1) | | 2005-2005 | | | | | 015 | | SLEEVE, HTR HOSE (*KIT1) | | 2005-2005 | | | | | 016 | | TUBE, AUX A/C EVPR (W/AUX HTR INL PIPE) (СМ. ГРУППУ 08.000 "ШЛАНГИ И ТРУБКИ/ПОДОГРЕВАТЕЛЬ REAR" FOR DETAILED ILLUSTRATED VIEW) | | 2002-2005 | | | | | 017 | 15119175 | CONNECTOR, AUX HTR INL FRT HOSE (STRAIGHT) (*KIT1) | ST1 (LL8, CJ2, CJ3) | 2005-2005 | 01 | | узнать цену | | 017 | 15139564 | CONNECTOR, AUX HTR INL FRT HOSE (90 DEGREE ELBOW) (*KIT1) (8.866) (ACDelco #15-34069) | ST1 (CJ2, CJ3) | 2005-2005 | 01 | | узнать цену | | 018 | 11517133 | CLAMP, SPRING, 22-26MM, 24 NOM., BLK (AUX HTR INL FRT HOSE) (*KIT1) | | 2002-2005 | 01 | | узнать цену | | 019 | | HOSE, AUX HTR INL FRT (*KIT1) | | 2005-2005 | | | | | 020 | 11517136 | CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (AUX HTR INL FRT HOSE) (*KIT1) | | 2002-2005 | 01 | | узнать цену | | 021 | | HOSE, HTR INL (*KIT1) | | 2005-2005 | | | | | 022 | 11517133 | CLAMP, SPRING, 22-26MM, 24 NOM., BLK (HTR WAT SHUTOFF VLV HOSE) (*KIT1) | | 2002-2005 | 01 | | узнать цену | | 023 | 15772294 | VALVE, HTR WAT SHUTOFF (EXC HTR HOSES INL, OTLT & SHUTOFF) (*KIT1) (ACDelco #15-5886) | ST158 (06) (CJ2, CJ3) | 2004-2005 | 01 | | узнать цену | | 024 | 11514517 | ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (HTR WAT SHUTOFF VLV)
[Гайка М6] | | 2002-2005 | 01 | | узнать цену | | 025 | 11517136 | CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (HTR WAT SHUTOFF VLV HOSE) (*KIT1) | | 2002-2005 | 01 | | узнать цену | | K01 | 15119174 | VALVE, HTR WAT SHUTOFF (W/O AUX PUMP, FOR 2ND DES SEE 15225911) (INCLS 1, 9-11, 14, 15, 17-23, 25) (ACDelco #15-50140) | ST158 (06) (LL8, CJ2, CJ3) | 2005-2005 | 01 | | узнать цену |
|
|
