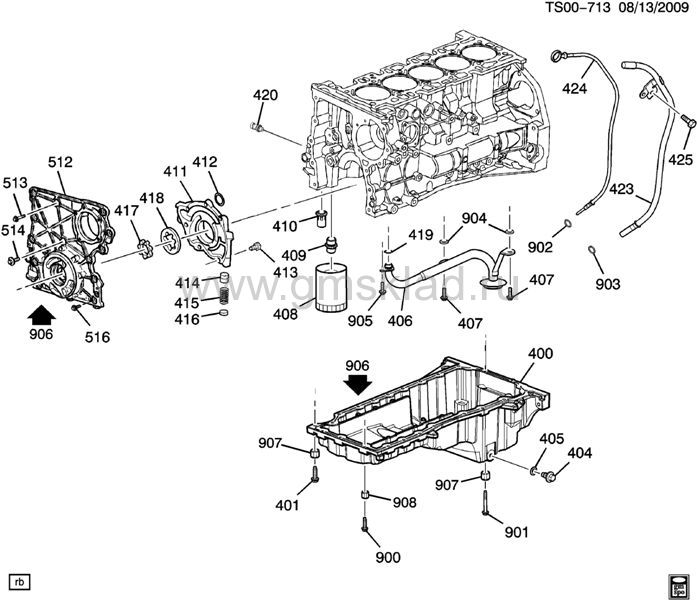

(TS00-713) 2007-2010 N1 ДВИГАТЕЛЬ В СБОРЕ-3.7L L5 PART 4 МАСЛЯНЫЙ НАСОС, ПОДДОН И СВЯЗАННЫЕ ДЕТАЛИ (LLR/3.7E)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 400 | 12600497 | PAN, OIL (INCLS 401, 404, 405, 900, 901, 907, 908) (INCLS PAN, PLUG, SEAL, RETAINERS, BOLTS, ) | N1 (LLR) | 2007-2010 | 01 | | узнать цену | | 401 | 11588364 | BOLT, HFH, M8X1.25X34, 25 THD, 18 O.D., 9.8, GMW3359 (PART OF 400) | | 2007-2010 | 18 | | узнать цену | | 404 | | PLUG, OIL PAN DRN (PART OF 400) (INCLS 405) | | 2007-2010 | | | | | 405 | 12616850 | SEAL, OIL PAN DRN PLUG (O RING) (PART OF 400, 404) | N1 (LLR) | 2007-2010 | 01 | | узнать цену | | 406 | 12588480 | SCREEN, O/PMP (W/SUC PIPE) (INCLS BOLTS, SEAL, RETAINER, PIPE, BRACKETS, FLANGE) (INCLS 407, 419, 904, 905) | N1 (LLR) | 2007-2010 | 01 | | узнать цену | | 407 | 11517692 | BOLT-HFH, M6X1X25, 21.5 THD, 14.2 OD, 9.8, 6280M, MACH, 6124M, HDR-PT (PART OF 406) | | 2007-2010 | 02 | | узнать цену | | 408 | 89017342 | FILTER, OIL (ACDelco #89017342) | N1 (LLR) | 2007-2010 | 01 | | узнать цену | | 409 | 24575062 | FITTING, OIL FLTR | N1 (LLR) | 2007-2010 | 01 | | узнать цену | | 410 | 25014612 | VALVE, OIL FLTR BYPASS (W/O VAPOR SEPARATOR) (OPENING PRESSURE 21 PSI NOMINAL) (ACDelco #25014612) (PART HAS A 16.10MM MAX OD & FITS A 15.84 HOLE IN BLOCK) | N1 (LLR) | 2007-2010 | 01 | | узнать цену | | 411 | | COVER, O/PMP (PART OF 512) | | 2007-2010 | | | | | 412 | 24576940 | SEAL, ENG FRT CVR (PART OF 512) | N1 (LLR) | 2007-2010 | 01 | | узнать цену | | 413 | 24577281 | BOLT, O/PMP (M6X1.0X23 THD..MATL:GM500M (9.8)STEEL..FINISH:PER GM4435M, CODE G.) (PART OF 512) (M6X1.0X22) | N1 (LLR) | 2007-2010 | 07 | | узнать цену | | 414 | | VALVE, OIL PRESS RLF (PART OF 512) | | 2007-2010 | | | | | 415 | 24100119 | SPRING, OIL PRESS RLF VLV (PART OF 512) | N1 (LLR) | 2007-2010 | 01 | | узнать цену | | 416 | | PLUG, OIL PRESS RLF VLV BORE (PART OF 512) | | 2007-2010 | | | | | 417 | | GEAR, O/PMP DRVN (PART OF 512) | | 2007-2010 | | | | | 418 | | GEAR, O/PMP DRV (PART OF 512) | | 2007-2010 | | | | | 419 | 12575550 | SEAL, O/PMP SUC PIPE (PART OF 406) | N1 (LLR) | 2007-2010 | 01 | | узнать цену | | 420 | 12635957 | SWITCH, ENG OIL PRESS (ACDelco #D1843A) | N1 | 2007-2010 | 01 | | узнать цену | | 423 | 12590590 | TUBE, OIL LVL IND (INCL:SEAL) (INCLS 903) | N1 (LLR) | 2007-2010 | 01 | | узнать цену | | 424 | 12580811 | INDICATOR, OIL LVL (INCLS 902) | N1 (LLR) | 2007-2010 | 01 | | узнать цену | | 425 | 11517516 | BOLT, HFH, M6X1X13, 9.5 THD, 14.2 OD, 9.8, 6280M, MACH, HDR-PT (OIL LVL IND TUBE) | | 2007-2010 | 01 | | узнать цену | | 512 | 12628565 | COVER, ENG FRT (W/OIL PMP) (INCLS SEAL (FRT CVR), GEARS, PLUG AND RELIEF VALVE) (INCLS 411-418, 513, 516) | N1 (LLR) | 2007-2010 | 01 | | узнать цену | | 513 | 11588718 | BOLT, ENG FRT CVR (-HFH, M6X1X50, 22.7 THD, 14.2 OD, 8.8, GMW3359, MAT PT) (PART OF 512) (M6X1X50) | N1 (LLR) | 2007-2010 | 02 | | узнать цену | | 514 | 11570143 | BOLT, ENG FRT CVR | N1 (LLR) | 2007-2010 | 01 | | узнать цену | | 516 | 11519038 | BOLT, HFH, M6X1X30, 24 THD, 13.2 OD, 10.9, GMW3359, W/ADHESIVE ON THREADS (PART OF 512) | | 2007-2010 | 11 | | узнать цену | | 900 | 11519886 | BOLT, HFH, M6X1X28, 24.5 THD, 14.2 OD, 9.8, 6280M, MACH, HDR-PTPT (PART OF 400) | | 2007-2010 | 03 | | узнать цену | | 901 | 11588719 | BOLT, HFH, M6X1X60, 18MM THD, 14.2 O.D., 8.8, 3359GMW (PART OF 400) | | 2007-2010 | 02 | | узнать цену | | 903 | | SEAL, OIL LVL IND TUBE (O RING) (PART OF 423) | | 2007-2010 | | | | | 904 | 11609738 | NUT, PUSH ON, M6X1, 12.7 OD, 2.18 THK, SAE 1050 STL, GMW3200. (PART OF 406) (8.921) | | 2007-2010 | 02 | | узнать цену | | 905 | 11516424 | BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (PART OF 406) | | 2007-2010 | 01 | | узнать цену | | 906 | 12378521 | SEALANT, RTV ENGINE SILICONE 5.3OZ CART (OIL PAN) (ACDelco #10-2010) | | 2007-2010 | AR | | узнать цену | | 907 | | RETAINER, OIL PAN BOLT (PART OF 400) | | 2007-2010 | | | | | 908 | 11518792 | RETAINER, OIL PAN BOLT (PART OF 400) (FOR M6 BOLT, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) | N1 (LLR) | 2007-2010 | 05 | | узнать цену | | 908 | 11588327 | RETAINER, OIL PAN BOLT (PART OF 400) (M8 BOLT) (4.128) | N1 | 2008-2010 | AR | | узнать цену |
|
|
