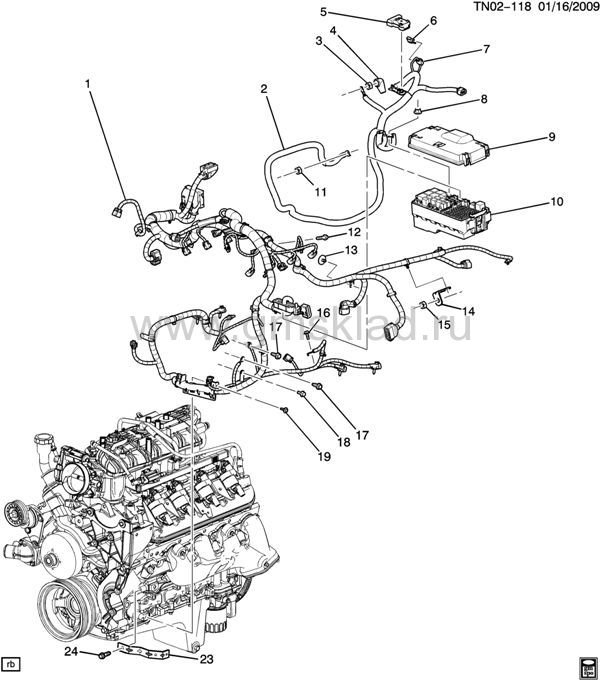

(TN02-118) 2010 N1 ЖГУТ ПРОВОДОВ/ДВИГАТЕЛЬ (LH9/5.3P)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 20872201 | HARNESS, ENG WRG & BAT POS CBL (INCLS 2, 4-7) | N1 (LH9, M30, G93) (EXC RHD, V08) | 2010-2010 | 01 | | узнать цену | | 001 | 24301082 | HARNESS, ENG WRG & BAT POS CBL (INCLS 2, 4-7) | N1 (LH9, M30, G93, JJA, RHD, V08) (EXPORT) | 2010-2010 | 01 | | узнать цену | | 001 | 24301082 | HARNESS, ENG WRG & BAT POS CBL (INCLS 2, 4-7) | N1 (LH9, M30, JJA, RHD, V08) (EXC G93) (EXPORT) | 2010-2010 | 01 | | узнать цену | | 001 | 24301082 | HARNESS, ENG WRG & BAT POS CBL (INCLS 2, 4-7) | N1 (LH9, M30, JJA, RHD) (EXC G93, V08) (EXPORT) | 2010-2010 | 01 | | узнать цену | | 001 | 24301082 | HARNESS, ENG WRG & BAT POS CBL (INCLS 2, 4-7) | N1 (LH9, M30, G93, JJA, RHD) (EXC V08) (EXPORT) | 2010-2010 | 01 | | узнать цену | | 002 | 19116853 | CABLE, BAT POS (PART OF 1) (SEE GROUP 02.000 "BATTERY CABLES" FOR DETAILED ILLUSTRATED VIEW) (ACDelco #19116853) | N1 (LH9, M30) (EXC RHD) | 2010-2010 | 01 | | узнать цену | | 002 | 19117708 | CABLE, BAT POS (PART OF 1) (SEE GROUP 02.000 "BATTERY CABLES" FOR DETAILED ILLUSTRATED VIEW) (ACDelco #19117708) | N1 (LH9, M30, RHD) (EXPORT) | 2010-2010 | 01 | | узнать цену | | 003 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS & NEG CBL GEN POS LEAD) | | 2008-2010 | 01 | | узнать цену | | 004 | 12146809 | COVER, GEN WIRE TERM (PART OF 1) (BLACK) (TERMINAL BOOT COVER) (2.343) | N1 | 2008-2010 | 01 | | узнать цену | | 005 | 19116717 | COVER, BAT POS CBL TERM (PART OF 1) | N1 | 2008-2010 | 01 | | узнать цену | | 006 | 12092079 | FUSE, 10A, MINI, RED (PART OF 1) | | 2008-2010 | 01 | | узнать цену | | 007 | 19116350 | HOLDER, WRG HARN FUSE (PART OF 1) (BLACK) (2-WAY FUSEHOLDER) (ACDelco #19116350) | N1 | 2008-2010 | 01 | | узнать цену | | 008 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL J/BLK LEAD) | | 2008-2010 | 02 | | узнать цену | | 009 | | COVER, MULTIUSE RLY (SEE GROUP 02.000 "BLOCK/UNDERHOOD BEC" FOR DETAILED ILLUSTRATED VIEW) | | 2008-2010 | | | | | 010 | | BLOCK, FUSE (SEE GROUP 02.000 "BLOCK/UNDERHOOD BEC" FOR DETAILED ILLUSTRATED VIEW) | | 2008-2010 | | | | | 011 | 21021808 | NUT, STRTR SOL CBL (M8X1.25X6, BRASS) | N1 | 2008-2010 | 01 | | узнать цену | | 012 | 11588564 | BOLT, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (ENG WRG HARN GND) | | 2008-2010 | 02 | | узнать цену | | 013 | 11516703 | BOLT, HEX, M4.8X1.6X13, 20 OD, 6010M MAT, 6047M FIN (ENG WRG HARN BRKT (TO ENG RR)) (8.977) | | 2008-2010 | 01 | | узнать цену | | 014 | 15105348 | BRACKET, ENG WRG HARN (ATTACH TO TRANS) | N1 | 2008-2010 | 01 | | узнать цену | | 015 | 11514597 | NUT, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383) | | 2008-2010 | 01 | | узнать цену | | 016 | 11588337 | BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (ENG GND CBL (AT FRM)) | | 2008-2010 | 01 | | узнать цену | | 017 | 11562004 | BOLT, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (ENG WRG HARN BRKT) | | 2008-2010 | 02 | | узнать цену | | 018 | 11515756 | BOLT, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (ENG WRG HARN BRKT (TO ENG SI)) | | 2008-2010 | 02 | | узнать цену | | 019 | 11514623 | BOLT, HEX W/CON WA, M6X1X20 (ENG WRG HARN BRKT (TO ENG FRT)) | | 2008-2010 | 01 | | узнать цену | | 020 | 15773394 | BRACKET, ENG WRG HARN (TO ENG SI) | N1 (LH9, JJA) | 2010-2010 | 01 | | узнать цену | | 021 | 11515756 | BOLT, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (ENG WRG HARN BRKT (TO ENG SI)) | | 2008-2010 | 01 | | узнать цену |
|
|
