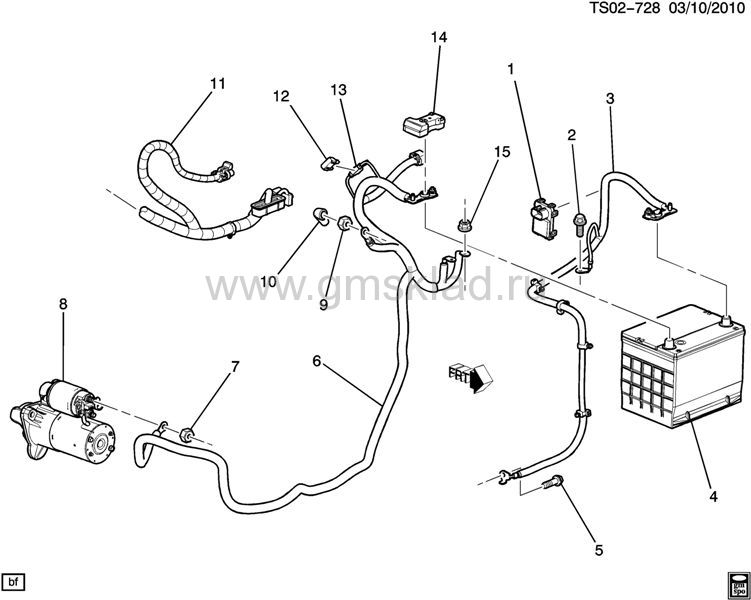

(TS02-728) 2010 N1 ПРОВОДА АККУМУЛЯТОРА (LH9/5.3P)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25826405 | MODULE, GEN BAT CONT (PART OF 3) | N1 | 2009-2010 | 01 | | узнать цену | | 002 | 11588337 | BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BAT NEG CBL) | | 2009-2010 | 01 | | узнать цену | | 003 | 25926166 | CABLE, BAT NEG (INCLS 1) (ACDelco #25926166) | N1 (LH9, JJA) | 2010-2010 | 01 | | узнать цену | | 004 | | BATTERY, (SEE GROUP 02.000 "BATTERY MOUNTING" FOR DETAILED ILLUSTRATED VIEW) (CCA 590) (TOP POST) (232X174X198) (US DEALERS CONTACT ACDELCO WD FOR ORDERING & PRICING INFO) | | 2009-2010 | | | | | 005 | 11588564 | BOLT, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (BAT NEG CBL GND) | | 2009-2010 | 01 | | узнать цену | | 006 | 19116853 | CABLE, BAT POS (INCLS 10, 12-14) (PART OF 11) (ACDelco #19116853) | N1 (LH9, M30) (EXC RHD) | 2010-2010 | 01 | | узнать цену | | 006 | 19117708 | CABLE, BAT POS (INCLS 10, 12-14) (PART OF 11) (ACDelco #19117708) | N1 (LH9, M30, RHD) (EXPORT) | 2010-2010 | 01 | | узнать цену | | 007 | 21021808 | NUT, STRTR SOL CBL (M8X1.25X6, BRASS) | N1 | 2009-2010 | 01 | | узнать цену | | 008 | | STARTER, (SEE GROUP 02.000 "STARTER MOTOR" FOR DETAILED ILLUSTRATED VIEW) | | 2009-2010 | | | | | 009 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL J/BLK LEAD) | | 2009-2010 | 01 | | узнать цену | | 010 | 12146809 | COVER, GEN WIRE TERM (PART OF 6, 11) (BLACK) (TERMINAL BOOT COVER) (2.343) | N1 | 2009-2010 | 01 | | узнать цену | | 011 | | HARNESS, ENG WRG (INCLS 6, 10, 12-14) (SEE GROUP 02.000 "WIRING HARNESS/ENGINE" FOR DETAILED ILLUSTRATED VIEW) | | 2009-2010 | | | | | 012 | 12092079 | FUSE, 10A, MINI, RED (PART OF 6, 11) | | 2009-2010 | 01 | | узнать цену | | 013 | 19116350 | HOLDER, WRG HARN FUSE (PART OF 6, 11) (BLACK) (2-WAY FUSEHOLDER) (ACDelco #19116350) | N1 | 2009-2010 | 01 | | узнать цену | | 014 | 19116717 | COVER, BAT POS CBL TERM (PART OF 6, 11) | N1 | 2009-2010 | 01 | | узнать цену | | 015 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL J/BLK LEAD) | | 2009-2010 | 02 | | узнать цену |
|
|
