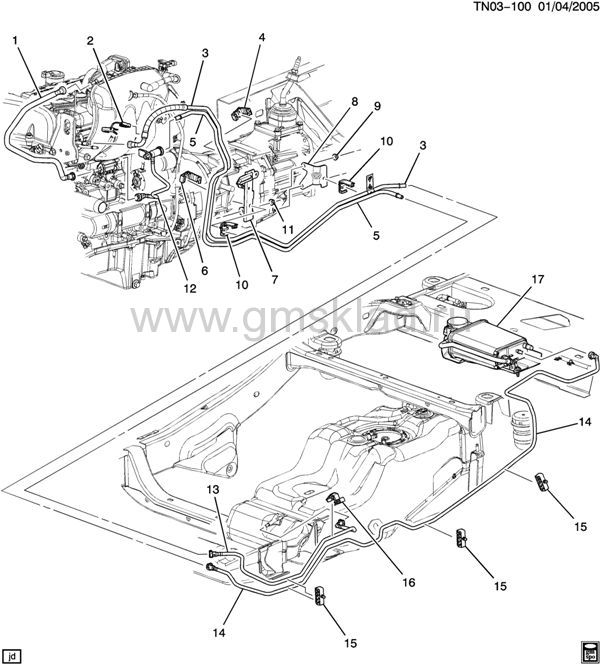

(TN03-100) 2009-2010 N1(06) СИСТЕМА ПОДАЧИ ТОПЛИВА (LLR/3.7E)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 12577221 | TUBE, EVAP EMIS CNSTR PURGE | N1 (LLR) | 2007-2010 | 01 | | узнать цену | | 002 | 25654373 | CLIP, FUEL FEED & RTN HOSE (PART OF 3) (117.6X65.5 X12.4) (TETHERING SECONDARY CLIP 5/16" & 3/8") (STAINLESS STEEL) | N1 (LLR, JJA) | 2008-2010 | 01 | | узнать цену | | 003 | 15885442 | PIPE, FUEL FEED (INCLS 2) | N1 (LLR, JJA) | 2009-2010 | 01 | | узнать цену | | 004 | 15080400 | CLIP, FUEL FEED & EVAP EMIS PIPE (TWO TUBE) | N1 (LLR, JJA) | 2009-2010 | 01 | | узнать цену | | 004 | 15080400 | CLIP, FUEL FEED & EVAP EMIS PIPE (TWO TUBE) (3.162) | N1 (LLR, JJA) | 2009-2010 | 01 | | узнать цену | | 005 | 15080397 | PIPE, EVAP EMIS | N1 (LLR, JJA) | 2008-2010 | 01 | | узнать цену | | 006 | 15080402 | CLIP, FUEL FEED & EVAP EMIS PIPE (2 LINE RETAINER WITH PUSH IN CLIP) | N1 (LLR, JJA) | 2009-2010 | 01 | | узнать цену | | 007 | 15131554 | BRACKET, FUEL PIPE | N1 (06-43) (LLR, JJA) | 2009-2010 | 01 | | узнать цену | | 008 | 15080373 | BRACKET, FUEL PIPE | N1 (LLR, MA5, MD8, JJA) | 2010-2010 | 01 | | узнать цену | | 009 | 11514596 | NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL FEED FRT PIPE) (8.915) (ACDelco #11514596) | | 2006-2010 | 02 | | узнать цену | | 010 | 15080401 | CLIP, FUEL FEED & EVAP EMIS PIPE (2 LINE RETAINER LESS PUSH IN CLIP) | N1 (LLR) | 2010-2010 | 01 | | узнать цену | | 011 | 11514596 | NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL PIPE BRKT) (8.915) (ACDelco #11514596) | | 2006-2010 | 02 | | узнать цену | | 012 | 15850249 | PIPE, EVAP EMIS | N1 (LLR, JJA) | 2008-2010 | 01 | | узнать цену | | 013 | 15086256 | PIPE, FUEL FEED (RR PIPE) | N153 (06) (LLR) | 2009-2010 | 01 | | узнать цену | | 014 | 15086262 | PIPE, EVAP EMIS | N153 (06) (LLR) | 2009-2010 | 01 | | узнать цену | | 015 | 15163622 | CLIP - HOLDS (2) DIA9.52 FUEL LINE AND (2) DIA5.17 BRAKELINE, PRONG (BRK & FUEL PIPE) | | 2006-2010 | 06 | | узнать цену | | 016 | 15170398 | CLIP, BRK & FUEL PIPE (HOLDS (2)9.5 & (2)5.19 LINES) (4.686) | N1 | 2006-2010 | 01 | | узнать цену | | 016 | 15170398 | CLIP, BRK & FUEL PIPE (HOLDS (2)9.5 & (2)5.19 LINES) | N1 | 2006-2010 | 01 | | узнать цену | | 017 | | CANISTER, EVAP EMIS (SEE GROUP 03.000 "VAPOR CANISTER LINES & CANISTER" FOR DETAILED ILLUSTRATED VIEW) | | 2006-2010 | | | |
|
|
