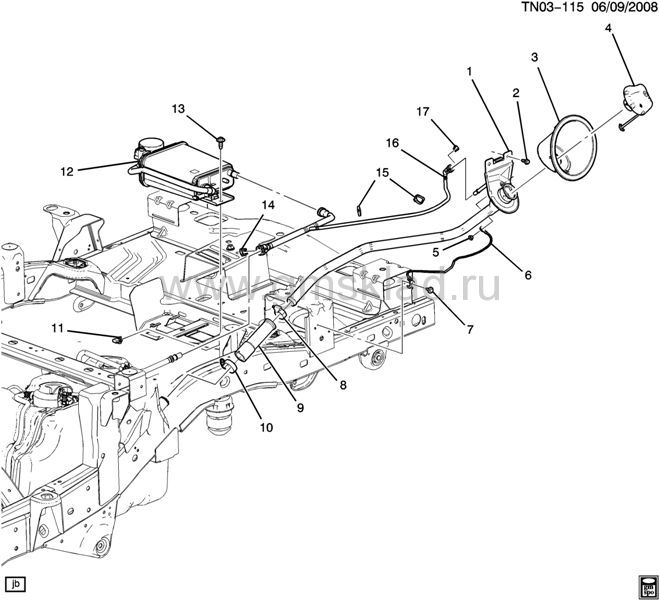

(TN03-115) 2009-2010 N1(43) ЗАЛИВНЫЕ ТРУБКИ И ШЛАНГИ ТОПЛИВНОГО БАКА
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 93356462 | PIPE, F/TNK FIL (INCLS 5, 6, 8-10, 14-16) | N155 (43) (LLR) | 2009-2010 | 01 | | узнать цену | | 001 | 94723992 | PIPE, F/TNK FIL (INCLS 5, 6, 8-10, 14-16) | N155 (43) (LH9) | 2010-2010 | 01 | | узнать цену | | 002 | 11588712 | BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (F/TNK FIL PIPE BRKT) | | 2009-2010 | 02 | | узнать цену | | 003 | 94737502 | HOUSING, F/TNK FIL PIPE (GRAY) | N155 (43) | 2009-2010 | 01 | | узнать цену | | 004 | 24300044 | CAP, F/TNK FIL (ACDelco #GT297) | N1 (N05) | 2009-2010 | 01 | | узнать цену | | 004 | 25827646 | CAP, F/TNK FIL (ACDelco #GT306) | N1 (EXC N05) | 2009-2010 | 01 | | узнать цену | | 005 | | RIVET, F/TNK FIL PIPE GND STRP (PART OF 1) | | 2009-2010 | | | | | 006 | 12337820 | STRAP, 15" TIE STRAP (PART OF 1) (ACDelco #12337820) | | 2009-2010 | 01 | | узнать цену | | 007 | 11588337 | BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (F/TNK FIL PIPE GND) | | 2009-2010 | 01 | | узнать цену | | 008 | 11610236 | CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (PART OF 1) | | 2009-2010 | 01 | | узнать цену | | 009 | | HOSE, F/TNK FIL (PART OF 1) | (LLR) | 2010-2010 | | | | | 009 | 94723997 | HOSE, F/TNK FIL (PART OF 1) | N155 (43) (LH9) | 2010-2010 | 01 | | узнать цену | | 010 | 11610236 | CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (PART OF 1) | | 2009-2010 | 01 | | узнать цену | | 011 | 11561740 | NUT, U-SHAPED, M8X1.25, 14.2 WIDE, 38.5 OVERALL LENGTH, 28 C-C, SAE 1050 STL, GM7111M (FRT LWR CONT ARM) | | 2009-2010 | 01 | | узнать цену | | 012 | 94718730 | CANISTER, EVAP EMIS (SEE GROUP 03.000 "VAPOR CANISTER LINES & CANISTER" FOR DETAILED ILLUSTRATED VIEW) (ACDelco #94718730) | N155 (43) (LH9, LLR) | 2010-2010 | 01 | | узнать цену | | 013 | 11570082 | BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (EVAP EMIS CNSTR) (ACDelco #11570082) | | 2009-2010 | 01 | | узнать цену | | 014 | 21992746 | RETAINER, FUEL FEED HOSE CONN (PART OF 1) (5/8 INCH QUICK CONNECT RETAINER CLIP) | N155 (43) (LH9, LLR) | 2010-2010 | 01 | | узнать цену | | 015 | 12337820 | STRAP, 15" TIE STRAP (PART OF 1) (ACDelco #12337820) | | 2009-2010 | 02 | | узнать цену | | 016 | | HOSE, F/TNK FIL VENT (PART OF 1) | | 2009-2010 | | | | | 017 | 21992746 | RETAINER, FUEL FEED HOSE CONN (5/8 INCH QUICK CONNECT RETAINER CLIP) | N1 | 2009-2010 | 01 | | узнать цену |
|
|
