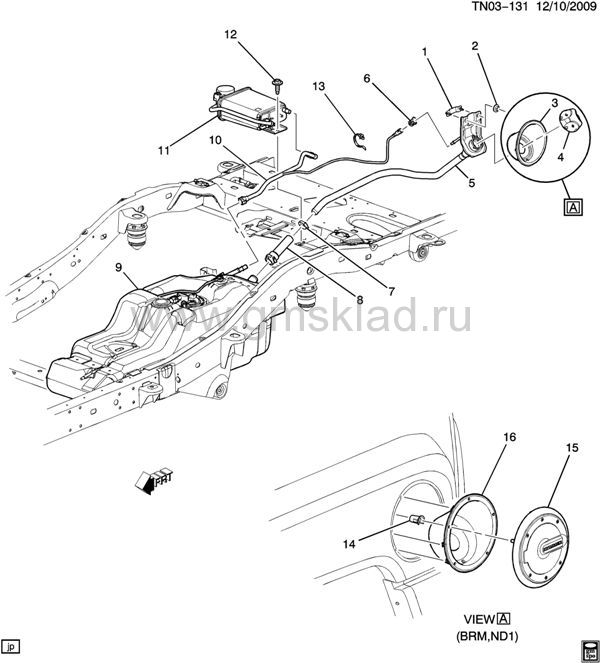

(TN03-131) 2010 N1(06) ЗАЛИВНЫЕ ТРУБКИ И ШЛАНГИ ТОПЛИВНОГО БАКА (LLR/3.7E,LH9/5.3P)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15084099 | BRACKET, F/TNK FIL PIPE | N153 (06) | 2010-2010 | 01 | | узнать цену | | 002 | 11514517 | NUT, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (F/TNK FIL PIPE BRKT) | | 2010-2010 | 02 | | узнать цену | | 003 | 15794626 | HOUSING, F/TNK FIL PIPE | N153 (06) | 2010-2010 | 01 | | узнать цену | | 004 | 24300044 | CAP, F/TNK FIL (ACDelco #GT297) | N1 (N05) | 2010-2010 | 01 | | узнать цену | | 004 | 25827646 | CAP, F/TNK FIL (ACDelco #GT306) | N1 (EXC N05) | 2010-2010 | 01 | | узнать цену | | 005 | 15877575 | PIPE, F/TNK FIL (INCLS 6, 7, 8, 10, 13) | N153 (06) (LLR) | 2010-2010 | 01 | | узнать цену | | 005 | 20811497 | PIPE, F/TNK FIL (FILLER PIPE ONLY) | N153 (06) (LH9) | 2010-2010 | 01 | | узнать цену | | 005 | 25873216 | PIPE, F/TNK FIL (INCLS 6, 7, 8, 10, 13) | N153 (06) (LH9) | 2010-2010 | 01 | | узнать цену | | 006 | | CLIP, TUBULAR (PART OF 5, 10) | | 2010-2010 | | | | | 007 | 11610235 | CLAMP, HEX HD WORM GEAR, TYPE F, SIZE 16, 38MM OPEN, SS (PART OF 5) (3.003) | | 2010-2010 | 01 | | узнать цену | | 008 | 20811499 | HOSE, F/TNK FIL (PART OF 5) | N153 (06) (LH9) | 2010-2010 | 01 | | узнать цену | | 008 | 25821154 | HOSE, F/TNK FIL (PART OF 5) | N153 (06) (LLR) | 2010-2010 | 01 | | узнать цену | | 009 | | TANK, FUEL (SEE GROUP 03.000 "FUEL TANK" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2010 | | | | | 010 | 15087110 | HOSE, F/TNK FIL VENT (PART OF 5) (INCLS 6) | N153 (06) (LH9, LLR) | 2010-2010 | 01 | | узнать цену | | 011 | | CANISTER, EVAP EMIS (SEE GROUP 03.000 "VAPOR CANISTER LINES & CANISTER" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2010 | | | | | 012 | 11570082 | BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (EVAP EMIS CNSTR) (ACDelco #11570082) | | 2010-2010 | 01 | | узнать цену | | 013 | 12337820 | STRAP, 15" TIE STRAP (PART OF 5) (ACDelco #12337820) | | 2010-2010 | 03 | | узнать цену | | 014 | | CLIP, F/TNK FIL DR (PART OF 15) | | 2010-2010 | | | | | 015 | 19165921 | DOOR, F/TNK FIL PIPE RSTR (INCLS 14, 16) | N153 (06) (BRM, ND1) (EXPORT) | 2010-2010 | 01 | | узнать цену | | 016 | | HOUSING, F/TNK FIL PIPE (PART OF 15) | | 2010-2010 | | | |
|
|
