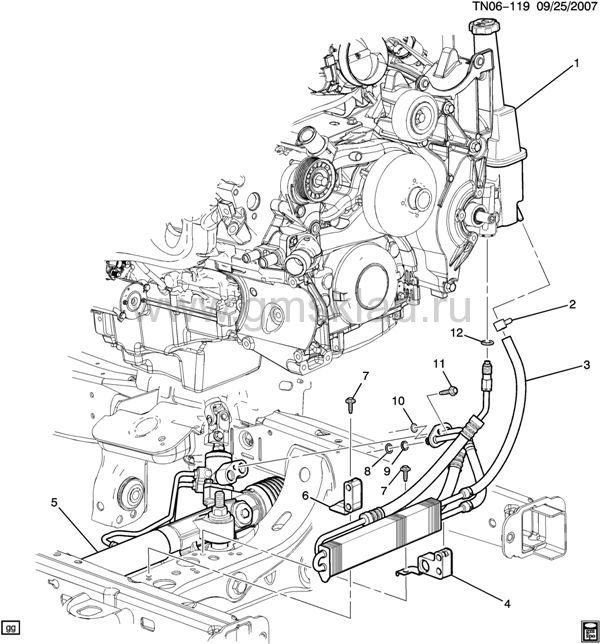

(TN06-119) 2010 N1 ЛИНИИ НАСОСА ГИДРОУСИЛИТЕЛЯ РУЛЕВОГО УПРАВЛЕНИЯ (LH9/5.3P, EXC RHD)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25932020 | PUMP, P/S (SEE GROUP 06.000 "STEERING PUMP ASSEMBLY" FOR DETAILED ILLUSTRATED VIEW) (ACDelco #25932020) | N1 (LH9) | 2010-2010 | 01 | | узнать цену | | 002 | 11571140 | CLAMP, SPRINGBAND, 16 DIA, 15 WIDTH, STL PER GM6298M, GMW14083 (PART OF 3) | | 2008-2010 | 01 | | узнать цену | | 003 | 20933947 | HOSE, P/S GR INL & OTLT (INCLS 2, 4, 6-12) | N1 (LH9) (EXC RHD) | 2010-2010 | 01 | | узнать цену | | 004 | | BRACKET, P/S GR INL & OTLT PIPE CLIP (PART OF 3) | | 2010-2010 | | | | | 005 | 94725465 | GEAR, STRG (W/STRG LNKG TIE ROD) (SEE GROUP 06.000 "STEERING GEAR ASSEMBLY" FOR DETAILED ILLUSTRATED VIEW) | N155 (43) (EXC RHD) | 2009-2010 | 01 | | узнать цену | | 005 | 25957397 | GEAR, STRG (W/STRG LNKG TIE ROD) (SEE GROUP 06.000 "STEERING GEAR ASSEMBLY" FOR DETAILED ILLUSTRATED VIEW) | N153 (06) (EXC RHD) | 2009-2010 | 01 | | узнать цену | | 006 | | BRACKET, P/S GR INL & OTLT PIPE CLIP (PART OF 3) | | 2010-2010 | | | | | 007 | 11570136 | BOLT, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (PART OF 3) | | 2008-2010 | 02 | | узнать цену | | 008 | 15869847 | SEAL, P/S GR INL PIPE (O RING) (PART OF 3) | N1 (LH9, LLR) | 2010-2010 | 01 | | узнать цену | | 009 | 15869847 | SEAL, P/S GR INL PIPE (O RING) (PART OF 3) | N1 (LH9, LLR) | 2010-2010 | 01 | | узнать цену | | 010 | 19122174 | SEAL, P/S GR OTLT HOSE (O-RING) (PART OF 3) | N1 | 2008-2010 | 01 | | узнать цену | | 011 | 11516484 | BOLT/SCREW, M6X1X25, 17THD, 14.2 OD, 9.8, 7114M, MACH, 6MM P-POINT (PART OF 3) | | 2008-2010 | 01 | | узнать цену | | 012 | 15869849 | SEAL, P/S GR INL HOSE (O RING) (PART OF 3) (6.609) | N1 (LH9, LLR) | 2010-2010 | 01 | | узнать цену |
|
|
