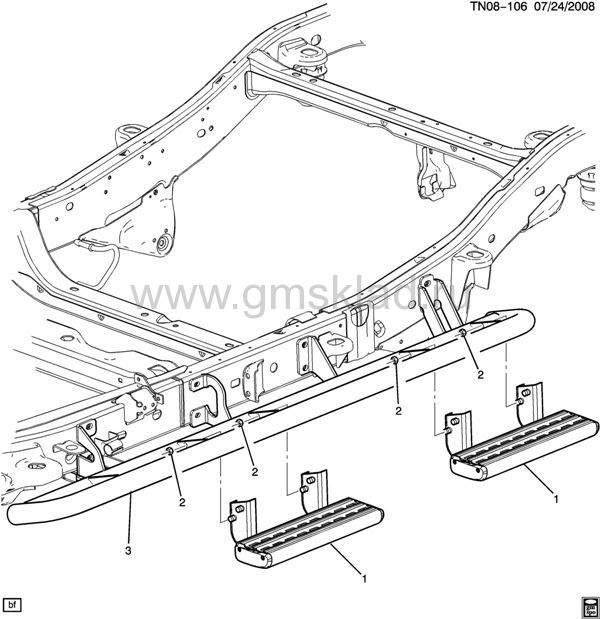

(TN08-106) 2007-2010 N1(06) ASSIST STEP (REMOVABLE ASSIST BVN)
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | 17800980 | STEP, ASST (GRAY) (INSTALL .20) (2.5KGS) (AL) (REMOVABLE) (INCLS 1 STEP & HARDWARE PKG) (*KIT1) | N1 (06) (BVN) | 2007-2010 | AR | узнать цену | |
| 002 | NUT, ASST STEP BRKT (*KIT1, KIT2) | 2007-2010 | |||||
| 003 | PROTECTOR, RKR PNL (SEE GROUP 08.000 "GUARD/ROCKER PANEL" FOR DETAILED ILLUSTRATED VIEW) (GRAY) (INSTALL .50) (35.8KGS) (STEEL) (INCLS RH & LH PROTR & HARDWARE) | 2007-2010 | |||||
| K01 | 12498473 | STEP, ASST (INCLS 1, 2) (GRAY) (INSTALL .20) (5.0KGS) (AL) (REMOVABLE) (INCLS 2 STEPS & HARDWARE PKG) | N1 (06) (BVN) | 2007-2010 | 01 | узнать цену |
