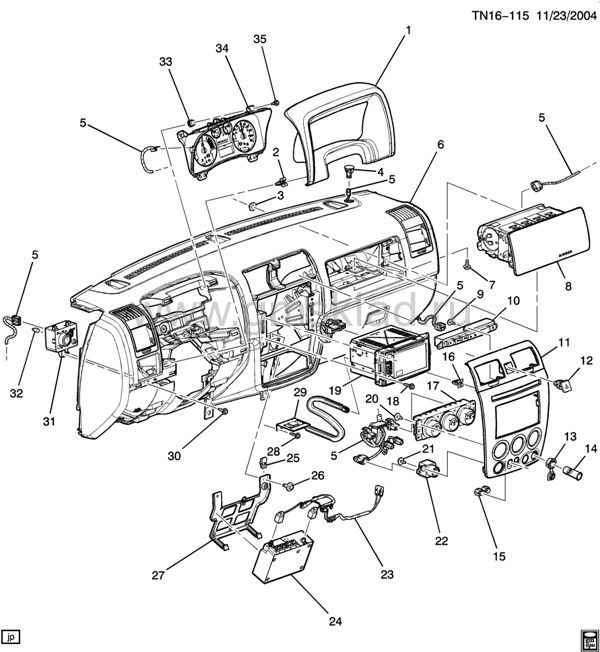

(TN16-115) 2010 N1 ПАНЕЛЬ ПРИБОРОВ И СВЯЗАННЫЕ ДЕТАЛИ PART 2 ELECTRICAL(LLR/3.7E,LH9/5.3P)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15797631 | PLATE, I/P CSTR TR (INCLS 2) | N1 | 2006-2010 | 01 | | узнать цену | | 002 | 11588650 | CLIP, 12X14X16.6, GM4345M (PART OF 1) | | 2006-2010 | 04 | | узнать цену | | 003 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (COMN INTERFACE MDL) | | 2006-2010 | 02 | | узнать цену | | 004 | 15174892 | SENSOR, HDLP AUTO CONT AMB LGT | N1 | 2006-2010 | 01 | | узнать цену | | 005 | | HARNESS, I/P WRG (SEE GROUP 02.000 "WIRING HARNESS, INSTRUMENT PANEL" FOR DETAILED ILLUSTRATED VIEW) | | 2006-2010 | | | | | 006 | 15839781 | PANEL, INST (INCLS 33) (SEE GROUP 16.000 "INSTRUMENT PANEL, PART 1" FOR DETAILED ILLUSTRATED VIEW) | N1 (EXC BRM, RHD) | 2007-2010 | 01 | | узнать цену | | 007 | 11609669 | BOLT, I/P AIRBAG (M6X1X20, 12 THD) (CONTAINS CONDUCTIVE FINISH FOR ELECTRICAL GROUND) (8.900) | N1 | 2007-2010 | 02 | | узнать цену | | 008 | 25809845 | AIRBAG, I/P (EBONY) | N1 (19I, 27I) (EXC HH3, RHD) | 2008-2010 | 01 | | узнать цену | | 008 | 15850867 | AIRBAG, I/P (EBONY) | N1 (RHD, 19I) (EXC HH3) (EXPORT) | 2007-2010 | 01 | | узнать цену | | 008 | 15850867 | AIRBAG, I/P (EBONY) | N1 (RHD, 27I) (EXC HH3) (EXPORT) | 2008-2010 | 01 | | узнать цену | | 009 | 11609465 | BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (RDO) (8.977) | | 2006-2010 | 03 | | узнать цену | | 010 | 15800080 | SWITCH, TRFER CASE SEL | N1 (EXC G93, G94, Z49) | 2009-2010 | 01 | | узнать цену | | 010 | 15937751 | SWITCH, TRFER CASE SEL | N1 (G93, G94) (EXC Z49) | 2009-2010 | 01 | | узнать цену | | 010 | 15937752 | SWITCH, TRFER CASE SEL | N1 (G93, G94, Z49) | 2009-2010 | 01 | | узнать цену | | 010 | 15800078 | SWITCH, TRFER CASE SEL | N1 (BRM, Z49) (EXC G93, G94) (EXPORT) | 2010-2010 | 01 | | узнать цену | | 011 | 20756985 | PLATE, I/P ACSRY TR (INCLS 15, 16) (QUEST) (CTR STACK ASM) | N1 | 2006-2010 | 01 | | узнать цену | | 012 | 15101469 | SWITCH, HAZARD WRNG (ACDelco #15101469) | N1 | 2006-2010 | 01 | | узнать цену | | 013 | 15187371 | RETAINER, ACSRY PWR RCPT (EBONY) (INCLS COVER) | N1 | 2006-2010 | 02 | | узнать цену | | 014 | 25774623 | RECEPTACLE, I/P ACSRY PWR (EBONY) (W/O COVER) (ACSRY PWR RECEPTACLE ASSEM LABELED 25774623) (12V) | N153 (06) | 2006-2010 | 01 | | узнать цену | | 015 | 15821574 | INSERT, I/P ACSRY TR PLT (PART OF 11) | N1 | 2006-2010 | 01 | | узнать цену | | 016 | 11588650 | CLIP, 12X14X16.6, GM4345M (PART OF 11) | | 2006-2010 | 07 | | узнать цену | | 017 | 25920831 | CONTROL, HTR & A/C (ACDelco #15-73909) | N1 | 2006-2010 | 01 | | узнать цену | | 018 | 11589012 | BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO) (9.665) | | 2006-2010 | 04 | | узнать цену | | 019 | 25896525 | RADIO, AM/FM STEREO & AUDIO DISC PLYR & NAVN (ACDelco #25896525) | N1 (UM8) (EXC BRM, UL8) | 2009-2010 | 01 | | узнать цену | | 019 | 25896525 | RADIO, AM/FM STEREO & AUDIO DISC PLYR & NAVN (ACDelco #25896525) | N155 (43) (UB0, UC6, UQA) (EXC UL2, UL8) | 2010-2010 | 01 | | узнать цену | | 019 | 25896525 | RADIO, AM/FM STEREO & AUDIO DISC PLYR & NAVN (ACDelco #25896525) | N153 (06) (EXC UL8) | 2010-2010 | 01 | | узнать цену | | 019 | 25896526 | RADIO, AM/FM STEREO & AUDIO DISC PLYR & NAVN (ACDelco #25896526) | N155 (43) (UL8, UM8) (EXPORT) | 2009-2010 | 01 | | узнать цену | | 019 | 25896526 | RADIO, AM/FM STEREO & AUDIO DISC PLYR & NAVN (ACDelco #25896526) | N153 (06) (UL8, UM8) (EXPORT) | 2010-2010 | 01 | | узнать цену | | 020 | 11609465 | BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (HTR & A/C CONT) (8.977) | | 2006-2010 | 04 | | узнать цену | | 021 | 11509428 | SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (WSW & WSWA SW) (8.977) | | 2006-2010 | 02 | | узнать цену | | 022 | 15270031 | SWITCH, R/WDO WPR & WA (ACDelco #15270031) | N1 | 2009-2010 | 01 | | узнать цену | | 023 | 25967013 | CABLE, M/TEL & VEH LOC ANT (9.675) | N1 (UE1) | 2006-2010 | 01 | | узнать цену | | 023 | 25967013 | CABLE, M/TEL & VEH LOC ANT (9.675) | N1 (UE1) | 2006-2010 | 01 | | узнать цену | | 024 | 20830941 | MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) | N1 (UE1, UPF) | 2009-2010 | 01 | | узнать цену | | 024 | 20830942 | MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) | N1 (06-43) (UE1) (EXC UPF) | 2009-2010 | 01 | | узнать цену | | 025 | 11570097 | NUT, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (PART OF 27) | | 2006-2010 | 02 | | узнать цену | | 026 | 11517484 | BOLT, HEX, M6X1X20, 9 THD, 17 OD, 9.8, 6280M, MACH, P-PT (PART OF 27) | | 2006-2010 | 02 | | узнать цену | | 027 | 15287030 | BRACKET, NAVN RCVR (INCLS 25, 26) | N1 (UE1) | 2006-2010 | 01 | | узнать цену | | 028 | 11609465 | BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (RDO) (8.977) | | 2006-2010 | 02 | | узнать цену | | 029 | 10355766 | MODULE, RDO ANT (ACDelco #10355766) | N1 | 2006-2010 | 01 | | узнать цену | | 030 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (HDLP SW) | | 2006-2010 | 01 | | узнать цену | | 031 | 15101465 | SWITCH, HDLP (ACDelco #D1553H) | N153 (06) (EXC BRM, UE1) | 2007-2010 | 01 | | узнать цену | | 031 | 15101467 | SWITCH, HDLP (ACDelco #D1555H) | N153 (06) (UE1) (EXC BRM) | 2007-2010 | 01 | | узнать цену | | 031 | 15101465 | SWITCH, HDLP (ACDelco #D1553H) | N155 (43) (EXC UE1) | 2009-2010 | 01 | | узнать цену | | 031 | 15101467 | SWITCH, HDLP (ACDelco #D1555H) | N155 (43) (UE1) | 2009-2010 | 01 | | узнать цену | | 031 | 25861132 | SWITCH, HDLP (ACDelco #D1524J) | N1 (BRM) (EXC T79, UE1) (EXPORT) | 2007-2010 | 01 | | узнать цену | | 031 | 25861131 | SWITCH, HDLP (ACDelco #D1523J) | N1 (BRM, T79) (EXPORT) | 2007-2010 | 01 | | узнать цену | | 032 | 09425542 | BULB, LAMP #168 (CTSY) (ACDelco #L168) | | 2006-2010 | 02 | | узнать цену | | 033 | 11610157 | NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 6) (10.701) | | 2006-2010 | 04 | | узнать цену | | 034 | 25946692 | CLUSTER, INST (ACDelco #25946692) | N1 (MA5) (EXC BRM, RHD, UC2, U19) | 2009-2010 | 01 | | узнать цену | | 034 | 25946694 | CLUSTER, INST (ACDelco #25946694) | N1 (LLR, M30) (EXC BRM, RHD, UC2, U19) | 2008-2010 | 01 | | узнать цену | | 034 | 25946690 | CLUSTER, INST (ACDelco #25946690) | N1 (LH9, M30) (EXC BRM, RHD, UC2, U19) | 2010-2010 | 01 | | узнать цену | | 034 | 24300685 | CLUSTER, INST (ACDelco #24300685) | N1 (LLR, M30, RHD, U4P) (EXPORT) | 2008-2010 | 01 | | узнать цену | | 034 | 24300686 | CLUSTER, INST (ACDelco #24300686) | N1 (LLR, MA5, RHD, U4P) (EXPORT) | 2008-2010 | 01 | | узнать цену | | 034 | 24300290 | CLUSTER, INST (9.734) | N1 (MA5, BRM, UC2, U19) (EXC RHD) (EXPORT) | 2008-2010 | 01 | | узнать цену | | 034 | 24300387 | CLUSTER, INST (ACDelco #24300387) | N1 (LH9, M30, RHD, UC2, U19) (EXC V08) (EXPORT) | 2010-2010 | 01 | | узнать цену | | 034 | 24300687 | CLUSTER, INST (ACDelco #24300687) | N1 (LH9, M30, RHD, U4P) (EXPORT) | 2010-2010 | 01 | | узнать цену | | 034 | 24301229 | CLUSTER, INST (ACDelco #24301229) | N1 (LH9, M30, BRM, UC2, U19, V08) (EXC RHD) (EXPORT) | 2010-2010 | 01 | | узнать цену | | 034 | 24301236 | CLUSTER, INST (ACDelco #24301236) | N1 (LH9, M30, BRM, RHD, UC2, U19, V08) (EXPORT) | 2010-2010 | 01 | | узнать цену | | 034 | 25946695 | CLUSTER, INST (ACDelco #25946695) | N1 (LLR, M30, UC2, U19) (EXC BRM, RHD) (EXPORT) | 2008-2010 | 01 | | узнать цену | | 034 | 24300288 | CLUSTER, INST (ACDelco #24300288) | N1 (M30, RHD, UC2, U19) (EXPORT) | 2008-2010 | 01 | | узнать цену | | 034 | 24300289 | CLUSTER, INST (ACDelco #24300289) | N1 (MA5, RHD, UC2, U19) (EXPORT) | 2008-2010 | 01 | | узнать цену | | 034 | 24300291 | CLUSTER, INST (ACDelco #24300291) | N1 (LLR, M30, BRM, UC2, U19) (EXC RHD) (EXPORT) | 2008-2010 | 01 | | узнать цену | | 034 | 24300292 | CLUSTER, INST (ACDelco #24300292) | N1 (LH9, M30, BRM, UC2, U19) (EXC RHD, V08) (EXPORT) | 2010-2010 | 01 | | узнать цену | | 034 | 25946691 | CLUSTER, INST (ACDelco #25946691) | N1 (LH9, M30, UC2, U19) (EXC BRM, RHD) (EXPORT) | 2010-2010 | 01 | | узнать цену | | 034 | 25946693 | CLUSTER, INST (ACDelco #25946693) | N1 (MA5, UC2, U19) (EXC BRM, RHD) (EXPORT) | 2009-2010 | 01 | | узнать цену | | 035 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (INST CSTR T/PNL) | | 2006-2010 | 04 | | узнать цену |
|
|
