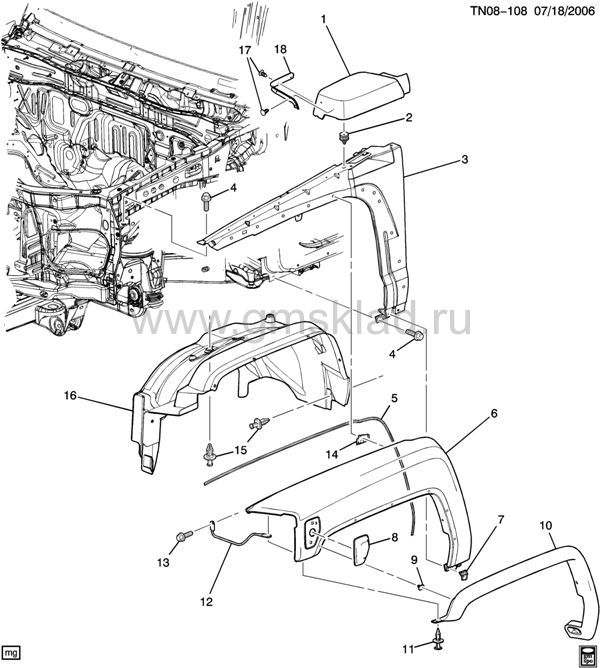

(TN08-108) 2009-2010 N1(06) КРЫЛО И КОЛЕСНАЯ АРКА/ПЕРЕДНЯЯ ЧАСТЬ (B74)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 19120871 | COVER, FRT INT AIR DUCT HOLE (INCLS 2, 17, 18) (PAINT TO MATCH) | N1 | 2007-2010 | 01 | L | узнать цену | | 001 | 19120871 | COVER, FRT INT AIR DUCT HOLE (INCLS 2, 17, 18) | N1 | 2010-2010 | 01 | L | узнать цену | | 001 | 19120872 | COVER, FRT INT AIR DUCT HOLE (INCLS 2, 17, 18) | N1 | 2010-2010 | 01 | R | узнать цену | | 002 | 11519031 | RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 1) | | 2007-2010 | 08 | | узнать цену | | 003 | 25971231 | FENDER, FRT (BUILT W/220MM HOOD BUMPER) | N1 | 2007-2010 | 01 | R | узнать цену | | 003 | 25971232 | FENDER, FRT | N1 | 2007-2010 | 01 | L | узнать цену | | 004 | 11517518 | BOLT, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (F/FDR) (ACDelco #11517518) | | 2007-2010 | 14 | | узнать цену | | 005 | 15814597 | SEAL, F/FDR FLARE (CUT TO LENGTH) | N1 | 2007-2010 | 02 | | узнать цену | | 006 | 15912633 | FLARE, F/FDR (W/SEAL) | N1 (B74) | 2007-2010 | 01 | L | узнать цену | | 006 | 15912634 | FLARE, F/FDR (W/SEAL) | N1 (B74) | 2007-2010 | 01 | R | узнать цену | | 007 | 11518988 | CLIP, 20X19.8X2.5, ACETAL COPOLYMER (F/FDR FLARE RET (PUSH ON)) (8.950) | | 2007-2010 | 02 | | узнать цену | | 008 | | LAMP, FRT SI MKR (SEE GROUP 02.000 "LAMPS/FRONT" FOR DETAILED ILLUSTRATED VIEW) | | 2007-2010 | | | | | 009 | 11588818 | CLIP, F/FDR WHL OPG MLDG (7.831) | N1 | 2007-2010 | 12 | | узнать цену | | 010 | 15822884 | MOLDING, F/FDR WHL OPG | N1 (B74) | 2007-2010 | 01 | L | узнать цену | | 010 | 15822885 | MOLDING, F/FDR WHL OPG | N1 (B74) | 2007-2010 | 01 | R | узнать цену | | 011 | 11518017 | RETAINER, 25 LG, 20.5 OD, 8.0 HOLE, 6.2-8.2 PNL, NYLON, 6/6, BLK (F/FDR FLARE RET (PUSH ON)) | | 2007-2010 | 02 | | узнать цену | | 012 | 15839279 | BRACE, F/FDR LWR FRT MLDG REINF | N1 | 2007-2010 | 01 | L | узнать цену | | 012 | 15839280 | BRACE, F/FDR LWR FRT MLDG REINF | N1 | 2007-2010 | 01 | R | узнать цену | | 013 | 11609989 | BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (F/FDR SI LWR FRT MLDG) | | 2007-2010 | 02 | | узнать цену | | 014 | 11562147 | RETAINER, F/FDR FLARE (NATURAL) (7MM THK SEAL) | N1 | 2007-2010 | 11 | | узнать цену | | 015 | 11589293 | RETAINER, PUSH-IN, FITS 8.5 DIA HOLE, 4.5-7 THK PNL, NYLON 6/6 GMP.PA66.0 (FRT W/H LNR) | | 2007-2010 | 22 | | узнать цену | | 016 | 25931996 | LINER, FRT W/H | N1 (LH9, LLR) | 2010-2010 | 01 | L | узнать цену | | 016 | 25931997 | LINER, FRT W/H | N1 (LH9, LLR) | 2010-2010 | 01 | R | узнать цену | | 017 | 21121668 | RETAINER, INT AIR BFL (PUSH IN) (PART OF 1) (12.804) | N1 | 2007-2010 | 05 | | узнать цену | | 018 | 15884125 | SEAL, A/CL (LEFT SIDE/COVER, FRT INT AIR DUCT) (PART OF 1) | N1 | 2007-2010 | 01 | L | узнать цену | | 018 | 15884126 | SEAL, A/CL (RIGHT SIDE/COVER, FRT INT AIR DUCT) (PART OF 1) | N1 | 2007-2010 | 01 | R | узнать цену |
|
|
