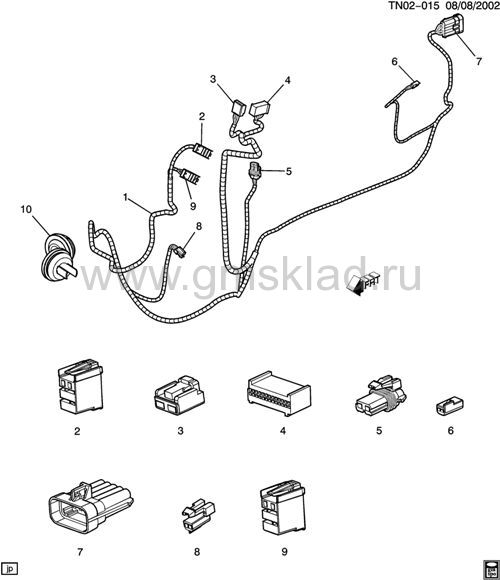

(TN02-015) - 2003-2007 N2 ЖГУТЫ ПРОВОДОВ-ПЕРЕДНЯЯ ДВЕРЬ
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | 15830248 | HARNESS, FRT S/D DR WRG (INCLS 2-10) | N2 | 2006-2007 | 01 | R | узнать цену |
| 001 | 15830249 | HARNESS, FRT S/D DR WRG (INCLS 2-10) | N257 (06-36) | 2005-2007 | 01 | L | узнать цену |
| 002 | 15306107 | CONNECTOR, GND BLK (PART OF 1) (BLACK) (6-WAY F W/LEADS) (2.530) (ACDelco #PT1268) | N2 | 2003-2007 | 01 | узнать цену | |
| 003 | 88986436 | CONNECTOR, SW-SI WDO & M/FUNC (PART OF 1) (4-WAY FEMALE W/LEADS) (10.777) | N257 (06-36) | 2005-2007 | 01 | узнать цену | |
| 004 | 88987996 | CONNECTOR, SW-SI WDO & M/FUNC (PART OF 1) (26-WAY FEMALE) (W/O LEADS) (WITH THREE RETAINERS W/LEVERS) | N2 | 2007-2007 | 01 | узнать цену | |
| 005 | 88988609 | CONNECTOR, MOT-WDO REG (PART OF 1) (GRAY) (2-WAY FEMALE) (W/LEADS) (10.783) (ACDelco #PT2072) | N257 (06-36) | 2005-2007 | AR | узнать цену | |
| 006 | 12166036 | CONNECTOR, LP-CTSY (PART OF 1) (CLEAR) (W/LEADS & LENS) (10.275) (ACDelco #LS66) | N257 (36) | 2006-2007 | 02 | узнать цену | |
| 009 | 15306198 | CONNECTOR, BLK-I/P WRG JUNC (PART OF 1) (BLACK) (12-WAY FEMALE W/LEADS) (ACDelco #PT1353) | N257 (06-36) | 2005-2007 | 01 | узнать цену | |
| 010 | 15369323 | GROMMET, FRT S/D DR WRG HARN (PART OF 1) | N257 | 2003-2007 | 02 | узнать цену |
