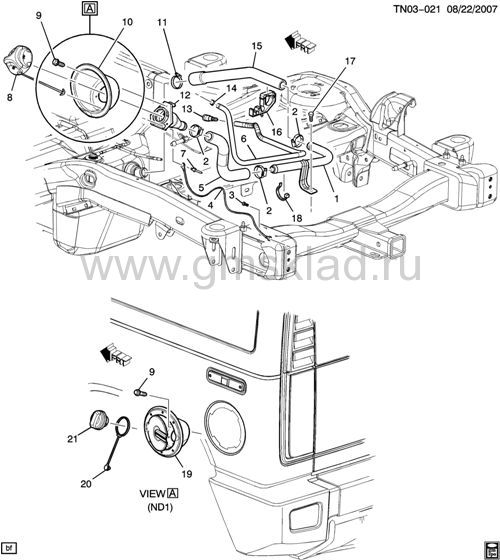

(TN03-021) - 2007 N2 ЗАПРАВОЧНАЯ ГОРЛОВИНА PIPES & HOSES
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | 25853757 | PIPE, F/TNK FIL (INCLS 2, 4-7, 11-16, 18) | N2 | 2007-2007 | 01 | узнать цену | |
| 002 | 11610235 | CLAMP, HEX HD WORM GEAR, TYPE F, SIZE 16, 38MM OPEN, SS (PART OF 1) (3.003) | 2007-2007 | 03 | узнать цену | ||
| 003 | 11588337 | БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CHAS WRG HARN TRLR LEAD) [БОЛТ М8] | 2007-2007 | 01 | узнать цену | ||
| 004 | 12337820 | STRAP, 15" TIE STRAP (PART OF 1) (ACDelco #12337820) | 2007-2007 | 02 | узнать цену | ||
| 005 | HOSE, F/TNK FIL (PART OF 1) | 2007-2007 | |||||
| 006 | HOSE, EVAP EMIS (PART OF 1) | 2007-2007 | |||||
| 007 | RIVET, F/TNK FIL PIPE GND STRP (PART OF 1) | 2007-2007 | |||||
| 008 | 25827646 | CAP, F/TNK FIL (ACDelco #GT306) [КРЫШКА ТОПЛИВНОГО БАКА] | N2 (EXC ND1) | 2007-2007 | 01 | узнать цену | |
| 009 | 11589012 | БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (F/TNK FIL PIPE SUPT) (9.665) [БОЛТ М4.2Х1.41Х25] | 2007-2007 | 03 | узнать цену | ||
| 010 | 15903412 | HOUSING, F/TNK FIL PIPE [КОЖУХ КРЫШКИ ТОПЛИВОЗАЛИВНОЙ ГОРЛОВИНЫ] | N2 (EXC ND1) | 2007-2007 | 01 | узнать цену | |
| 011 | 11561790 | CLAMP, F/TNK FIL HOSE (CLAMP, HEX HD WORM GEAR, TYPE F, SIZE 21, 55MM OPEN, SS, W/LOCATOR TAB) (PART OF 1) | N2 | 2007-2007 | 01 | узнать цену | |
| 012 | RESTRICTOR, F/TNK FIL PIPE (PART OF 1) | 2007-2007 | |||||
| 013 | CONNECTOR, EVAP EMIS RR HOSE (PART OF 1) | 2007-2007 | |||||
| 014 | 11561790 | CLAMP, F/TNK FIL HOSE (CLAMP, HEX HD WORM GEAR, TYPE F, SIZE 21, 55MM OPEN, SS, W/LOCATOR TAB) (PART OF 1) | N2 | 2007-2007 | 01 | узнать цену | |
| 015 | HOSE, F/TNK FIL (PART OF 1) | 2007-2007 | |||||
| 016 | CLIP, F/TNK FIL PIPE (PART OF 1) | 2007-2007 | |||||
| 017 | 11516885 | SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (F/TNK FIL & VENT HOSE BRKT) | 2007-2007 | 02 | узнать цену | ||
| 018 | 12337820 | STRAP, 15" TIE STRAP (PART OF 1) (ACDelco #12337820) | 2007-2007 | 02 | узнать цену | ||
| 019 | 15844367 | ДВЕРЬ, F/TNK FIL | N2 (ND1) | 2007-2007 | 01 | узнать цену | |
| 019 | 25839737 | ДВЕРЬ, F/TNK FIL (USE TOGETHER WITH 25861414) | N2 (ND1) (EXC WS2) | 2007-2007 | 01 | узнать цену | |
| 021 | 25820825 | CAP, F/TNK FIL (INCLS 20) (BUTTON TYPE TETHER) (ACDelco #GT289) | N2 (ND1) | 2007-2007 | 01 | узнать цену | |
| 021 | 25835357 | CAP, F/TNK FIL (INCLS 20) (ACDelco #GT315) | N2 (ND1) | 2007-2007 | 01 | узнать цену |
