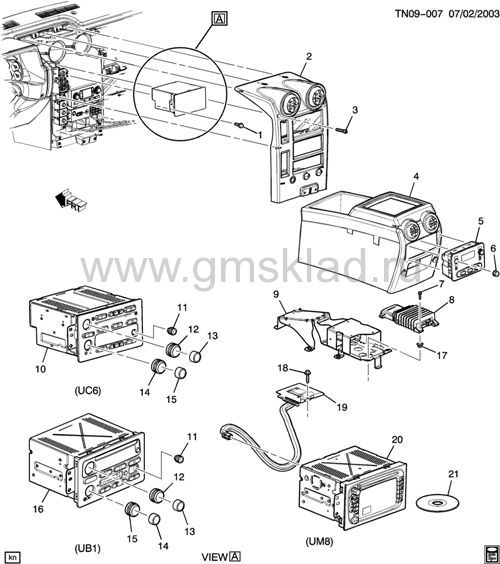

(TN09-007) - 2004-2007 N2 AUDIO SYSTEM/RADIO & CONTROLS
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | 11589012 | БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO) (9.665) [БОЛТ М4.2Х1.41Х25] | 2004-2007 | 03 | узнать цену | ||
| 002 | 25819206 | BEZEL, I/P ACSRY (SEE GROUP 16.000 "INSTRUMENT PANEL & RELATED PARTS" FOR DETAILED ILLUSTRATED VIEW) (EBONY) | N2 (EXC WS2) | 2006-2007 | 01 | узнать цену | |
| 003 | 11518916 | БОЛТ, I/P ACSRY BZL (6 X 1 X 45) (9.264) [ВИНТ] | N2 | 2004-2007 | 02 | узнать цену | |
| 004 | 88986338 | CONSOLE, F/FLR (SEE GROUP 16.000 "FLOOR CONSOLE" FOR DETAILED VIEW) (INCLS 5) (WHEAT) (LESS REAR PNL) | N257 (06) (50I) | 2004-2007 | 01 | узнать цену | |
| 004 | 89044119 | CONSOLE, F/FLR (SEE GROUP 16.000 "FLOOR CONSOLE" FOR DETAILED VIEW) (INCLS 5) (EBONY) | N257 (06-36) (48I) | 2005-2007 | 01 | узнать цену | |
| 005 | 15850810 | CONTROL, AM/FM STEREO & T/PLYR & CD PLYR RDO (PART OF 4) (INCLS 6) (ACDelco #15850810) [УПРАВЛЯЮЩЕЕ УСТРОЙСТВО] | N257 | 2006-2007 | 01 | узнать цену | |
| 006 | 12205116 | KNOB, RDO VOL CONT (PART OF 5) | N257 | 2005-2007 | 02 | узнать цену | |
| 007 | 11589012 | БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO SPKR AMPF) (9.665) [БОЛТ М4.2Х1.41Х25] | 2004-2007 | 04 | узнать цену | ||
| 008 | 15267753 | AMPLIFIER, RDO SPKR (ACDelco #15267753) | N257 (06) | 2004-2007 | 01 | узнать цену | |
| 008 | 15267754 | AMPLIFIER, RDO SPKR (ACDelco #15267754) [УСИЛИТЕЛЬ ЗВУКОВОЙ ЧАСТОТЫ ДЛЯ АВТОМАГНИТОЛЫ] | N257 (36) | 2005-2007 | 01 | узнать цену | |
| 009 | 15808655 | BRACKET, A/TRNS CONT (W/ALIGNED BOLTS TO SHIFTER ASM) | N257 | 2007-2007 | 01 | узнать цену | |
| 010 | 15927261 | RADIO, AM/FM STEREO & CLK & T/PLYR & CD PLYR (INCLS 11-15) (LABELED 15927261) (ACDelco #15927261) | N2 (UC6) | 2006-2007 | 01 | узнать цену | |
| 011 | 09354886 | KNOB, RDO TONE CONT (PART OF 10, 16) (AUDIO) (ACDelco #9354886) | N2 (UB1, UC6) | 2005-2007 | 01 | узнать цену | |
| 012 | 12201805 | KNOB, RDO VOL CONT (PART OF 10, 16) (RING) | N2 (UB1, UC6, UL8) | 2005-2007 | 01 | узнать цену | |
| 012 | 19115568 | KNOB, RDO VOL CONT (PART OF 10, 16) | N2 (UM8) | 2006-2007 | 01 | узнать цену | |
| 013 | 12210421 | PUSHBUTTON, RDO PWR (PART OF 10, 16) (9.652) | N2 (UC6) | 2005-2007 | 01 | узнать цену | |
| 013 | 12210421 | PUSHBUTTON, RDO PWR (PART OF 10, 16) | N2 (UC6) | 2005-2007 | 01 | узнать цену | |
| 013 | 12215318 | PUSHBUTTON, RDO PWR (PART OF 10, 16) (9.652) | N2 (UB1) | 2005-2007 | 01 | узнать цену | |
| 014 | 19116096 | PUSHBUTTON, RDO DISPLAY (PART OF 10, 16) (ACDelco #19116096) | N2 (UB1, UC6) | 2005-2007 | 01 | узнать цену | |
| 015 | 12201802 | KNOB, RDO TUNING CONT (PART OF 10, 16) (RING SOFT TOUCH AS MOLDED) (ACDelco #12201802) | N2 (UB1, UC6, UL8) | 2005-2007 | 01 | узнать цену | |
| 015 | 19115568 | KNOB, RDO TUNING CONT (PART OF 10, 16) | N2 (UM8) | 2006-2007 | 01 | узнать цену | |
| 016 | 15849619 | RADIO, AM/FM STEREO & CLK & T/PLYR & CD PLYR (INCLS 11-15) (ACDelco #15849619) (REQUIRES DEALER REPROGRAMMING.) [РАДИО В СБОРЕ] | N2 (UB1) | 2005-2007 | 01 | узнать цену | |
| 017 | 11589183 | NUT, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (RDO SPKR AMPF) | 2004-2007 | 04 | узнать цену | ||
| 018 | 11589012 | БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (COMN INTERFACE MDL BRKT) (9.665) [БОЛТ М4.2Х1.41Х25] | 2004-2007 | 01 | узнать цену | ||
| 019 | 15135178 | MODULE, RDO ANT (INCLS CABLE AND GPS ANTENNA) (ACDelco #15135178) | N257 (UM8) | 2004-2007 | 01 | узнать цену | |
| 020 | 15800000 | RADIO, AM/FM STEREO & AUDIO DISC PLYR & NAVN (ACDelco #15800000) | N2 (UM8) (EXC UL8) | 2005-2007 | 01 | узнать цену | |
| 020 | 15806581 | RADIO, AM/FM STEREO & AUDIO DISC PLYR & NAVN (ACDelco #15806581) | N2 (UL8, UM8) (EXPORT) | 2006-2007 | 01 | узнать цену | |
| 021 | DISC, NAVN DATA (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR LATEST SERVICE INFORMATION) | 2004-2007 |
