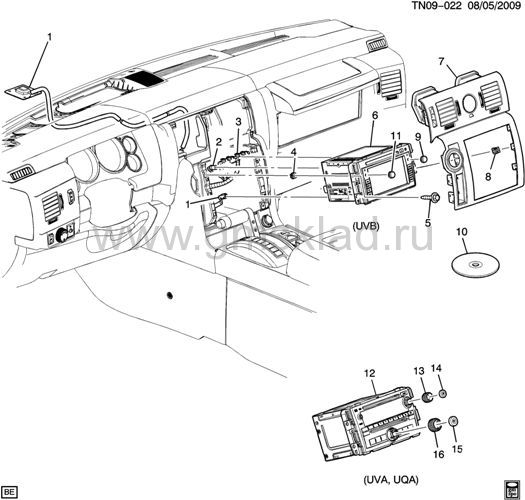

(TN09-022) - 2008-2009 N2 КРЕПЛЕНИЕ РАДИО
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15201798 | АНТЕННА, ELEK NAVIGATION (*GPS ANTENNA*) (ACDelco #15201798) | N2 (UVB) | 2008-2009 | 01 | | узнать цену | | 002 | | CABLE, M/TEL & NAVN ANT COAX (PART OF 3) | | 2008-2009 | | | | | 003 | | HARNESS, I/P WRG (INCLS 2) (SEE GROUP 02.000 "ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ" FOR DETAILED ILLUSTRATED VIEW) | | 2008-2009 | | | | | 004 | 11610157 | NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (I/P CARR) (10.701)
[ГАЙКА М4] | | 2008-2009 | 27 | | узнать цену | | 005 | 11589012 | БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO) (9.665)
[БОЛТ М4.2Х1.41Х25] | | 2008-2009 | 04 | | узнать цену | | 006 | 25846421 | RADIO, AM/FM STEREO & AUDIO DISC PLYR & NAVN (INCLS 9, 11) (ACDelco #25846421) | N2 (UVB) | 2008-2008 | 01 | | узнать цену | | 006 | 25856154 | RADIO, AM/FM STEREO & AUDIO DISC PLYR & NAVN (INCLS 9, 11) | N2 (UL8, UVB) | 2008-2008 | 01 | | узнать цену | | 007 | 25841299 | BEZEL, I/P CTR AIR OTLT (INCLS 8) (SEE GROUP 16.000 "INSTRUMENT PANEL & RELATED PARTS" FOR DETAILED ILLUSTRATED VIEW) (BRONZE) (ASSEMBLY) | N257 | 2008-2008 | 01 | | узнать цену | | 008 | 11589329 | CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 7)
[ЗАЖИМ КОНСОЛИ САЛОНА] | | 2008-2009 | 10 | | узнать цену | | 009 | | KNOB, RDO TUNING CONT (PART OF 6) | | 2008-2009 | | | | | 010 | | DISC, NAVN DATA (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR LATEST SERVICE INFORMATION) | | 2008-2009 | | | | | 011 | | KNOB, RDO VOL CONT (PART OF 6) | | 2008-2009 | | | | | 012 | 25840249 | RADIO, AM/FM STEREO & CLK & CD PLYR (INCLS 13-16) (ACDelco #25840249) | N2 (UVA) | 2008-2008 | 01 | | узнать цену | | 012 | 25941920 | RADIO, AM/FM STEREO & CLK & CD PLYR (INCLS 13-16) (LABELED 25941920, 25799568 OR 25864960) (ACDelco #25941920) (USED ON VEHICLES BUILT 9/17/07 AND AFTER.) | N2 (UQA, US9) | 2008-2008 | 01 | | узнать цену | | 013 | | KNOB, RDO TUNING CONT (PART OF 12) | | 2008-2009 | | | | | 014 | | PUSHBUTTON, RDO TUNE (PART OF 12) | | 2008-2009 | | | | | 015 | | PUSHBUTTON, RDO PWR (PART OF 12) | | 2008-2009 | | | | | 016 | | KNOB, RDO VOL CONT (PART OF 12) | | 2008-2009 | | | |
|
|
