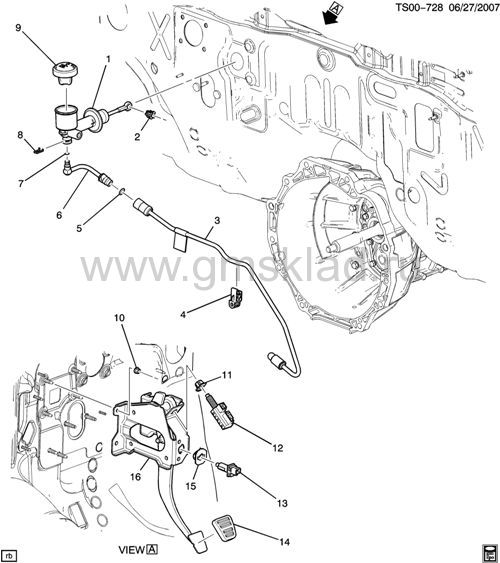

(TS00-728) - 2007 N1 CLUTCH PEDAL & CYLINDERS (MA5,RHD)(TWO PIECE MASTER CYLINDER PIPE)(2ND DES)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25805725 | CYLINDER, CLU MAS (INCLS 2, 5-9) (SERV T/W 25805726/HOSE) | N1 (MA5, RHD) (EXPORT) | 2007-2007 | 01 | | узнать цену | | 002 | | BUSHING, CLU M/CYL PUSH ROD (PART OF 1) | | 2007-2007 | | | | | 003 | 25805726 | HOSE, CLU M/CYL RSVR (INCLS 4) (SERV T/W 25805725/MAS CYL) | N1 (LLR, MA5, RHD) (EXPORT) | 2007-2007 | 01 | | узнать цену | | 004 | | CLIP, CLU M/CYL RSVR HOSE (PART OF 3) | | 2007-2007 | | | | | 005 | | SEAL, CLU ACTR CYL HOSE (PART OF 1) | | 2007-2007 | | | | | 006 | | PIPE, CLU ACTR CYL (PART OF 1) | | 2007-2007 | | | | | 007 | | SEAL, CLU ACTR CYL (O RING) (PART OF 1) | | 2007-2007 | | | | | 008 | | RETAINER, CLU M/CYL RSVR (PUSH IN) (PART OF 1) | | 2007-2007 | | | | | 009 | 89048534 | CAP, CLU M/CYL RSVR (PART OF 1) (W/ISO) | N1 (MA5) | 2007-2007 | 01 | | узнать цену | | 010 | 11514596 | ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (CLU PED BRKT) (8.915) (ACDelco #11514596) | | 2007-2007 | 04 | | узнать цену | | 011 | | CLAMP, CLU PED POSN SW (PART OF 12, 16) | | 2007-2007 | | | | | 012 | 15101582 | SWITCH, CLU PED POSN (INCLS 11) (PART OF 16) (ACDelco #D2261C) | N1 (MA5) | 2007-2007 | 01 | | узнать цену | | 013 | 22620887 | SWITCH, CRCONT REL (PART OF 16) (TO BRK PEDAL) (ACDelco #D1596F) | N1 (MA5) | 2007-2007 | 01 | | узнать цену | | 014 | 15108399 | PAD, CLU PED (PART OF 16) | N1 (MA5) | 2007-2007 | 01 | | узнать цену | | 015 | 10418917 | RETAINER, CRCONT REL SW (PART OF 16) | N1 | 2007-2007 | 01 | | узнать цену | | 016 | 15815970 | PEDAL, CLU (W/BRKT) (INCLS 11-15) | N1 (LLR, MA5, RHD) (EXPORT) | 2007-2007 | 01 | | узнать цену |
|
|
