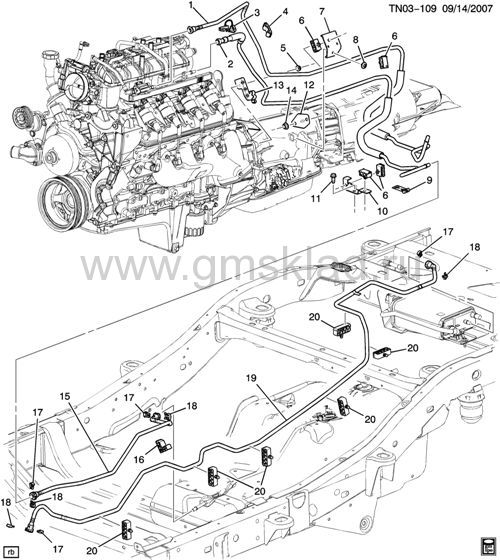

(TN03-109) - 2009 N1(06) ТОПЛИВНАЯ СИСТЕМА (LH8/5.3L)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15821012 | PIPE, EVAP EMIS | NT1 (LH8, JJA) | 2008-2009 | 01 | | узнать цену | | 002 | 15821017 | PIPE, FUEL FEED (INCLS 3, 9) | NT1 (LH8, JJA) | 2008-2009 | 01 | | узнать цену | | 003 | 25654373 | CLIP, FUEL FEED & RTN HOSE (PART OF 2) (PLASTIC) | N1 (LH8, JJA, ZM6, Z71, Z85, ZQ8) | 2008-2009 | 01 | | узнать цену | | 003 | 25654373 | CLIP, FUEL FEED & RTN HOSE (PART OF 2) (PLASTIC) | N1 (LH8, JJA, ZM6, Z71, Z85) | 2009-2009 | 01 | | узнать цену | | 004 | 22722309 | CLAMP, TRANS FLUID CLR HOSE | N1 | 2008-2010 | 01 | | узнать цену | | 005 | 11514596 | ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL PIPE BRKT) (8.915) (ACDelco #11514596) | | 2008-2010 | 01 | | узнать цену | | 006 | 15080401 | CLIP, FUEL FEED & EVAP EMIS PIPE (2 LINE RETAINER LESS PUSH IN CLIP) | N1 (LH8, JJA) | 2008-2009 | 03 | | узнать цену | | 006 | 15850416 | CLIP, FUEL FEED & EVAP EMIS PIPE | N1 (JJA) | 2008-2009 | 01 | | узнать цену | | 007 | 15821005 | BRACKET, FUEL PIPE (H BOSS BRACKET) | NT1 (LH8, JJA) | 2008-2009 | 01 | | узнать цену | | 008 | 11514596 | ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL PIPE BRKT) (8.915) (ACDelco #11514596) | | 2008-2010 | 01 | | узнать цену | | 009 | | LABEL, FUEL FEED PIPE WRNG (PART OF 2) | | 2009-2009 | | | | | 010 | | BRACKET, FUEL PIPE | | 2008-2009 | | | | | 011 | 11570082 | БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (FUEL FEED & RTN PIPE & EVAP EMIS PIPE BRKT) (ACDelco #11570082)
[БОЛТ М8] | | 2008-2010 | 01 | | узнать цену | | 012 | 15900490 | BRACKET, FUEL PIPE | N1 (LH8, JJA) | 2008-2009 | 01 | | узнать цену | | 013 | 15821004 | BRACKET, FUEL PIPE (REAR ДВИГАТЕЛЬ FACE) | NT1 (LH8, JJA) | 2008-2009 | 01 | | узнать цену | | 014 | 11514597 | ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383) | | 2008-2010 | 05 | | узнать цену | | 015 | 25897636 | PIPE, FUEL FEED (INCLS 17, 18) | N1 (LH8) | 2008-2009 | 01 | | узнать цену | | 016 | 15170398 | CLIP, BRK & FUEL PIPE (RETAINS TWO DIA9.5 AND TWO DIA5.19 BRAKELINES) (4.686) | N1 | 2008-2010 | 01 | | узнать цену | | 016 | 15170398 | CLIP, BRK & FUEL PIPE (RETAINS TWO DIA9.5 AND TWO DIA5.19 BRAKELINES) | N1 | 2008-2010 | 01 | | узнать цену | | 017 | 22717568 | RETAINER, FUEL FEED HOSE CONN (PART OF 15, 19) (3/8 INCH QUICK CONNECT RETAINER CLIP)
[КЛИПСА] | N1 | 2008-2009 | 01 | | узнать цену | | 018 | 25831516 | RETAINER, FUEL FEED HOSE CONN (PART OF 15, 19) (SECONDARY LATCH USED W/ 3/8" CONN) | N153 (06) (LH8) | 2009-2009 | 01 | | узнать цену | | 019 | 25897634 | PIPE, EVAP EMIS (INCLS 17, 18) | N153 (06) (LH8) | 2009-2009 | 01 | | узнать цену | | 020 | 15163622 | CLIP - HOLDS (2) DIA9.52 FUEL LINE AND (2) DIA5.17 BRAKELINE, PRONG (BRK & FUEL PIPE) | | 2008-2010 | 06 | | узнать цену |
|
|
