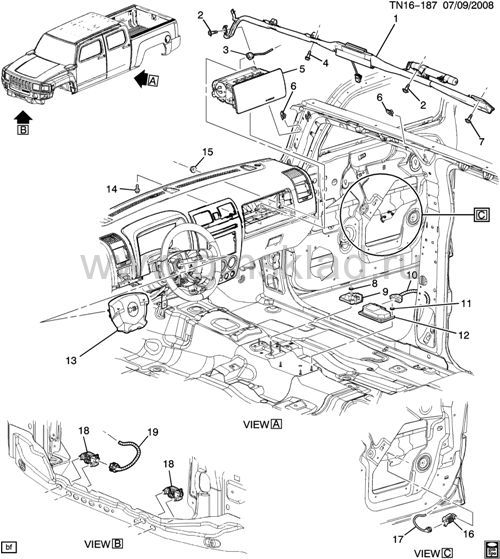

(TN16-187) - 2009-2010 N1(43) INFLATABLE RESTRAINT SYSTEM
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 93355346 | MODULE, RF S/RL INFL RST (INCLS 2, 4, 7) | N155 (43) | 2009-2010 | 01 | L | узнать цену | | 001 | 93355347 | MODULE, RF S/RL INFL RST (INCLS 2, 4, 7) | N155 (43) | 2009-2010 | 01 | R | узнать цену | | 002 | 11561388 | БОЛТ, HEX W/FL WA, M6X1X20, 11 THD, 17 OD, 9.8, GMW3359 W/ADH 6175M (PART OF 1) | | 2009-2010 | 03 | | узнать цену | | 003 | | HARNESS, I/P WRG (SEE GROUP 02.000 "ЖГУТ ПРОВОДОВ, INSTRUMENT PANEL" FOR DETAILED ILLUSTRATED VIEW) | | 2009-2010 | | | | | 004 | 11609287 | БОЛТ, RF S/RL INFL RST MDL (RH & LH SI) (PART OF 1) (M6X1X24, 7 THD, 15.25 OD) (14.865) | N155 (43) | 2009-2009 | 04 | | узнать цену | | 005 | 15850867 | MODULE, I/P INFL RST (EBONY) | N1 (RHD, 19I) (EXC HH3) (EXPORT) | 2009-2010 | 01 | | узнать цену | | 005 | 15850867 | MODULE, I/P INFL RST (EBONY) | N1 (RHD, 27I) (EXC HH3) (EXPORT) | 2009-2010 | 01 | | узнать цену | | 005 | 25809845 | MODULE, I/P INFL RST (EBONY) | N1 (19I, 27I) | 2009-2010 | 01 | | узнать цену | | 006 | 11519502 | NUT, TYPE U, M6X1, 23.5X12.5, 13.5 C/E, 0.8-4.0 PNL, GM7111M (INFL RST RF S/RL MDL AIRBAG STRP) | | 2009-2010 | 12 | | узнать цену | | 007 | 94720563 | БОЛТ, RF S/RL INFL RST MDL (PART OF 1) (M6X1X24, 7 THD, 20 OD) | N155 (43) | 2009-2009 | 02 | | узнать цену | | 008 | 03530297 | ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (INFL RST VEH ROLLOVER SEN) | | 2009-2010 | 03 | | узнать цену | | 009 | 94729712 | ДАТЧИК, INFL RST VEH ROLLOVER (LABELED 94729712) | N155 (43) (ASF) | 2009-2010 | 01 | | узнать цену | | 010 | | HARNESS, BODY WRG (SEE GROUP 13.000 "ПРОВОДКА-КУЗОВ" FOR DETAILED ILLUSTRATED VIEW) (2.525) | | 2009-2010 | | | | | 011 | 03530297 | ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (INFL RST SEN & DIAGN MDL) | | 2009-2010 | 03 | | узнать цену | | 012 | 94732688 | MODULE, INFL RST SEN & DIAGN | N155 (43) (ASF) | 2009-2009 | 01 | | узнать цену | | 013 | 25809839 | MODULE, STRG WHL INFL RST (EBONY) (INCLS СИГНАЛ CONTACTS) (16.712) | N1 (19I, 27I) (EXC Y92) | 2009-2010 | 01 | | узнать цену | | 013 | 25809839 | MODULE, STRG WHL INFL RST (EBONY) (INCLS СИГНАЛ CONTACTS) | N1 (19I, 27I) (EXC Y92) | 2009-2010 | 01 | | узнать цену | | 013 | 25809843 | MODULE, STRG WHL INFL RST (EBONY) (16.712) | N1 (Y92, 19I, 27I) | 2009-2010 | 01 | | узнать цену | | 013 | 25809843 | MODULE, STRG WHL INFL RST (EBONY) | N1 (Y92, 19I, 27I) | 2009-2010 | 01 | | узнать цену | | 014 | 11517484 | BOLT-HEX, M6X1X20, 9 THD, 17 OD, 9.8, 6280M, MACH, P-PT (I/P INFL RST MDL) | | 2009-2010 | 02 | | узнать цену | | 015 | 11609411 | ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (COMMUNICATION INTERFACE MDL)
[ГАЙКА М6] | | 2009-2010 | 02 | | узнать цену | | 016 | 10383629 | ДАТЧИК, INFL RST SI IMP
[ДАТЧИК ПОДУШКИ БЕЗОПАСНОСТИ] | N1 (ASF) | 2009-2010 | 02 | | узнать цену | | 017 | | HARNESS, FRT S/D DR WRG (SEE GROUP 16.000 "DOOR HARDWARE/FRONT" FOR DETAILED ILLUSTRATED VIEW) | | 2009-2010 | | | | | 018 | 94730161 | ДАТЧИК, F/END INFL RST DISCRM | N155 (43) | 2009-2010 | 02 | | узнать цену | | 019 | | HARNESS, FWD LP WRG (SEE GROUP 02.000 "ЖГУТ ПРОВОДОВ/FWD LAMPS" FOR DETAILED ILLUSTRATED VIEW) | | 2009-2010 | | | |
|
|
