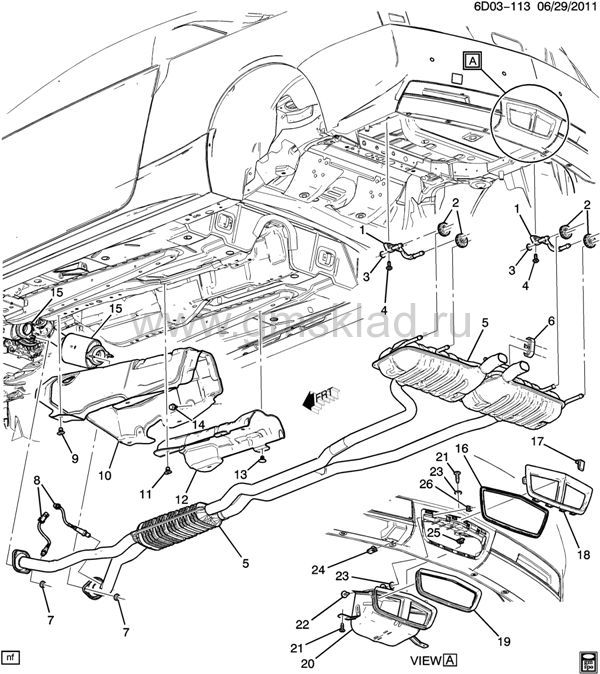

(6D03-113) 2011 DM47 ВЫПУСКНАЯ СИСТЕМА/ЗАДНЯЯ ЧАСТЬ (LLT/3.6D)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25866387 | BRACKET, EXH TAIL PIPE HNGR (INCLS 2) | DM47 | 2011-2011 | 02 | | узнать цену | | 002 | 20857446 | INSULATOR, EXH MUFF RR HNGR (PART OF 1) | DM | 2011-2011 | 02 | | узнать цену | | 003 | 11516650 | NUT, HEX W/CON WA, M8X1.25, 28 O.D., 7.5 THK, 9, GM7111M. (RR BPR ENGY ABS) | | 2011-2011 | 06 | | узнать цену | | 004 | 11589407 | BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (EXH MUFF RR HNGR) | | 2011-2011 | 04 | | узнать цену | | 005 | 20790102 | MUFFLER, EXH (W/RESO, EXH & TAIL PIPE) (INCLS 6) | DM47(LLT, MN6, MX0) | 2011-2011 | 01 | | узнать цену | | 005 | 20790862 | MUFFLER, EXH (W/RESO, EXH & TAIL PIPE) (INCLS 6) | DM47(LLT, MX7) | 2011-2011 | 01 | | узнать цену | | 005 | 20790102 | MUFFLER, EXH (W/RESO, EXH & TAIL PIPE) (INCLS 6) (3.701) | DM47(LLT, MN6, MX0) | 2011-2011 | 01 | | узнать цену | | 005 | 20790102 | MUFFLER, EXH (W/RESO, EXH & TAIL PIPE) (INCLS 6) (3.701) | DM47(LLT, MN6, MX0) | 2011-2011 | 01 | | узнать цену | | 005 | 20790862 | MUFFLER, EXH (W/RESO, EXH & TAIL PIPE) (INCLS 6) (3.701) | DM47(LLT, MX7) | 2011-2011 | 01 | | узнать цену | | 005 | 20790862 | MUFFLER, EXH (W/RESO, EXH & TAIL PIPE) (INCLS 6) (3.701) | DM47(LLT, MX7) | 2011-2011 | 01 | | узнать цену | | 006 | 25918352 | INSULATOR, EXH MUFF HNGR BRKT (PART OF 5) (WHEN REPLACING MUST REPL BOTH LH&RH FRT MUFF INSULATORS) | DM | 2011-2011 | 02 | | узнать цену | | 007 | 11609746 | NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (EXH MUFF) | | 2011-2011 | 04 | | узнать цену | | 008 | 12616202 | SENSOR, HTD OXY (POSN 2) (ACDelco #213-4575) | DM, DW(LLT, MYB) | 2011-2011 | 01 | L | узнать цену | | 008 | 12616203 | SENSOR, HTD OXY (POSN 2) (ACDelco #213-4576) | DM(LLT, MV7) | 2011-2011 | 02 | | узнать цену | | 008 | 12616203 | SENSOR, HTD OXY (POSN 2) (ACDelco #213-4576) | DM(LLT, MYB) | 2011-2011 | 01 | R | узнать цену | | 009 | 11570585 | RETAINER, EXH MANIF PIPE HNGR INSL (PART OF 10) | D | 2011-2011 | 04 | | узнать цену | | 010 | 20987570 | INSULATOR, EXH H/SHLD (INCLS 9) | DM(MX0) | 2011-2011 | 01 | | узнать цену | | 010 | 20987571 | INSULATOR, EXH H/SHLD (INCLS 9) | DM(MX7) | 2011-2011 | 01 | | узнать цену | | 010 | 20917002 | INSULATOR, EXH H/SHLD (INCLS 9) | DM(MN6) | 2011-2011 | 01 | | узнать цену | | 011 | 11570586 | RETAINER, EXH H/SHLD (PART OF 12) (PUSH IN 13 MM HOLE W/ 20 X 36 MM HEAD) | DM | 2011-2011 | 02 | | узнать цену | | 012 | 20971705 | INSULATOR, EXH H/SHLD (AT INTER FLR PNL) (INCLS 11, 13) (FOR VEH BUILT ON & AFTER 09/15/10) (1ST DES SEE 25964069) | DM(2ND DES) | 2011-2011 | 01 | | узнать цену | | 012 | 25964069 | INSULATOR, EXH H/SHLD (AT INTER FLR PNL) (INCLS 11, 13) (FOR VEH BUILT PRIOR TO 09/15/10) (2ND DES SEE 20971705) | DM(1ST DES) | 2011-2011 | 01 | | узнать цену | | 013 | 24501057 | RETAINER, EXH H/SHLD (PART OF 12) (PUSH-IN) (6.9 HOLE DIA) (19MM LG) (1.840) | DM | 2011-2011 | 02 | | узнать цену | | 014 | 21030249 | RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (EXH MANIF PIPE HNGR INSL) (8.950) (PUSH IN) | | 2011-2011 | 04 | | узнать цену | | 015 | | CONVERTER, 3WAY CTLTC (SEE GROUP 03.000 "EXHAUST SYSTEM/FRONT" FOR DETAILED ILLUSTRATED VIEW) | | 2011-2011 | | | | | 016 | 20945661 | INSULATOR, RR BPR FASCIA (GRAY) | DM47 | 2011-2011 | 01 | | узнать цену | | 016 | 20945662 | INSULATOR, RR BPR FASCIA (TITANIUM) | DM47 | 2011-2011 | 01 | | узнать цену | | 017 | 11562364 | RETAINER, RR BPR FASCIA (CLIP-18X10X11.6) (1.269) | D47 | 2011-2011 | 02 | | узнать цену | | 018 | 25794874 | BEZEL, R/END FASCIA EXH TAIL PIPE OPG | DM47 | 2011-2011 | 01 | | узнать цену | | 019 | 20778470 | GASKET, EXH RR PIPE | DM47 | 2011-2011 | 01 | | узнать цену | | 020 | 25824427 | SHIELD, EXH HT (INCLS 25) | DM47 | 2011-2011 | 01 | | узнать цену | | 021 | 11609457 | SCREW, ROUNDWA, M4.2X1.41X20, 14.1 THD, 11.35 OD, 6010M, GMW4205, TAP, (RR BPR FASCIA H/SHLD) | | 2011-2011 | 04 | | узнать цену | | 022 | 11609465 | BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (RR BPR FASCIA H/SHLD) (8.977) | | 2011-2011 | 02 | | узнать цену | | 023 | 20831851 | SPACER, RR BPR FASCIA | DM47 | 2011-2011 | 04 | | узнать цену | | 024 | 11515638 | NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (RR BPR FASCIA H/SHLD) | | 2011-2011 | 02 | | узнать цену | | 025 | 11518531 | NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (PART OF 20) (10.512) | | 2011-2011 | 02 | | узнать цену | | 026 | 11610157 | NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (RR BPR FASCIA H/SHLD) (10.701) | | 2011-2011 | 02 | | узнать цену |
|
|
