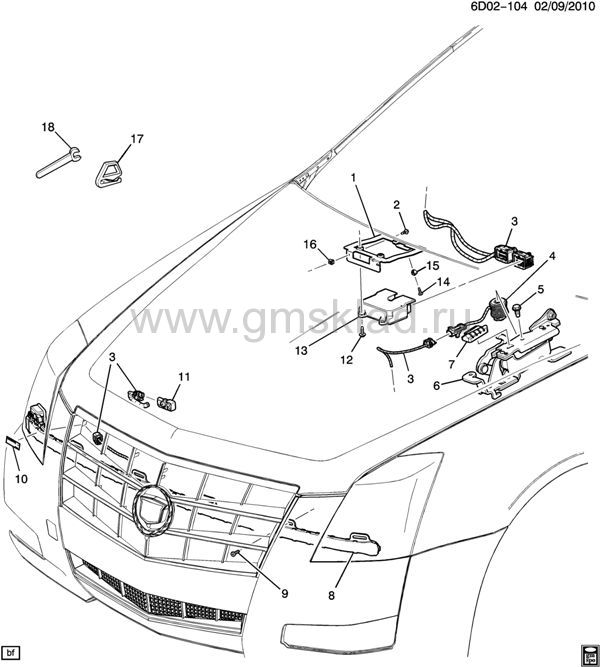

(6D02-104) 2011-2013 DM,DN47 СИСТЕМА ЗАЩИТЫ ПЕШЕХОДА (B3T)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15902864 | BRACKET, PEDESTRIAN IMP DETECTION MDL (INCLS 15) | DM, DN (B3T) | 2012-2013 | 01 | | узнать цену | | 002 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (PEDESTRIAN IMP DETECTION MDL) | | 2011-2013 | 02 | | узнать цену | | 003 | | HARNESS, I/P WRG (SEE GROUP 02.000 "WIRING HARNESS/INSTURMENT PANEL" FOR DETAILED ILLUSTRATED VIEW) | | 2011-2013 | | | | | 004 | 25912312 | ACTUATOR, ACTIVE HOOD HGE | DM (B3T) (EXPORT) | 2011-2013 | 02 | | узнать цену | | 004 | 25912312 | ACTUATOR, ACTIVE HOOD HGE | DN (B3T) (EXPORT) | 2011-2013 | 02 | | узнать цену | | 005 | 11569754 | BOLT, HOOD HGE | DM (B3T) (EXPORT) | 2011-2013 | 02 | | узнать цену | | 005 | 11569754 | BOLT, HOOD HGE | DN (B3T) (EXPORT) | 2011-2013 | 02 | | узнать цену | | 006 | 25909697 | HINGE, HOOD (BODY SI) (SEE GROUP 08.000 "HOOD" FOR DETAILED ILLUSTRATED VIEW) | DM (B3T) (EXPORT) | 2011-2013 | 01 | R | узнать цену | | 006 | 25909698 | HINGE, HOOD (BODY SI) (SEE GROUP 08.000 "HOOD" FOR DETAILED ILLUSTRATED VIEW) | DM (B3T) (EXPORT) | 2011-2013 | 01 | L | узнать цену | | 006 | 25909697 | HINGE, HOOD (BODY SI) (SEE GROUP 08.000 "HOOD" FOR DETAILED ILLUSTRATED VIEW) | DN (B3T) (EXPORT) | 2011-2013 | 01 | R | узнать цену | | 006 | 25909698 | HINGE, HOOD (BODY SI) (SEE GROUP 08.000 "HOOD" FOR DETAILED ILLUSTRATED VIEW) | DN (B3T) (EXPORT) | 2011-2013 | 01 | L | узнать цену | | 007 | 25811792 | BUMPER, HOOD RR | DM (B3T) (EXPORT) | 2011-2013 | 01 | L | узнать цену | | 007 | 25811793 | BUMPER, HOOD RR | DM (B3T) (EXPORT) | 2011-2013 | 01 | R | узнать цену | | 007 | 25811792 | BUMPER, HOOD RR | DN (B3T) (EXPORT) | 2011-2013 | 01 | L | узнать цену | | 007 | 25811793 | BUMPER, HOOD RR | DN (B3T) (EXPORT) | 2011-2013 | 01 | R | узнать цену | | 008 | 25812678 | SENSOR, PEDESTRIAN IMPACT DETECTION (INCLS 10) (ACTIVE HOOD SYSTEM DISCRIMINATION SENSOR-FRT UPR BEAM) | DM, DN (B3T) | 2011-2013 | 01 | | узнать цену | | 009 | 11570143 | BOLT, FRT BPR IMP BAR (0.206) | D47 (B3T) (EXPORT) | 2011-2013 | 01 | | узнать цену | | 010 | 15940806 | LABEL, PEDESTRIAN IMP DETECTION SEN CAUTION (PART OF 8) | DN (B3T, V76) | 2011-2013 | 01 | | узнать цену | | 010 | 15940806 | LABEL, PEDESTRIAN IMP DETECTION SEN CAUTION (PART OF 8) | DM35-47-69 (B3T, V76) (EXPORT) | 2011-2013 | 01 | | узнать цену | | 011 | 25916157 | SENSOR, PEDESTRIAN IMPACT DETECTION | DM, DN (B3T) | 2011-2013 | 01 | | узнать цену | | 012 | 11609989 | BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PEDESTRIAN IMP DETECTION MDL) | | 2011-2013 | 03 | | узнать цену | | 013 | 25916158 | MODULE, PEDESTRIAN IMPACT DETECTION (LABELED 25916158) | DM, DN (B3T) (EXPORT) | 2011-2013 | 01 | | узнать цену | | 014 | 11609406 | SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (PEDESTRIAN IMP DETECTION MDL BRKT) | | 2011-2013 | 01 | | узнать цену | | 015 | 11610157 | NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 1) (10.701) | | 2011-2013 | 01 | | узнать цену | | 016 | 11610157 | NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PEDESTRIAN IMP DETECTION MDL BRKT) (10.701) | | 2011-2013 | 02 | | узнать цену | | 017 | 25878022 | PLIERS, (WIRE CUTTER) | DM, DN47 (BAG, B3T) (EXPORT) | 2012-2013 | 01 | | узнать цену | | 018 | 25878021 | WRENCH, | DM, DN47 (BAG, B3T) | 2012-2013 | 01 | | узнать цену |
|
|
