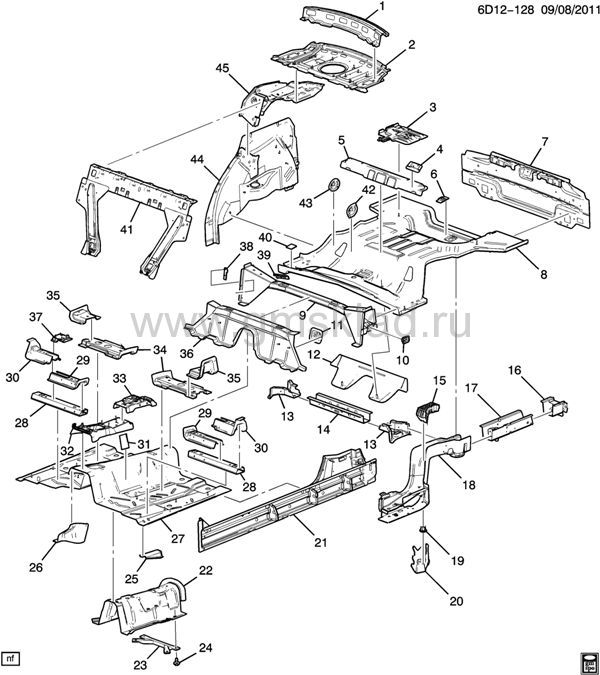

(6D12-128) 2012-2013 D47 ЛИСТОВОЙ МЕТАЛЛ КУЗОВА PART 5-UNDERBODY & REAR END
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25795029 | PANEL, R/WDO DRN | DM, DN47 | 2011-2013 | 01 | | узнать цену | | 002 | 25978127 | PANEL, R/WDO | DM, DN47 | 2011-2013 | 01 | | узнать цену | | 003 | 25839351 | TRAY, BAT | DM, DN47 | 2013-2013 | 01 | | узнать цену | | 004 | | EXTENSION, LOAD FLR PNL C/BAR | | 2012-2013 | | | | | 005 | | BAR, FLR PNL RR INTER CR | | 2012-2013 | | | | | 006 | 25650571 | BRACKET, SPA WHL STOW (PART OF 8) (55.1X84.5X126) (3 RECTANGULAR ATTACH BOLT HOLES) | D | 2011-2013 | 01 | | узнать цену | | 007 | 25978128 | PANEL, R/END | DM, DN47 | 2011-2013 | 01 | | узнать цену | | 008 | 25978220 | PANEL, R/CMPT FLR (INCLS 6) | DM, DN47 | 2011-2013 | 01 | | узнать цену | | 009 | | BAR, FLR PNL #4 | | 2012-2013 | | | | | 010 | | SEAL, FLR K/UP PNL (TO RKR INR PNL) | | 2012-2013 | | | | | 011 | 25675853 | BRACKET, F/TNK | D | 2011-2013 | 02 | | узнать цену | | 012 | | PLATE, R/SEAT BELT ANC (BKL SI) | | 2012-2013 | | | | | 013 | 15251409 | EXTENSION, FLR PNL #5 C/BAR | D47 | 2011-2013 | 02 | | узнать цену | | 014 | 20884792 | BAR, FLR PNL #5 | D47 | 2011-2013 | 01 | | узнать цену | | 015 | 25859828 | REINFORCEMENT KIT, R/CMPT FLR PNL RL INTER | DM, DN | 2011-2013 | 01 | L | узнать цену | | 015 | 25859827 | REINFORCEMENT KIT, R/CMPT FLR PNL RL INTER (INSTRUCTION #19120709) | DM, DN | 2011-2013 | 01 | R | узнать цену | | 016 | | EXTENSION, R/CMPT FLR PNL RL (PART OF 17, 18) | | 2012-2013 | | | | | 017 | 20777232 | RAIL, R/CMPT FLR PNL (W/RR SUSP SUPT) (PART OF 18) (INCLS 16) | DM, DN47 | 2011-2013 | 01 | R | узнать цену | | 017 | 22745739 | RAIL, R/CMPT FLR PNL (W/RR SUSP SUPT) (PART OF 18) (INCLS 16) | DM, DN47 | 2011-2013 | 01 | L | узнать цену | | 018 | 20835770 | RAIL, R/CMPT FLR PNL RR (INCLS 16, 17, 19, 20) | D47 | 2011-2013 | 01 | R | узнать цену | | 018 | 20835771 | RAIL, R/CMPT FLR PNL RR (INCLS 16, 17, 19, 20) | D47 | 2011-2013 | 01 | L | узнать цену | | 019 | 11519001 | NUT, RR SUSP FRM (PART OF 18) (HEX, M16X2.0X37.9, OD 50, SAE1010, PLAIN.TEFLON) (8.899) | D | 2011-2013 | 02 | | узнать цену | | 020 | 25911674 | REINFORCEMENT, RR SUSP SUPT (PART OF 18) | D | 2011-2013 | 01 | R | узнать цену | | 020 | 25911675 | REINFORCEMENT, RR SUSP SUPT (PART OF 18) | D | 2011-2013 | 01 | L | узнать цену | | 021 | 20899301 | PANEL, RKR INR | D47 | 2011-2013 | 01 | L | узнать цену | | 021 | 20899302 | PANEL, RKR INR | D47 | 2011-2013 | 01 | R | узнать цену | | 022 | | REINFORCEMENT, FLR PNL CTR | | 2012-2013 | | | | | 023 | 22754956 | REINFORCEMENT, FLR PNL #4 C/BAR | DN | 2011-2013 | 01 | | узнать цену | | 023 | 25974141 | REINFORCEMENT, FLR PNL #4 C/BAR | DM47-35-69 (EXC CZ9) | 2012-2013 | 01 | | узнать цену | | 024 | 11519387 | BOLT, HWASH, M8X1.25X20, 14 THD, 24 OD, GMW25 (8.8)STEEL, GMW3359, M-POINT. (FLR PNL #4 C/BAR REINF) | | 2011-2013 | 02 | | узнать цену | | 025 | 25689604 | BRACKET, PARK BRK CBL (218 X 83 X 59) (ATTACHES TO F/FLR PANEL) | D | 2011-2013 | 01 | | узнать цену | | 026 | | PANEL, FLR PNL FIL (AT TUN PNL) | | 2012-2013 | | | | | 027 | | PANEL, F/FLR | | 2012-2013 | | | | | 028 | | BAR, FLR PNL #2 CR | | 2012-2013 | | | | | 029 | | EXTENSION, FLR PNL #2 C/BAR | | 2012-2013 | | | | | 030 | | EXTENSION, FLR PNL #2 C/BAR | | 2012-2013 | | | | | 031 | | SEALER, F/FLR PANEL | | 2012-2013 | | | | | 032 | | REINFORCEMENT, FLR PNL AT TUN PNL | | 2012-2013 | | | | | 033 | | BRACKET, F/FLR CNSL RR | | 2012-2013 | | | | | 034 | | BAR, FLR PNL #3 CR | | 2012-2013 | | | | | 035 | | EXTENSION, FLR PNL #3 BAR | | 2012-2013 | | | | | 036 | | BAR, FLR PNL #4 CR | | 2012-2013 | | | | | 037 | | BRACKET, VEH YAW SEN & LATL ACCLRM | | 2012-2013 | | | | | 038 | | SEAL, FLR K/UP PNL (TO RKR INR PNL) | | 2012-2013 | | | | | 039 | | SEALING STRIP, R/FLR PNL | | 2012-2013 | | | | | 040 | 11515174 | SEALING STRIP, FLR PNL DRN HOLE CVR (4 1/4" X 7 1/2") (TRIM AS REQ'D) (OUTBOARD) (12.941) | DM, DN47 | 2012-2013 | 02 | | узнать цену | | 041 | | SUPPORT, R/SEAT H/RST | | 2012-2013 | | | | | 042 | | PLATE, CHILD ST RST SYS BELT BRKT ANC | | 2012-2013 | | | | | 043 | | PLATE, CHILD ST RST SYS BELT BRKT ANC | | 2012-2013 | | | | | 044 | 22803880 | PANEL, RR W/H INR | D47 | 2011-2013 | 01 | R | узнать цену | | 044 | 22803879 | PANEL, RR W/H INR | D47 | 2011-2013 | 01 | L | узнать цену | | 045 | 22908463 | REINFORCEMENT, R/WDO PNL | DM, DN47 | 2013-2013 | 01 | R | узнать цену | | 045 | 22908464 | REINFORCEMENT, R/WDO PNL | DM, DN47 | 2013-2013 | 01 | L | узнать цену |
|
|
