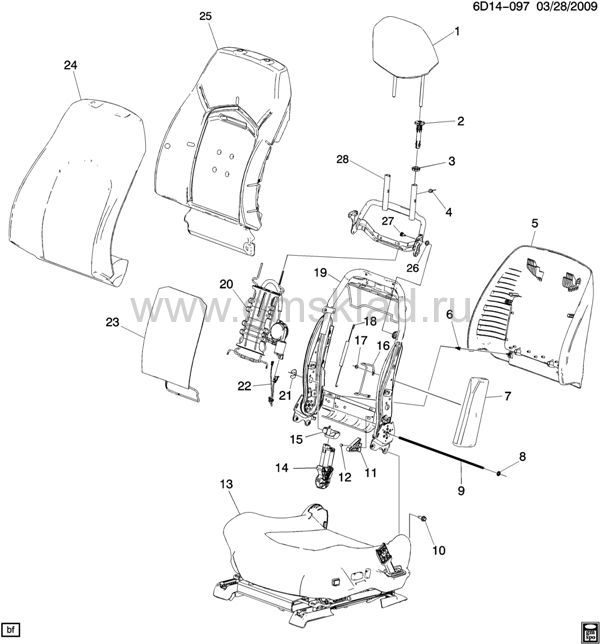

(6D14-097) 2011-2013 DN35 СИДЕНЬЕ В СБОРЕ/ВОДИТЕЛЯ-СПИНКА (POWER LUMBAR AL2, EXC VENTED/HEATED KB6)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 20867413 | RESTRAINT, D/SEAT HD (TITANIUM) | DN35-47-69 (AQ9, ECH, KA1, 01C) (EXC KB6) | 2011-2013 | 01 | | узнать цену | | 001 | 20812526 | RESTRAINT, D/SEAT HD (EBONY) (LEATHER) | DM, DN (AL2, AQ9, EBS, ECH, 01G) | 2012-2013 | 01 | | узнать цену | | 002 | 25785788 | GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) | DN (01G, 02W) | 2011-2013 | 01 | | узнать цену | | 002 | 25908135 | GUIDE, D/SEAT H/RST (TITANIUM) (W/BUTTON) | DN (01C) | 2011-2013 | 01 | | узнать цену | | 002 | 19123683 | GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) | DN35 (ECH, 01C) (EXC A82) (EXPORT) | 2011-2013 | 01 | | узнать цену | | 003 | 25994444 | RETAINER, D/SEAT H/RST GDE | D35-47-69 | 2011-2013 | 01 | | узнать цену | | 004 | 25995123 | BUMPER, F/SEAT BK | DN | 2011-2013 | 02 | | узнать цену | | 005 | 25939326 | PANEL, D/SEAT BK FIN (INCLS 6) (TITANIUM) (PANEL IS WRAPPED IN LEATHER) | DN35-69 (01C) | 2011-2012 | 01 | | узнать цену | | 006 | 11589329 | CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 5) | | 2011-2013 | 04 | | узнать цену | | 007 | 20970105 | AIRBAG, D/SEAT SI | D35-69 | 2011-2013 | 01 | | узнать цену | | 008 | 11571066 | NUT, PUSH-ON, FOR 9/32" (6.9MM) DIA STUDS, 18.4 OD, SAE 1050 STL, GMW30 (PART OF 19) | | 2011-2013 | 02 | | узнать цену | | 009 | 15894212 | BAR, F/SEAT BK FRM CR (PART OF 19) | DM, DN | 2011-2013 | 02 | | узнать цену | | 010 | 25828643 | BOLT, F/SEAT (PART OF 19) | DN | 2011-2013 | 08 | | узнать цену | | 011 | 25994443 | BRACKET, D/SEAT (11.419) | DN35-47-69 | 2011-2013 | 02 | | узнать цену | | 012 | | RIVET, D/SEAT ADJR BRKT | | 2011-2013 | | | | | 013 | | PAD, D/SEAT CUSH (SEE GROUP 14.000 "SEAT ASM/DRIVER-CUSHION" FOR DETAILED ILLUSTRATED VIEW) | | 2011-2013 | | | | | 014 | 15894214 | ACTUATOR, D/SEAT RECL (PART OF 19) | DN | 2011-2013 | 01 | | узнать цену | | 015 | | BRACKET, D/SEAT RECL ACTR (PART OF 19) | | 2011-2013 | | | | | 016 | 25994418 | BRACKET, D/SEAT SI AIRBAG | DM, DN (AQ9) | 2011-2013 | 01 | L | узнать цену | | 017 | | NUT, D/SEAT SI AIRBAG (PART OF 19) | | 2011-2013 | | | | | 018 | 25994445 | SPRING, F/SEAT H/RST ADJ RET | DM, DN | 2011-2013 | 02 | | узнать цену | | 019 | 25807063 | FRAME, D/SEAT BK (INCLS 8-10, 14, 15, 17, 21) (14.896) | DN35-69 (AL2, AQ9, A45, ECH, KA1) | 2012-2013 | 01 | | узнать цену | | 020 | 25939289 | LUMBAR SUB, D/SEAT (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) | DN35-69 (AL2, AQ9, A45, ECH, KA1) (EXC KB6) | 2011-2013 | 01 | | узнать цену | | 021 | | CLIP, ACTUATOR D/SEAT RECL) (PART OF 19 | | 2011-2013 | | | | | 022 | 22796536 | HARNESS, D/SEAT CONT MDL WRG | DN35-69 (AL2, AQ9, A45, ECH, KA1) (EXC KB6) | 2011-2012 | 01 | | узнать цену | | 023 | 25994410 | HEATER, D/SEAT BK | DN (KA1) (EXC KB6) | 2011-2013 | 01 | | узнать цену | | 024 | 22784996 | COVER, D/SEAT BK (EBONY) | DN35-69 (AL2, AQ9, A45, ECH, KA1, 01G) (EXC KB6) | 2012-2013 | 01 | | узнать цену | | 024 | 22789874 | COVER, D/SEAT BK (TITANIUM) | DN35-69 (AL2, AQ9, A45, ECH, KA1, 01C) (EXC KB6) | 2012-2013 | 01 | | узнать цену | | 025 | 25939292 | PAD, F/SEAT BK | DN35-69 (AL2, AQ9, A45, ECH, KA1) (EXC KB6) | 2011-2013 | 01 | L | узнать цену | | 026 | 25995124 | BUSHING, F/SEAT BK PIV | DN | 2011-2013 | 02 | | узнать цену | | 027 | | BOLT, F/SEAT H/RST | | 2011-2013 | | | | | 028 | 25994442 | SUPPORT, D/SEAT H/RST | DN35-69 | 2011-2013 | 01 | | узнать цену |
|
|
