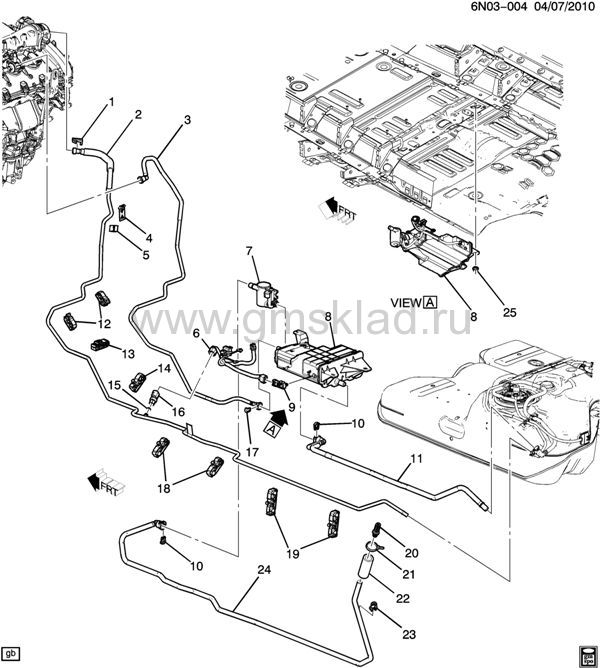

(6N03-004) 2010-2011 N СИСТЕМА ПОДАЧИ ТОПЛИВА (LAU/2.8-4, EMISSION SYSTEM NU1,NU5)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 22695614 | CLIP, FUEL FEED PIPE (13 X 19 X 36MM) (ONE TUBE) | N (LAU, LF1) | 2011-2011 | 01 | | узнать цену | | 002 | 25945052 | PIPE, FUEL FEED (INCLS 4) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 003 | 25945056 | PIPE, EVAP EMIS FRT (INCLS 17) | N (LAU) | 2011-2011 | 01 | | узнать цену | | 004 | | LABEL, FUEL FEED PIPE WRNG (PART OF 2) | | 2010-2011 | | | | | 005 | 15080402 | CLIP, FUEL FEED & EVAP EMIS PIPE (2 LINE RETAINER WITH PUSH IN CLIP) (3.162) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 005 | 15080402 | CLIP, FUEL FEED & EVAP EMIS PIPE (2 LINE RETAINER WITH PUSH IN CLIP) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 006 | 20922087 | HARNESS, FUEL SDR WRG (3.115) | N (LAU, LF1, NQU, NT7, NU1, NU5) (EXC KX2) | 2011-2011 | 01 | | узнать цену | | 006 | 20922087 | HARNESS, FUEL SDR WRG | N (LAU, LF1, NQU, NT7, NU1, NU5) (EXC KX2) (EXPORT) | 2011-2011 | 01 | | узнать цену | | 007 | 13575702 | SOLENOID, EVAP EMIS CNSTR (MUST USE T/W HARN 20922087) (ACDelco #214-2312) | N (LAU, LF1, NT7, NU1, NU5) (EXC KX2) | 2011-2011 | 01 | | узнать цену | | 007 | 13575702 | SOLENOID, EVAP EMIS CNSTR (MUST USE T/W HARN 20922087) (ACDelco #214-2312) | N (LAU, LF1, NQU) (EXC KX2) (EXPORT) | 2011-2011 | 01 | | узнать цену | | 008 | 25949888 | CANISTER, EVAP EMIS (W/O VENT VLV SOL) (INCLS 9) (ACDelco #215-709) | N (LAU, LF1, NT7, NU1, NU5) (EXC KX2) | 2010-2011 | 01 | | узнать цену | | 008 | 25949888 | CANISTER, EVAP EMIS (W/O VENT VLV SOL) (INCLS 9) (ACDelco #215-709) | N (LAU, LF1, NQU) (EXC KX2) (EXPORT) | 2010-2011 | 01 | | узнать цену | | 009 | 13502903 | SENSOR, F/TNK PRESS (PART OF 8) (ACDelco #13502903) | N | 2010-2011 | 01 | | узнать цену | | 010 | 21992746 | RETAINER, FUEL FEED HOSE CONN (PART OF 11, 24) (5/8 INCH QUICK CONNECT RETAINER CLIP) | N (LAU, LF1) | 2010-2011 | 02 | | узнать цену | | 011 | 25945057 | PIPE, EVAP EMIS RR (INCLS 10) | N (LAU, LF1) | 2011-2011 | 01 | | узнать цену | | 012 | 25956681 | CLIP, FUEL FEED & EVAP EMIS PIPE | N (LAU) | 2010-2011 | 02 | | узнать цену | | 013 | 22734194 | CLIP, BRK & FUEL FEED & EVAP EMIS PIPE (HOLDS (2)3/8 & (2)3/16 PIPES TO WELD STUD) (3.162) | N | 2010-2011 | 01 | | узнать цену | | 014 | 25938683 | CLIP, FUEL FEED & EVAP EMIS PIPE (4 WAY) (4.686) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 015 | 15778699 | SEAL, FUEL PRESS SEN (O RING) (ACDelco #15778699) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 016 | 13500745 | SENSOR, FUEL PRESS (PART OF FUEL LINE) (3.682) (ACDelco #13500745) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 016 | 13500745 | SENSOR, FUEL PRESS (PART OF FUEL LINE) (ACDelco #13500745) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 017 | | RETAINER, EVAP EMIS FRT PIPE (PART OF 3) | | 2010-2011 | | | | | 018 | 25938681 | CLIP, BRK & FUEL FEED & EVAP EMIS PIPE (HOLDS (4) LINES) (W/TREE) | N (LAU, LF1) | 2010-2011 | 02 | | узнать цену | | 019 | 25938682 | CLIP, FUEL FEED & EVAP EMIS PIPE (5 WAY) (4.686) | N (LAU) | 2010-2011 | 02 | | узнать цену | | 020 | | SCREEN, F/TNK FIL PIPE (PART OF 24) | | 2010-2011 | | | | | 021 | | STRAP, EVAP EMIS HOSE (PART OF 24) | | 2010-2011 | | | | | 022 | 19207924 | SLEEVE, EVAP EMIS PIPE (PART OF 24) (1/2" X 3FT SECTIONS) (BULK REFLECTIVE THERMAL WRAP FOR BRAKE/FUEL/EMIS PIPES) (4.685) | N (LAU) | 2010-2011 | AR | | узнать цену | | 022 | 20947013 | SLEEVE, EVAP EMIS PIPE (PART OF 24) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 023 | 25938684 | CLIP, EVAP EMIS CNSTR VENT PIPE | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 024 | 20852704 | HOSE, EVAP EMIS CNSTR AIR INL (INCLS 10, 20-22) (ACDelco #215-697) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 025 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EVAP EMIS) | | 2010-2011 | 02 | | узнать цену |
|
|
