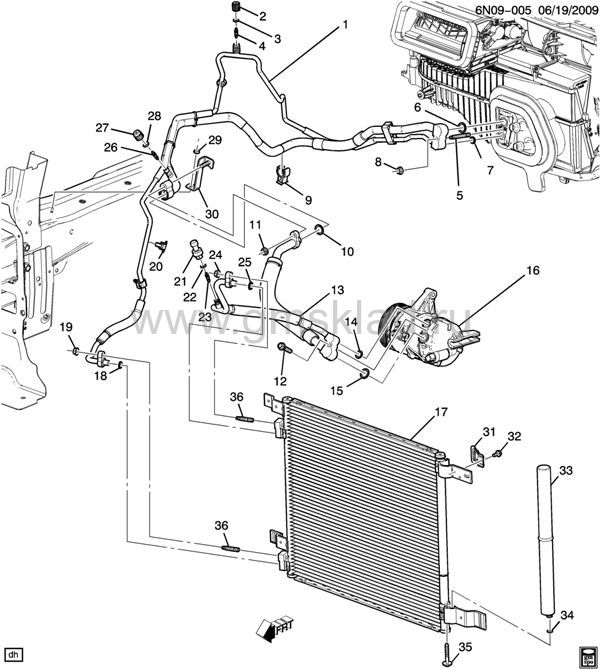

(6N09-005) 2010-2013 N СИСТЕМА ОХЛАЖДЕНИЯ КОНДИЦИОНЕРА
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15928568 | TUBE, A/C CNDSR & A/C EVPR (INCLS 2-4, 6, 7, 9, 18, 20, 26-28, 30) (ACDelco #15-34285) | N | 2010-2013 | 01 | | узнать цену | | 002 | 20827050 | CAP, A/C REFRIG HIGH PRESS SERV VLV (PART OF 1) (M10X1.25) (LONG THREADED, NON-TETHERED CAP) (ACDelco #15-34381) | N (LFW, LFX) | 2012-2013 | 01 | | узнать цену | | 003 | | SEAL, A/C REFRIG SERV VLV (O RING) (PART OF 1) | | 2010-2013 | | | | | 004 | 13122149 | VALVE, A/C REFRIG HIGH PRESS SERV (PART OF 1) (REFRIGERANT FILLER, M8) (ACDelco #13122149) | N | 2010-2013 | 01 | | узнать цену | | 005 | 11562518 | STUD, A/C EVPR TXV (M8X1.25X13.5/M8X1.25X57) | N | 2010-2013 | 01 | | узнать цену | | 006 | 02724966 | SEAL, A/C EVPR TUBE (25MM OD X 17MM ID, 3/4IN DIA) (PART OF 1) (ACDelco #15-31101) | N | 2010-2013 | 01 | | узнать цену | | 007 | 52477087 | SEAL, A/C EVPR TUBE (PART OF 1) (16MM OD X 8MM ID) (METAL/RUBBER) (ACDelco #15-31054) | N | 2010-2013 | 01 | | узнать цену | | 008 | 11514596 | NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C EVPR TUBE) (8.915) (ACDelco #11514596) | | 2010-2013 | 01 | | узнать цену | | 009 | 13268583 | CLIP, A/C EVPR HOSE (PART OF 1) (HOLDS 18 DIA LINE) | N | 2010-2013 | 01 | | узнать цену | | 010 | 02724966 | SEAL, A/C EVPR TUBE (25MM OD X 17MM ID, 3/4IN DIA) (PART OF 13) (ACDelco #15-31101) | N | 2010-2013 | 01 | | узнать цену | | 011 | 11514596 | NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (PART OF 13) (8.915) (ACDelco #11514596) | | 2010-2013 | 01 | | узнать цену | | 012 | 11515760 | BOLT, M8X1.25X40, 18 O.D., 22THD, 9.8, 7114M (A/C CNDSR & EVPR HOSE FTG) | | 2010-2013 | 01 | | узнать цену | | 013 | 22738110 | HOSE, A/C CNDSR & EVPR (INCLS 10, 11, 14, 15, 21-23, 25) (ACDelco #15-34389) | N (LFW, LFX) | 2012-2013 | 01 | | узнать цену | | 014 | 52474373 | SEAL, A/C CMPR TUBE (19MM OD X 11MM ID, 1/2IN DIA (PART OF 13)) (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (ACDelco #15-31055) | N | 2010-2013 | 01 | | узнать цену | | 015 | 02724966 | SEAL, A/C CMPR TUBE (PART OF 13) (5/8 SEAL WASHER) (ACDelco #15-31101) | N | 2010-2013 | 01 | | узнать цену | | 016 | | COMPRESSOR KIT, A/C (SEE GROUP 09.000 "A/C COMPRESSOR ASM" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2013 | | | | | 017 | 22872052 | CONDENSER, A/C (INCLS 31-36) (ACDelco #15-63744) | N | 2011-2013 | 01 | | узнать цену | | 018 | 52477087 | SEAL, A/C CNDSR (PART OF 1) (16MM OD X 8MM ID) (METAL/RUBBER) (9.222) (ACDelco #15-31054) | N | 2010-2013 | 01 | | узнать цену | | 019 | 11514596 | NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C CNDSR & EVPR HOSE FTG) (8.915) (ACDelco #11514596) | | 2010-2013 | 01 | | узнать цену | | 020 | 15796446 | CLIP, A/C CMPR & EVPR HOSE (PART OF 1) | N | 2010-2013 | 01 | | узнать цену | | 021 | 22678731 | SENSOR, A/C REFRIG PRESS (PART OF 13) (HIGH PRESSURE) (ALUMINUM W/O COATING) (ACDelco #15-50147) | N (LFW, LFX) | 2012-2013 | 01 | | узнать цену | | 022 | 20795535 | SEAL, A/C CMPR REFRIG PRESS SW (O RING) (PART OF 13) (ACDelco #15-34282) | N | 2010-2013 | 01 | | узнать цену | | 023 | 20795537 | VALVE, A/C REFRIG SERV (PART OF 13) (ACDelco #15-51262) | N | 2010-2013 | 01 | | узнать цену | | 024 | 11514596 | NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C EVPR HOSE FTG) (8.915) (ACDelco #11514596) | | 2010-2013 | 01 | | узнать цену | | 025 | 52474373 | SEAL, A/C CNDSR (PART OF 13) (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (9.222) (ACDelco #15-31055) | N | 2010-2013 | 01 | | узнать цену | | 026 | | VALVE, A/C REFRIG LOW PRESS SERV (PART OF 1) | | 2010-2013 | | | | | 027 | 20911239 | CAP, A/C REFRIG SERV VLV (PART OF 1) (M8X1.0) (SHORT THREADED, TETHERED CAP) (ACDelco #15-34400) | N | 2010-2013 | 02 | | узнать цену | | 028 | | SEAL, A/C REFRIG SERV VLV (O RING) (PART OF 1) | | 2010-2013 | | | | | 029 | 21011332 | NUT, HEX STAMPED TY DF FLG 14 (A/C EVPR HOSE CLIP) (8.921) | | 2010-2013 | 01 | | узнать цену | | 030 | 20795517 | BRACKET, A/C CNDSR & EVPR HOSE (PART OF 1) | N | 2010-2013 | 01 | | узнать цену | | 031 | | BRACKET, A/C RCVR & DEHYDR (PART OF 17) | | 2011-2013 | | | | | 032 | 20968485 | BOLT, A/C RCVR & DEHYDR BRKT (PART OF 17) | N | 2011-2013 | 01 | | узнать цену | | 033 | 22973656 | RECEIVER & DEHYDRATOR, A/C (PART OF 17) (ACDelco #15-11093) | N | 2012-2013 | 01 | | узнать цену | | 034 | 10399669 | SEAL, A/C RCVR & DEHYDR FTG (O RING) (PART OF 17) (ACDelco #15-33214) | N | 2010-2013 | 02 | | узнать цену | | 035 | 20831974 | BOLT, A/C RCVR & DEHYDR FTG (PART OF 17) | N | 2010-2013 | 01 | | узнать цену | | 036 | 20968487 | STUD, A/C CNDSR (PART OF 17) (M8X1.25X18/8X1.25X10) | N | 2010-2013 | 02 | | узнать цену |
|
|
