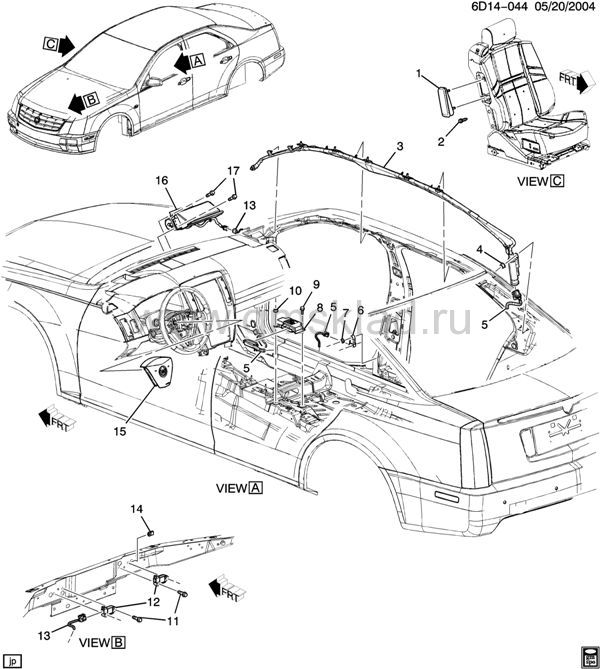

(6D14-044) 2005-2011 D29 СИСТЕМА ПОДУШЕК БЕЗОПАСНОСТИ
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15939003 | AIRBAG, D/SEAT SI (CASHMERE) | DW29 (01D) | 2010-2011 | 01 | | узнать цену | | 001 | 15939004 | AIRBAG, D/SEAT SI (EBONY) | DW29 (01G) | 2010-2011 | 01 | | узнать цену | | 001 | 15939005 | AIRBAG, D/SEAT SI (GRAY) | DW (02K) | 2010-2011 | 01 | | узнать цену | | 001 | 15939007 | AIRBAG, P/SEAT SI (CASHMERE) | DW29 (01D) | 2010-2011 | 01 | | узнать цену | | 001 | 15939008 | AIRBAG, P/SEAT SI (EBONY) | DW29 (EBS, ECR, 01G) (EXC AX4) | 2010-2011 | 01 | | узнать цену | | 001 | 15939009 | AIRBAG, P/SEAT SI (GRAY) | DW29 (02K) | 2010-2011 | 01 | | узнать цену | | 002 | 11514623 | BOLT, HEX W/CON WA, M6X1X20 (P/SEAT SI AIRBAG) | | 2005-2011 | 02 | | узнать цену | | 002 | 11514623 | BOLT, HEX W/CON WA, M6X1X20 (D/SEAT SI AIRBAG) | | 2005-2011 | 02 | | узнать цену | | 003 | 15929880 | AIRBAG, RF S/RL | D29 | 2005-2011 | 01 | L | узнать цену | | 003 | 15929881 | AIRBAG, RF S/RL | D29 | 2005-2011 | 01 | R | узнать цену | | 004 | 11609411 | NUT, R/RAIL AIRBAG (ATTACHES TO INNER PILLAR) (6 X 1, 5.07THK) (HEX-CHROME FREE FINISH) (8.917) | DW29 | 2005-2011 | 04 | | узнать цену | | 005 | | HARNESS, BODY WRG (SEE GROUP 13.000 "WIRING HARNESS/BODY" FOR DETAILED ILLUSTRATED VIEW) | | 2005-2011 | | | | | 006 | 25782701 | SENSOR, AIRBAG SI IMP | D29 | 2009-2011 | 02 | | узнать цену | | 007 | 11561645 | NUT, FRT S/D AIRBAG SI IMP (2 NUTS PER SIDE IMPACT SATELLITE) (2 NUTS PER SIDE IMPACT SATELLITE) (M6X1, 3.45THK, 13.5 OD) (CONTAINS CONDUCTIVE FINISH FOR ELECTRICAL GROUND) (8.915) | DW29 | 2010-2011 | 04 | | узнать цену | | 008 | 25816180 | MODULE, AIRBAG SEN & DIAGN | D29 | 2011-2011 | 01 | | узнать цену | | 009 | 11609989 | BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (AIRBAG DIAGN ENGY RESV MDL) | | 2005-2011 | 01 | | узнать цену | | 010 | 11561645 | NUT, AIRBAG DIAGN ENGY RESV MDL (SDM CASE GROUNDING ATTACHMENT) (M6X1, 3.45THK, 13.5 OD) (CONTAINS CONDUCTIVE FINISH FOR ELECTRICAL GROUND) (8.915) | D | 2006-2011 | 02 | | узнать цену | | 011 | 11519385 | BOLT, AIRBAG F/END DISCRM SEN (M6X1X33, 17 OD) (8.900) | DW | 2007-2011 | 04 | | узнать цену | | 012 | 25782720 | SENSOR, AIRBAG F/END DISCRM | DW | 2009-2011 | 02 | | узнать цену | | 013 | | HARNESS, I/P WRG (SEE GROUP 02.000 "WIRING HARNESS/INSTRUMENT PANEL" FOR DETAILED ILLUSTRATED VIEW) | | 2005-2011 | | | | | 014 | 11518121 | NUT, U, M6X1, MULTI THD, .5'-4.0' THK PNL (AIRBAG F/END DISCRM SEN) | | 2010-2011 | 04 | | узнать цену | | 015 | 20808933 | AIRBAG, STRG WHL (EBONY) | DW29 (4AL, 4BF, 4BH) | 2010-2011 | 01 | | узнать цену | | 015 | 20808933 | AIRBAG, STRG WHL (EBONY) (14.865) | DW29 (4AL, 4BF) | 2010-2011 | 01 | | узнать цену | | 015 | 20808934 | AIRBAG, STRG WHL (CASHMERE) | DW29 (4BG) | 2010-2011 | 01 | | узнать цену | | 015 | 20808934 | AIRBAG, STRG WHL (CASHMERE) (14.865) | DW29 (4BG) | 2010-2011 | 01 | | узнать цену | | 015 | 20808932 | AIRBAG, STRG WHL (COCOA) | DW29 (4AC) | 2010-2011 | 01 | | узнать цену | | 015 | 20808932 | AIRBAG, STRG WHL (COCOA) (14.865) | DW29 (4AC) | 2010-2011 | 01 | | узнать цену | | 016 | 15281906 | AIRBAG, I/P | DW29 | 2006-2011 | 01 | | узнать цену | | 017 | 11609538 | BOLT-HEX, W/FL WA, M7X1X25, 16 THD, 17 OD, 6202M, GMW3200, TAPTITE. (I/P AIRBAG) | | 2005-2011 | AR | | узнать цену |
|
|
