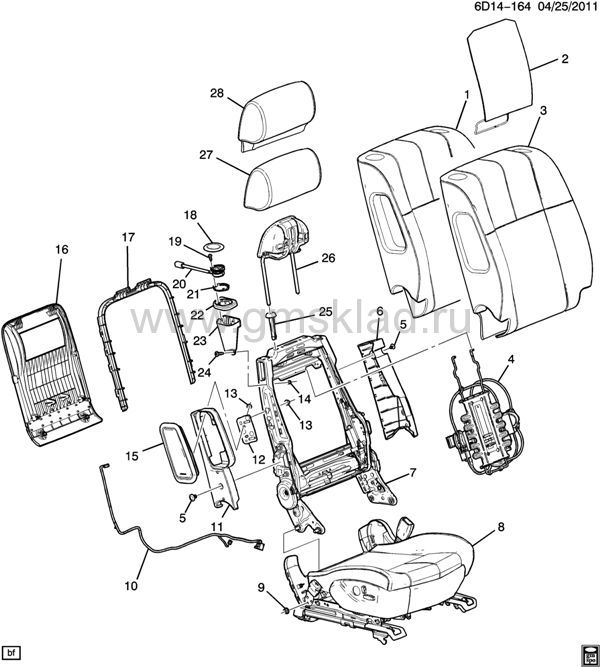

(6D14-164) 2010-2011 DW29 СИДЕНЬЕ В СБОРЕ/ПАССАЖИРА-СПИНКА (POWER LUMBAR AL2, EXC VENTED/HEATED KB6)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 88952679 | PAD, P/SEAT BK (W/SIAB) (W/O BOSE) | DW (EXC KB6) | 2005-2011 | 01 | | узнать цену | | 001 | 88994075 | PAD, P/SEAT BK (W/BOSE, SIAB) | DW (KA1) (EXC KB6) | 2005-2011 | 01 | | узнать цену | | 002 | | HEATER, P/SEAT BK (PART OF 3) | | 2010-2011 | | | | | 003 | 19122925 | COVER, P/SEAT BK (INCLS 2) (EBONY) | DW (AL2, AQ9, KA1, UX8, 01G) (EXC KB6) | 2010-2011 | 01 | | узнать цену | | 003 | 19122927 | COVER, P/SEAT BK (INCLS 2) (CASHMERE) | DW (AL2, AQ9, KA1, UX8, 01D) (EXC KB6) | 2010-2011 | 01 | | узнать цену | | 003 | 19122929 | COVER, P/SEAT BK (INCLS 2) (GRAY) | DW (AL2, AQ9, KA1, UX8, 02K) (EXC KB6) | 2010-2011 | 01 | | узнать цену | | 003 | 19122933 | COVER, P/SEAT BK (INCLS 2) (EBONY) | DW (AL2, AQ9, KA1, UY5, 01G) (EXC KB6) | 2010-2011 | 01 | | узнать цену | | 003 | 19122935 | COVER, P/SEAT BK (INCLS 2) (CASHMERE) | DW (AL2, AQ9, KA1, UY5, 01D) (EXC KB6) | 2010-2011 | 01 | | узнать цену | | 003 | 19122937 | COVER, P/SEAT BK (INCLS 2) (GRAY) | DW (AL2, AQ9, KA1, UY5, 02K) (EXC KB6) | 2010-2011 | 01 | | узнать цену | | 004 | 88993050 | LUMBAR SUB, P/SEAT | D29 | 2005-2011 | 01 | | узнать цену | | 005 | 00332364 | RETAINER, PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT BK FIN PNL (PUSH IN)) | | 2005-2011 | 08 | | узнать цену | | 006 | 88992768 | PANEL, P/SEAT BK FIN (FILLER) (INBOARD) | DW | 2005-2011 | 01 | L | узнать цену | | 007 | 88994921 | FRAME, P/SEAT BK (W/O MEMORY) (W/RECL MOTOR) | DW | 2010-2011 | 01 | | узнать цену | | 008 | | COVER, P/SEAT CUSH (SEE GROUP 14.000 "SEAT ASM/PASSENGER-CUSHION" FOR DETAILED ILLUSTRATED VIEW) | | 2005-2011 | | | | | 009 | 11517996 | NUT, P/SEAT BELT (RETR SI) (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) | DW | 2005-2011 | 01 | | узнать цену | | 010 | 15218855 | HARNESS, AIRBAG WRG | D29 (IL2, IL3, IL4) | 2006-2011 | 02 | | узнать цену | | 010 | 15218855 | HARNESS, AIRBAG WRG | DW29 (AQ9, EBS) | 2011-2011 | 01 | | узнать цену | | 011 | 88992020 | PANEL, P/SEAT BK FIN (FILLER) (OUTBOARD) | DW | 2005-2011 | 01 | R | узнать цену | | 012 | 88993161 | HOUSING, F/SEAT SI AIRBAG | DW | 2005-2011 | 01 | L | узнать цену | | 012 | 88993162 | HOUSING, F/SEAT SI AIRBAG | DW | 2005-2011 | 01 | R | узнать цену | | 013 | 11517068 | NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (P/SEAT) | | 2005-2011 | 06 | | узнать цену | | 014 | 11570654 | NUT, P/SEAT (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) | D29 | 2005-2011 | 02 | | узнать цену | | 015 | 15939007 | AIRBAG, P/SEAT SI (CASHMERE) | DW29 (01D) | 2010-2011 | 01 | | узнать цену | | 015 | 15939008 | AIRBAG, P/SEAT SI (EBONY) | DW29 (EBS, ECR, 01G) (EXC AX4) | 2010-2011 | 01 | | узнать цену | | 015 | 15939009 | AIRBAG, P/SEAT SI (GRAY) | DW29 (02K) | 2010-2011 | 01 | | узнать цену | | 016 | 88995213 | PANEL, P/SEAT BK FIN (CASHMERE) | DW (ECR, 01D) | 2010-2011 | 01 | | узнать цену | | 016 | 88995214 | PANEL, P/SEAT BK FIN (EBONY) | DW (ECR, 01G) | 2010-2011 | 01 | | узнать цену | | 016 | 88995265 | PANEL, P/SEAT BK FIN (GRAY) | DW (ECR, 02K) | 2010-2011 | 01 | | узнать цену | | 016 | 19123713 | PANEL, P/SEAT BK FIN (GRAY) (MATTE FINISH) | DW (EBS, 02K) | 2010-2011 | 01 | | узнать цену | | 016 | 19123714 | PANEL, P/SEAT BK FIN (EBONY) (MATTE FINISH) | DW (EBS, 01G) | 2010-2011 | 01 | | узнать цену | | 016 | 19123715 | PANEL, P/SEAT BK FIN (CASHMERE) (MATTE FINISH) | DW (EBS, 01D) | 2010-2011 | 01 | | узнать цену | | 017 | 88993281 | RETAINER, P/SEAT BK FIN PNL (TRIM RING) (14.924) | DW | 2005-2011 | 01 | | узнать цену | | 018 | 88994025 | GRILLE, P/SEAT H/RST SPKR (LT. GREY) | DW29 (02K) | 2010-2011 | 02 | | узнать цену | | 018 | 88994026 | GRILLE, P/SEAT H/RST SPKR (EBONY) | DW29 (01G) | 2010-2011 | 02 | | узнать цену | | 018 | 88994027 | GRILLE, P/SEAT H/RST SPKR (CASHMERE) | DW29 (01D) | 2010-2011 | 02 | | узнать цену | | 019 | 11519849 | SCREW, PAN HD W/FLAT WA, M4.2X1.41X20, 8.15 O.D., ABHL PT, STL, 6138M (P/SEAT H/RST SPKR HSG) | | 2005-2011 | 04 | | узнать цену | | 020 | 25773787 | SPEAKER, P/SEAT H/RST | DW29 | 2008-2011 | 02 | | узнать цену | | 021 | 88992600 | SUPPORT, P/SEAT H/RST SPKR HSG | D29 | 2008-2011 | 02 | | узнать цену | | 022 | 88992595 | HOUSING, P/SEAT H/RST SPKR (UPPER) | D29 | 2005-2011 | 01 | L | узнать цену | | 022 | 88992596 | HOUSING, P/SEAT H/RST SPKR (UPPER) | D29 | 2005-2011 | 01 | R | узнать цену | | 023 | 88992597 | HOUSING, P/SEAT H/RST SPKR (LOWER) | D29 | 2005-2011 | 01 | L | узнать цену | | 023 | 88992598 | HOUSING, P/SEAT H/RST SPKR (LOWER) | D29 | 2005-2011 | 01 | R | узнать цену | | 024 | 11516630 | SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (P/SEAT) | | 2005-2011 | 02 | | узнать цену | | 025 | 88994546 | GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) | DW (01G) | 2010-2011 | 01 | | узнать цену | | 025 | 88994608 | GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) (11.625) | DW (02K) | 2010-2011 | 01 | | узнать цену | | 025 | 88994609 | GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) (11.625) | DW (01D) | 2010-2011 | 01 | | узнать цену | | 025 | 88994611 | GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) | DW (02K) | 2010-2011 | 01 | | узнать цену | | 025 | 88994612 | GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) (11.625) | DW (01D) | 2010-2011 | 01 | | узнать цену | | 026 | 88897670 | SUPPORT, P/SEAT H/RST | D29 | 2008-2011 | 01 | | узнать цену | | 027 | 88952658 | PAD, P/SEAT H/RST | D29 | 2005-2011 | 01 | | узнать цену | | 028 | 19124934 | COVER, P/SEAT H/RST (GRAY) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 19122914) | DW (EBS, 02K) (2ND DES) | 2011-2011 | 01 | | узнать цену | | 028 | 19124935 | COVER, P/SEAT H/RST (EBONY) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 19122912) | DW (EBS, 01G) (2ND DES) | 2011-2011 | 01 | | узнать цену | | 028 | 19124936 | COVER, P/SEAT H/RST (CASHMERE) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 19122913) | DW (EBS, 01D) (2ND DES) | 2011-2011 | 01 | | узнать цену | | 028 | 19124938 | COVER, P/SEAT H/RST (GRAY) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 88995270) | DW (ECR, 02K) (EXC KA1) (2ND DES) | 2011-2011 | 01 | | узнать цену | | 028 | 19124939 | COVER, P/SEAT H/RST (EBONY) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 88995099) | DW (ECR, 01G) (EXC KA1) (2ND DES) | 2011-2011 | 01 | | узнать цену | | 028 | 19124940 | COVER, P/SEAT H/RST (CASHMERE) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 88995098) | DW (ECR, 01D) (EXC KA1) (2ND DES) | 2011-2011 | 01 | | узнать цену | | 028 | 19122912 | COVER, P/SEAT H/RST (EBONY) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124935) | DW (EBS, 01G) (1ST DES) | 2011-2011 | 01 | | узнать цену | | 028 | 19122913 | COVER, P/SEAT H/RST (CASHMERE) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124936) | DW (EBS, 01D) (1ST DES) | 2011-2011 | 01 | | узнать цену | | 028 | 19122914 | COVER, P/SEAT H/RST (GRAY) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124934) | DW (EBS, 02K) (1ST DES) | 2011-2011 | 01 | | узнать цену | | 028 | 88995098 | COVER, P/SEAT H/RST (CASHMERE) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124940) | DW (ECR, 01D) (EXC KA1) (1ST DES) | 2011-2011 | 01 | | узнать цену | | 028 | 88995099 | COVER, P/SEAT H/RST (EBONY) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124939) | DW (ECR, 01G) (EXC KA1) (1ST DES) | 2011-2011 | 01 | | узнать цену | | 028 | 88995270 | COVER, P/SEAT H/RST (GRAY) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124938) | DW (ECR, 02K) (1ST DES) | 2011-2011 | 01 | | узнать цену |
|
|
