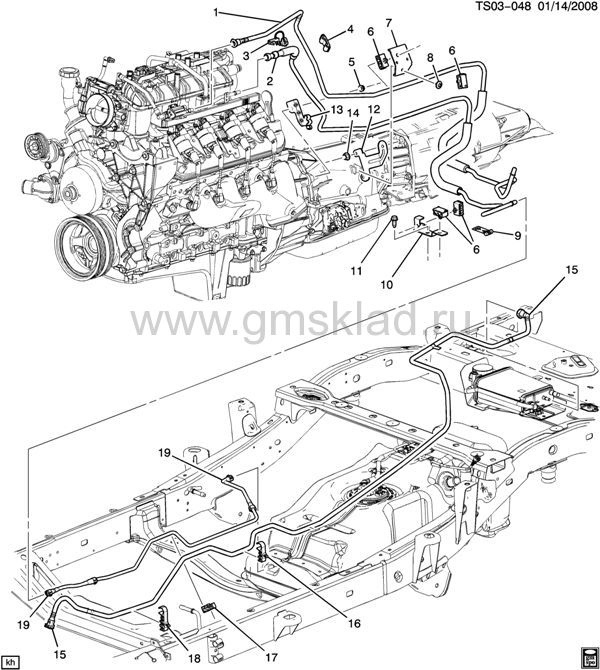

(TS03-048) 2010-2012 ST1(43-53) СИСТЕМА ПОДАЧИ ТОПЛИВА (LH9/5.3P)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 20791155 | PIPE, EVAP EMIS | ST1 (LH9, JJA, ZM6, Z71, Z85) | 2010-2012 | 01 | | узнать цену | | 002 | 25807376 | PIPE, FUEL FEED (INCLS 3, 9) | ST1 (LH9, JJA, ZM6, Z71, Z85) | 2010-2012 | 01 | | узнать цену | | 003 | 25654373 | CLIP, FUEL FEED & RTN HOSE (PART OF 2) (117.6X65.5 X12.4) (TETHERING SECONDARY CLIP 5/16" & 3/8") (STAINLESS STEEL) | ST1 (LH9, JJA, ZM6, Z71, Z85) | 2010-2012 | 01 | | узнать цену | | 004 | 22722309 | CLAMP, TRANS FLUID CLR HOSE | ST1 | 2009-2012 | 01 | | узнать цену | | 005 | 11514596 | NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL PIPE BRKT) (8.915) (ACDelco #11514596) | | 2009-2012 | 01 | | узнать цену | | 006 | 15080401 | CLIP, FUEL FEED & EVAP EMIS PIPE (2 LINE RETAINER LESS PUSH IN CLIP) (3.162) | ST1 (LH9) | 2010-2012 | AR | | узнать цену | | 006 | 15080401 | CLIP, FUEL FEED & EVAP EMIS PIPE (2 LINE RETAINER LESS PUSH IN CLIP) | ST1 (LH9) | 2010-2012 | AR | | узнать цену | | 007 | 15821005 | BRACKET, FUEL PIPE (H BOSS BRACKET) | T1 (LH9, JJA, ZM6, Z71, Z85) | 2010-2012 | 01 | | узнать цену | | 008 | 11514596 | NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL PIPE BRKT) (8.915) (ACDelco #11514596) | | 2009-2012 | 01 | | узнать цену | | 009 | | LABEL, FUEL FEED PIPE WRNG (PART OF 2) | | 2010-2012 | | | | | 010 | | BRACKET, FUEL PIPE | | 2010-2012 | | | | | 011 | 11570082 | BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (FUEL FEED & RTN PIPE & EVAP EMIS PIPE BRKT) (ACDelco #11570082) | | 2009-2012 | 01 | | узнать цену | | 012 | 15900490 | BRACKET, FUEL PIPE | ST1 (LH9, JJA) | 2010-2012 | 01 | | узнать цену | | 013 | 15821004 | BRACKET, FUEL PIPE (REAR ENGINE FACE) | T1 (LH9, JJA, ZM6, Z71, Z85) | 2010-2012 | 01 | | узнать цену | | 014 | 11514597 | NUT, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383) | | 2009-2012 | 05 | | узнать цену | | 015 | 15932309 | PIPE, EVAP EMIS (AT BRAKE PIPE) | T1 (LH9) | 2010-2012 | 01 | | узнать цену | | 016 | 11570973 | CLIP, FUEL FEED & EVAP EMIS PIPE (3.162) | ST1 (LH9, Z71, Z85) | 2010-2012 | 03 | | узнать цену | | 016 | 11570973 | CLIP, FUEL FEED & EVAP EMIS PIPE | ST1 (LH9, Z71, Z85) | 2010-2012 | 03 | | узнать цену | | 017 | 11570974 | CLIP, BRK & FUEL FEED & FUEL RTN & EVAP EMIS PIPE (BLACK) (63.7X23.2X12, NY 6/6) (HOLDS (2)3/16"NYCLAD & (2)3/8" ALUMINUM COATED TUBES) (4.686) | ST1 (LH9) | 2010-2012 | 03 | | узнать цену | | 017 | 11570974 | CLIP, BRK & FUEL FEED & FUEL RTN & EVAP EMIS PIPE (BLACK) (63.7X23.2X12, NY 6/6) (HOLDS (2)3/16"NYCLAD & (2)3/8" ALUMINUM COATED TUBES) | ST1 (LH9) | 2010-2012 | 03 | | узнать цену | | 018 | 11570972 | CLIP, FRT BRK & FUEL FEED FRT & EVAP EMIS PIPE (HOLDS (5) TUBES, FITS 8.5 DIA HOLE) | ST1 (LH9) | 2010-2012 | 02 | | узнать цену | | 019 | 15932308 | PIPE, FUEL FEED (AT BRAKE PIPE) | T1 (LH9) | 2010-2012 | 01 | | узнать цену |
|
|
