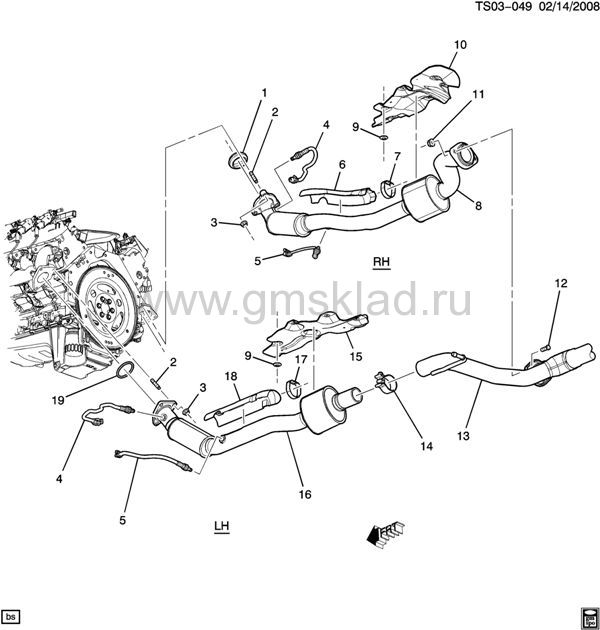

(TS03-049) 2010-2012 ST1(43-53) ВЫХЛОПНАЯ СИСТЕМА PART 1 FRONT (LH9/5.3P)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15035747 | SEAL, EXH MANIF PIPE | ST156 (43-53) (LH9, JJA) | 2010-2012 | 01 | R | узнать цену | | 002 | 11589264 | STUD, STRAIGHT, M10X1.5X30, M10X1.5X16, 57 TL, SS (EXH MANIF PIPE) | | 2009-2012 | 06 | | узнать цену | | 003 | 15032594 | NUT, EXH MANIF PIPE (HEX M10X1.5) (ATTACH EXH MANIFOLD PIPE) | ST1 | 2009-2012 | AR | | узнать цену | | 004 | 12589321 | SENSOR, HTD OXY (POSN 2) (ACDelco #213-3533) | ST1 (LH9) | 2010-2012 | 02 | | узнать цену | | 005 | 12609949 | SENSOR, HTD OXY (POSN 3) (ACDelco #213-4215) | ST1 (LH9) | 2010-2012 | 02 | | узнать цену | | 006 | | SHIELD, EXH TAIL PIPE HT (PART OF 8) | | 2010-2012 | | | | | 007 | | CLAMP, EXH TAIL PIPE H/SHLD (PART OF 8) | | 2010-2012 | | | | | 008 | 25844505 | CONVERTER, 3WAY CTLTC (W/EXH RR MANIF PIPE) (INCLS 6, 7) | ST156 (43-53) (LH9, JJA) | 2010-2012 | 01 | R | узнать цену | | 009 | 11588331 | NUT, HEX HD W/CON WA, M6X1, 5.7THK, 25 O.D., 9, GM6138M (CTLTC CONV H/SHLD) | | 2009-2012 | 10 | | узнать цену | | 010 | 20873448 | SHIELD, CTLTC CONV HT | ST1 | 2011-2012 | 01 | | узнать цену | | 011 | 15709703 | NUT, HEX 10X1.5THD, 21.8 OD SS (EXH FRT PIPE) | | 2009-2012 | 02 | | узнать цену | | 012 | 15028620 | STUD, EXH PIPE (PART OF 13) (M10X1.5X30MM) (BUTTON HEAD) | ST1 (LH9) | 2011-2012 | 02 | | узнать цену | | 013 | 25979694 | MUFFLER, EXH (W/EXH PIPE & TAIL PIPE) (SEE GROUP 03.000 "EXHAUST SYSTEM REAR" FOR DETAILED ILLUSTRATED VIEW) (INCLS 12, 14) | ST1 (LH9) | 2010-2012 | 01 | | узнать цену | | 014 | 15009437 | CLAMP, EXH PIPE (PART OF 13) (STAMPED 2.75" (69.85 MM) | ST1 (LH9) | 2010-2012 | 01 | | узнать цену | | 015 | 15836245 | SHIELD, EXH FRT PIPE HT | ST1 (LH9) | 2010-2012 | 01 | L | узнать цену | | 016 | 25844504 | CONVERTER, 3WAY CTLTC (W/EXH RR MANIF PIPE) (INCLS 17, 18) | ST156 (43-53) (LH9, JJA) | 2010-2012 | 01 | L | узнать цену | | 017 | | CLAMP, EXH TAIL PIPE H/SHLD (PART OF 16) | | 2010-2012 | | | | | 018 | | SHIELD, EXH TAIL PIPE HT (PART OF 16) | | 2010-2012 | | | | | 019 | 15077362 | SEAL, EXH MANIF PIPE | ST156 (43-53) (LH9, JJA) | 2010-2012 | 02 | L | узнать цену |
|
|
