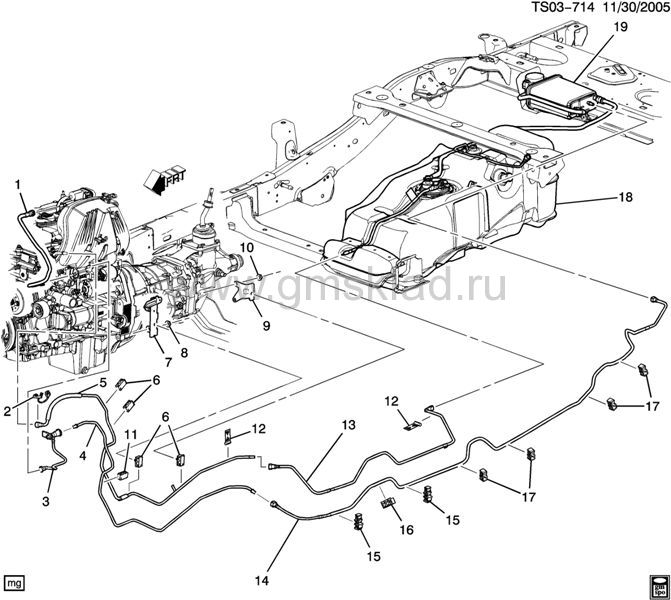

(TS03-714) 2008-2012 ST1(43-53) СИСТЕМА ПОДАЧИ ТОПЛИВА (LLV/2.9-9,LLR/3.7E)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 12577221 | TUBE, EVAP EMIS CNSTR PURGE | ST1 (LLR) | 2007-2012 | 01 | | узнать цену | | 001 | 12579840 | TUBE, EVAP EMIS CNSTR PURGE | ST1 (LLV) | 2007-2012 | 01 | | узнать цену | | 002 | 15155602 | RETAINER, FUEL FEED HOSE CONN (PART OF 5) (W/SECONDARY CLIP 5/16 AND 3/8") | ST1 (LLV, LLR, JJA) | 2010-2012 | 01 | | узнать цену | | 003 | 15806959 | HOSE, EVAP EMIS (AT PIPE) (INCLS CONN) | ST1 (LLV, JJA) | 2007-2012 | 01 | | узнать цену | | 003 | 15806960 | HOSE, EVAP EMIS (AT PIPE) (INCLS CONN) | ST1 (LLR, JJA) | 2007-2012 | 01 | | узнать цену | | 004 | 15138999 | PIPE, EVAP EMIS | ST1 (LLV, JJA) | 2007-2012 | 01 | | узнать цену | | 004 | 15139013 | PIPE, EVAP EMIS | ST1 (LLR, JJA) | 2007-2012 | 01 | | узнать цену | | 005 | 15895403 | PIPE, FUEL FEED FRT (INCLS 2) | ST1 (LLV, JJA) | 2009-2012 | 01 | | узнать цену | | 005 | 15895404 | PIPE, FUEL FEED FRT (INCLS 2) | ST1 (LLR, JJA) | 2009-2012 | 01 | | узнать цену | | 006 | 15080400 | CLIP, FUEL FEED & EVAP EMIS PIPE (TWO TUBE) | T1 | 2006-2012 | 01 | | узнать цену | | 006 | 15080400 | CLIP, FUEL FEED & EVAP EMIS PIPE (TWO TUBE) (3.162) | T1 | 2006-2012 | 01 | | узнать цену | | 007 | 15131554 | BRACKET, FUEL PIPE | ST1 (LLR, LLV, JJA) | 2009-2012 | 01 | | узнать цену | | 008 | 11514596 | NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL PIPE BRKT) (8.915) (ACDelco #11514596) | | 2006-2012 | 02 | | узнать цену | | 009 | 15080373 | BRACKET, FUEL PIPE | ST1 (LLR, LLV, MA5, JJA) | 2009-2012 | 01 | | узнать цену | | 010 | 11514596 | NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL FEED FRT PIPE) (8.915) (ACDelco #11514596) | | 2006-2012 | 02 | | узнать цену | | 011 | 15080402 | CLIP, FUEL FEED & EVAP EMIS PIPE (2 LINE RETAINER WITH PUSH IN CLIP) | T1 | 2006-2012 | 01 | | узнать цену | | 011 | 15080402 | CLIP, FUEL FEED & EVAP EMIS PIPE (2 LINE RETAINER WITH PUSH IN CLIP) (3.162) | T1 | 2006-2012 | 01 | | узнать цену | | 012 | | LABEL, FUEL FEED PIPE WRNG | | 2006-2012 | | | | | 012 | | LABEL, FUEL FEED PIPE WRNG | | 2008-2012 | | | | | 013 | 25915450 | PIPE, FUEL FEED | T156 (LLR, LLV) | 2009-2012 | 01 | | узнать цену | | 014 | 15816052 | PIPE, EVAP EMIS | T1 (43-53) (LLR, LLV) | 2008-2012 | 01 | | узнать цену | | 015 | 15139007 | CLIP, FUEL FEED & EVAP EMIS PIPE (HOLDS FOUR LINES) | T1 | 2006-2012 | 02 | | узнать цену | | 015 | 15139007 | CLIP, FUEL FEED & EVAP EMIS PIPE (HOLDS FOUR LINES) (3.162) | T1 | 2006-2012 | 02 | | узнать цену | | 016 | 15139021 | CLIP, BRK & FUEL FEED & FUEL RTN & EVAP EMIS PIPE (HOLDS (3) TUBES) | ST1 (LLR, LLV) | 2008-2012 | 01 | | узнать цену | | 016 | 15139021 | CLIP, BRK & FUEL FEED & FUEL RTN & EVAP EMIS PIPE (HOLDS (3) TUBES) (4.686) | ST1 (LLR, LLV) | 2008-2012 | 01 | | узнать цену | | 017 | 15139006 | CLIP, FUEL FEED & EVAP EMIS PIPE (HOLDS THREE LINES) | T1 | 2006-2012 | 04 | | узнать цену | | 017 | 15139006 | CLIP, FUEL FEED & EVAP EMIS PIPE (HOLDS THREE LINES) (3.162) | T1 | 2006-2012 | 04 | | узнать цену | | 018 | | TANK, FUEL (SEE GROUP 03.000 "FUEL TANK MOUNTING & FILLER PIPE" FOR DETAILED ILLUSTRATED VIEW) (HOLDS THREE LINES) (3.162) | | 2006-2012 | | | | | 019 | | CANISTER, EVAP EMIS (SEE GROUP 03.000 "VAPOR CANISTER LINES & CANISTER" FOR DETAILED ILLUSTRATED VIEW) | | 2006-2012 | | | |
|
|
