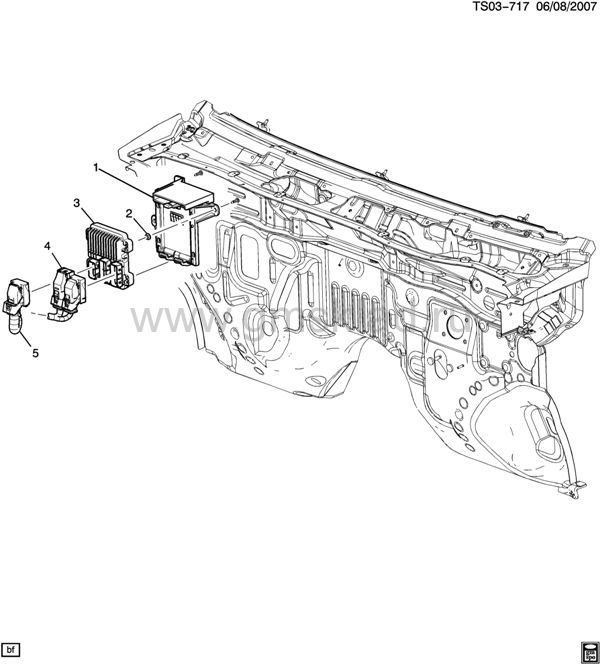

(TS03-717) 2008-2012 ST КОНТРОЛЛЕР ЭСУД И ЖГУТ ПРОВОДОВ
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | 15798977 | BRACKET, ECM | ST1 | 2008-2012 | 01 | узнать цену | |
| 002 | 11561645 | NUT, HFH, M6X1X6.45, 13.5 OD, 10 STL, GMW3200 (ECM BRKT) | 2008-2012 | 03 | узнать цену | ||
| 003 | 12633264 | MODULE, ENG CONT (W/ 2ND MPU) & (W/O CALN) (NO START E67) (ACDelco #12633264) | ST1 (LH9) | 2010-2012 | 01 | узнать цену | |
| 004 | HARNESS, I/P WRG (SEE GROUP 02.000 "WIRING HARNESS/ENGINE" FOR DETAILED ILLUSTRATED VIEW) | 2008-2012 | |||||
| 005 | HARNESS, BODY WRG (SEE GROUP 02.000 "WIRING HARNESS/BODY" FOR DETAILED ILLUSTRATED VIEW) | 2008-2012 |
