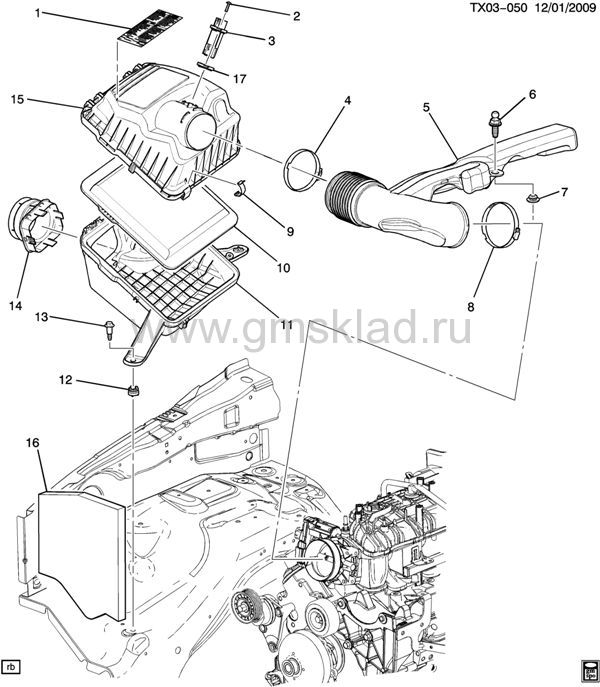

(TX03-050) 2010-2012 ST1(43-53) ВПУСКНАЯ ВОЗДУШНАЯ СИСТЕМА (LH9/5.3P)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 94749611 | LABEL, A/C REFRIG WRNG (PART OF 11, 15) | ST1 | 2009-2012 | 01 | | узнать цену | | 002 | 88967326 | BOLT, MASS AIRFLOW SEN (3.403) | ST1 | 2009-2012 | 02 | | узнать цену | | 003 | 15865791 | SENSOR, MASS AIRFLOW (INCLS 17) (5 PIN) (ACDelco #213-4222) | ST1 | 2009-2012 | 01 | | узнать цену | | 004 | | CLAMP, A/CL OTLT DUCT (PART OF 5) | | 2010-2012 | | | | | 005 | 25897650 | DUCT, A/CL OTLT (W/RESO) (INCLS 4, 7, 8) | ST1 (LH9) | 2010-2012 | 01 | | узнать цену | | 006 | 11562129 | BOLT, A/CL OTLT DUCT | ST156 (43-53) (LH9, JJA) | 2010-2012 | 01 | | узнать цену | | 007 | | INSULATOR, A/CL OTLT DUCT (PART OF 5) | | 2010-2012 | | | | | 008 | | CLAMP, A/CL OTLT FRT DUCT (PART OF 5) | | 2010-2012 | | | | | 009 | 15942431 | CLIP, A/CL HSG (PART OF 11) | ST1 (LH9) | 2010-2012 | 02 | | узнать цену | | 010 | 15942429 | ELEMENT, A/CL (PART OF 11) (ACDelco #A3095C) | ST1 (LH9) | 2010-2012 | 01 | | узнать цену | | 011 | 25861129 | CLEANER, AIR (INCLS ELEMENT, BOLT, LABEL, CLIP) (INCLS 1, 9, 10, 12, 13, 15, 17) | ST1 (LH9) | 2010-2012 | 01 | | узнать цену | | 012 | | INSULATOR, A/CL (PART OF 11) | | 2010-2012 | | | | | 013 | 15290376 | BOLT, A/CL HSG (PART OF 11) | ST1 (LH9) | 2010-2012 | 02 | | узнать цену | | 014 | 25872521 | SNORKEL, A/CL | ST1 (LH9) | 2010-2012 | 01 | | узнать цену | | 015 | 25813589 | COVER, A/CL HSG (INCLS 1) (PART OF 11) | ST1 (43-53) (LH9) | 2010-2012 | 01 | | узнать цену | | 016 | 25926983 | SEAL, A/CL | ST156 (43-53) (LH9) | 2010-2012 | 01 | | узнать цену | | 017 | 15813321 | GASKET, MASS AIRFLOW SEN (PART OF 3, 11) (RECTANGULAR) (GASKET IS POA TO MAF SENSOR) (ACDelco #15813321) | ST1 | 2009-2012 | 01 | | узнать цену |
|
|
