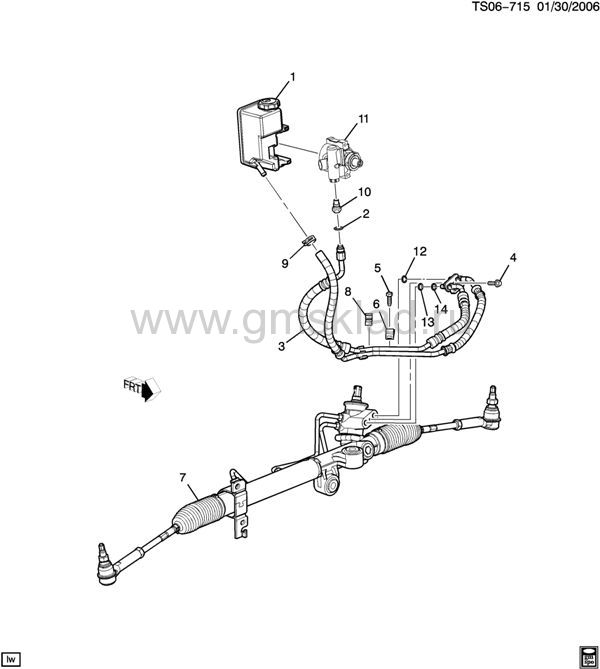

(TS06-715) 2008-2012 ST МАГИСТРАЛИ ГИДРОУСИЛИТЕЛЯ (LLV/2.9-9,LLR/3.7E)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | | RESERVOIR, P/S FLUID (SEE GROUP 06.000 "STEERING PUMP ASM" FOR DETAILED ILLUSTRATED VIEW) | | 2006-2012 | | | | | 002 | 26094421 | SEAL, P/S PUMP RSVR (O RING) (PART OF 11) (14.5MM I.D.) | ST1 (LLR, LLV) | 2008-2012 | 01 | | узнать цену | | 003 | 20934195 | HOSE, P/S GR INL & OTLT (INCLS 4-6, 8, 9, 12-14) | T1 (LLR) | 2007-2012 | 01 | | узнать цену | | 003 | 20934197 | HOSE, P/S GR INL & OTLT (INCLS 4-6, 8, 9, 12-14) | T1 (LLV) | 2007-2012 | 01 | | узнать цену | | 004 | | BOLT, P/S GR INL & OTLT PIPE RET (PART OF 3) | | 2008-2012 | | | | | 005 | 11517518 | BOLT, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (PART OF 3) (ACDelco #11517518) | | 2006-2012 | 02 | | узнать цену | | 006 | | BRACKET, P/S GR INL & OTLT PIPE CLIP (PART OF 3) | | 2008-2012 | | | | | 007 | | GEAR, STRG (W/STRG LNKG TIE ROD) (SEE GROUP 06.000 "STEERING GEAR ASSEMBLY" FOR DETAILED ILLUSTRATED VIEW) | | 2006-2012 | | | | | 008 | | CLIP, P/S GR INL & OTLT PIPE (PART OF 3) | | 2008-2012 | | | | | 009 | | CLAMP, P/S PUMP INL HOSE (PART OF 3) | | 2008-2012 | | | | | 010 | | FITTING, P/S PUMP (PART OF 11) (*KIT1) | | 2008-2012 | | | | | 011 | 88965491 | PUMP KIT, P/S (SEE GROUP 06.000 "STEERING PUMP ASM" FOR DETAILED ILLUSTRATED VIEW) (INCLS 2, 10) (LESS RESERVOIR) (ACDelco #88965491) | ST1 (LLR, LLV) | 2009-2012 | 01 | | узнать цену | | 012 | 15869847 | SEAL, P/S GR INL PIPE (O RING) (PART OF 3) | ST1 | 2006-2012 | 01 | | узнать цену | | 013 | 19122174 | SEAL, P/S GR OTLT HOSE (O-RING) (PART OF 3) | ST1 | 2006-2012 | 01 | | узнать цену | | 014 | 15869848 | GASKET, P/S GR INL HOSE FTG (PART OF 3) | ST1 | 2006-2012 | 01 | | узнать цену | | K01 | 88967195 | VALVE KIT, P/S PUMP FLOW CONT (INCLS 10) | ST1 (LLR, LLV) | 2009-2012 | 01 | | узнать цену |
|
|
